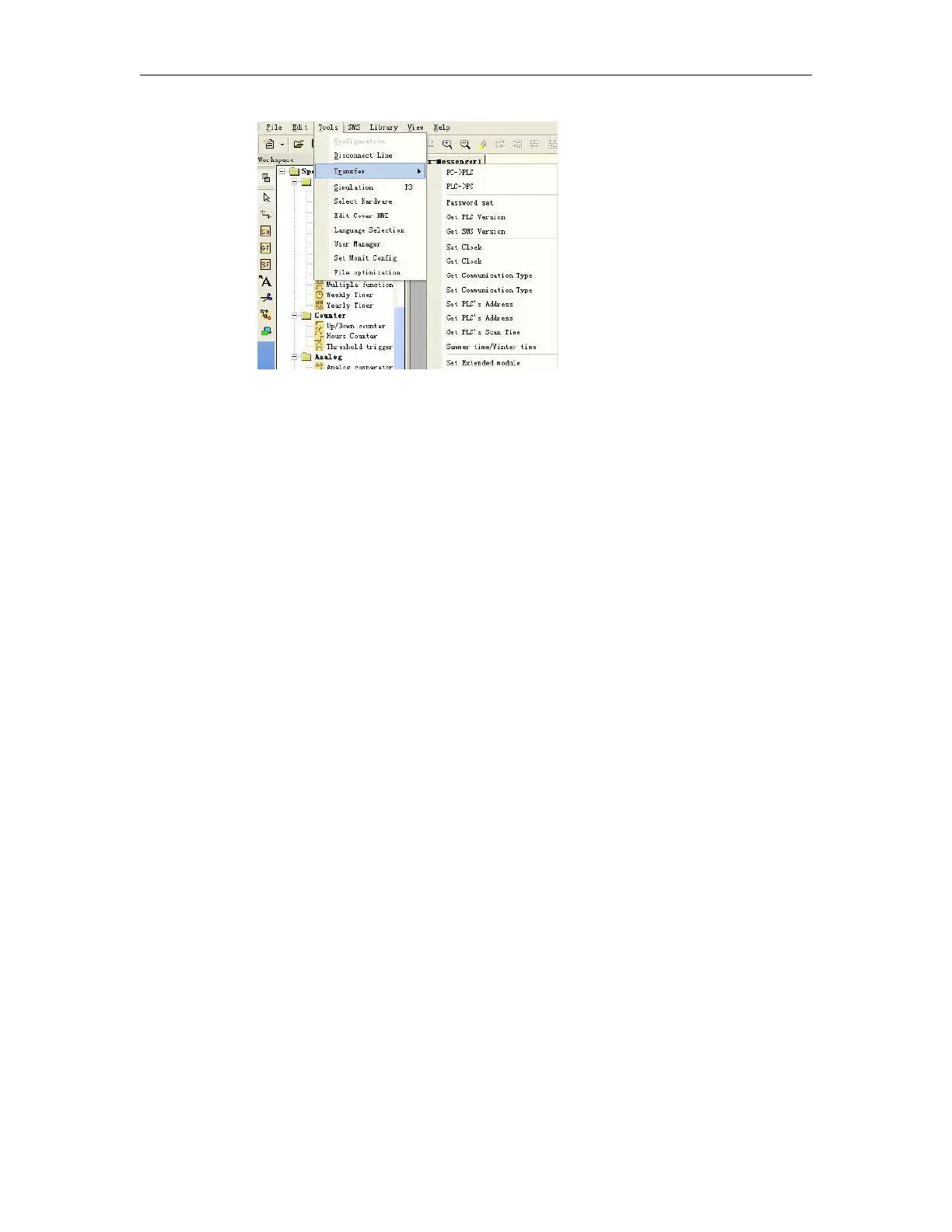

Fig. 10.3 Tools Menu
※ Configuration: Select and open the Com port.
※ Disconnect Line: Cancel the connection of PC and x-Messenger.
※ Transfer: Transfer the following data between PC and x-Messenger.
PC-> PLC: Download the program to x-Messenger
PLC->PC: Upload the program from x-Messenger.
Password set: Set Password protection to x-Messenger
Get PLC Version: Get the current x-Messenger hardware version
Set Clock: Set RTC for x-Messenger
Get Clock: Get RTC from x-Messenger
Get Communication Type: Get current communication type
Set Communication Type: Set communication type for current x-Messenger
Set PLC’s address: Set the current x-Messenger address
Get PLC’s address: Get the address of current x-Messenger
Get PLC’s scan time: Get the scan period of the x-Messenger for current program
Summer time/Winter time: Activate/disable the conversion of the summer/ winter time
Set Extended module: Activate/disable the expansion port of x-Messenger
※Simulation: simulate the x-Messenger program.
※ Select Hardware: Select the model of x-Messenger for programming.
※ Edit Cover HMI: Customers are allowed to edit the first page of the HMI by this menu.
※ User manger: File management, program can be protected with different priorities.
※ Set monit config: select elements for monitoring or saving with Excel file.
6.8.1.4 SMS
The instruction is mainly used for SMS items. The pull down menu is as the following:
