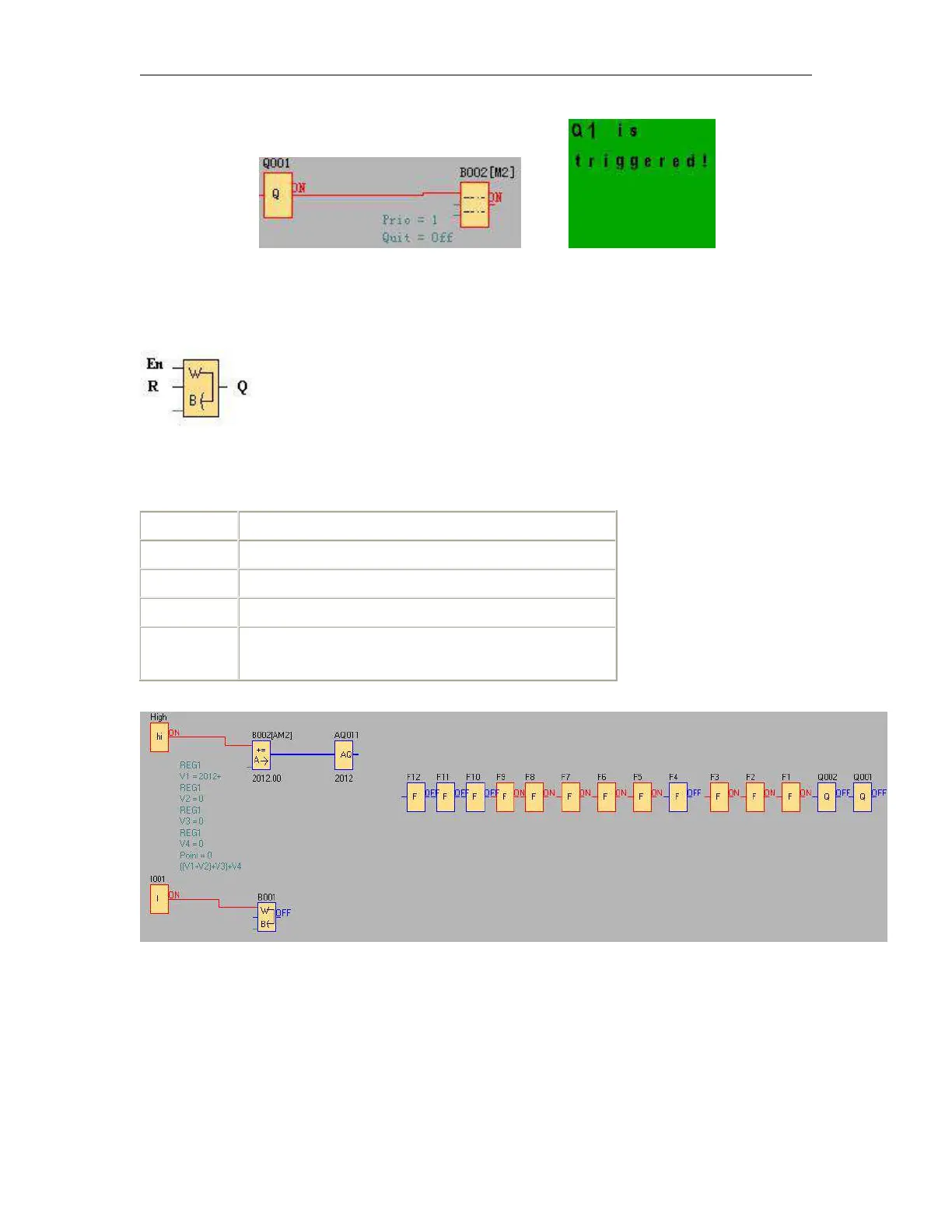

6.5.39 Word to Bit
Short description
This special function is used to transfer the word type data (AI, AF or AQ) to 16 bit status (0 or 1)(F or Q)
Connection
Description
Input En
Enable this function.
Input R
Reset output Q with a signal at input R (Reset).
Parameter
Retentivity set (on) = the status is retentive in memory.
Output Q
Q is switched on with a signal at input En, and switched off
with a low signal at input En.
Example1:
