Parameters
From the Parameters window, you can select the state of the output according to
the result of the comparison:
ON in the zone: the output will be active if the input value is between the two
setpoints (MIN and MAX),
OFF in the zone: the output will be inactive if the input value is between the two
setpoints (MIN and MAX).
If MINI is greater than MAXI, then for:
ON in the zone: the output always remains inactive,
OFF in the zone: the output always remains active.
Comparison Function

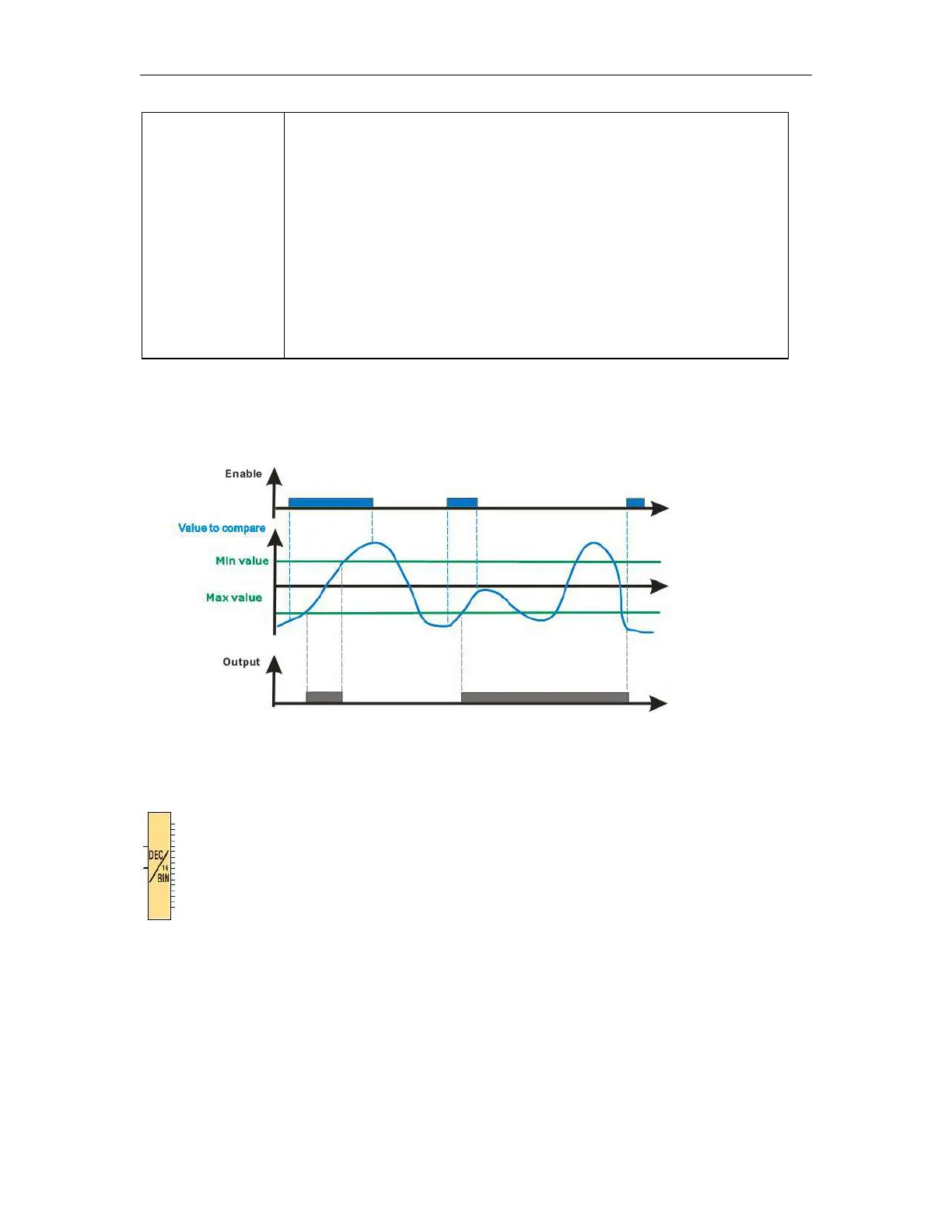

The diagram below shows the different states the output can take, depending on the input value to compare
and the enable input:
6.5.55 Conversion Word bits
Short Description
When the "En" is high, The DEC/BIN function breaks down an integer (16-bit) type input into 16 bit-type
outputs.
Illustration:
