Analog multiplexer: AQ
Analog ramp: AQ
Analog math: AQ
PI controller:AQ
Data latching relay: AQ
Up/Down counter: Cnt
You select the required function via the block number. Time-base can be adjusted.
The value of ＂T＂ can be set/modified in parameter mode. For information on the validity and accuracy of
the time base, refer to the x-Messenger time-base list as follows:
Valid ranges of the time-base, if T = parameter

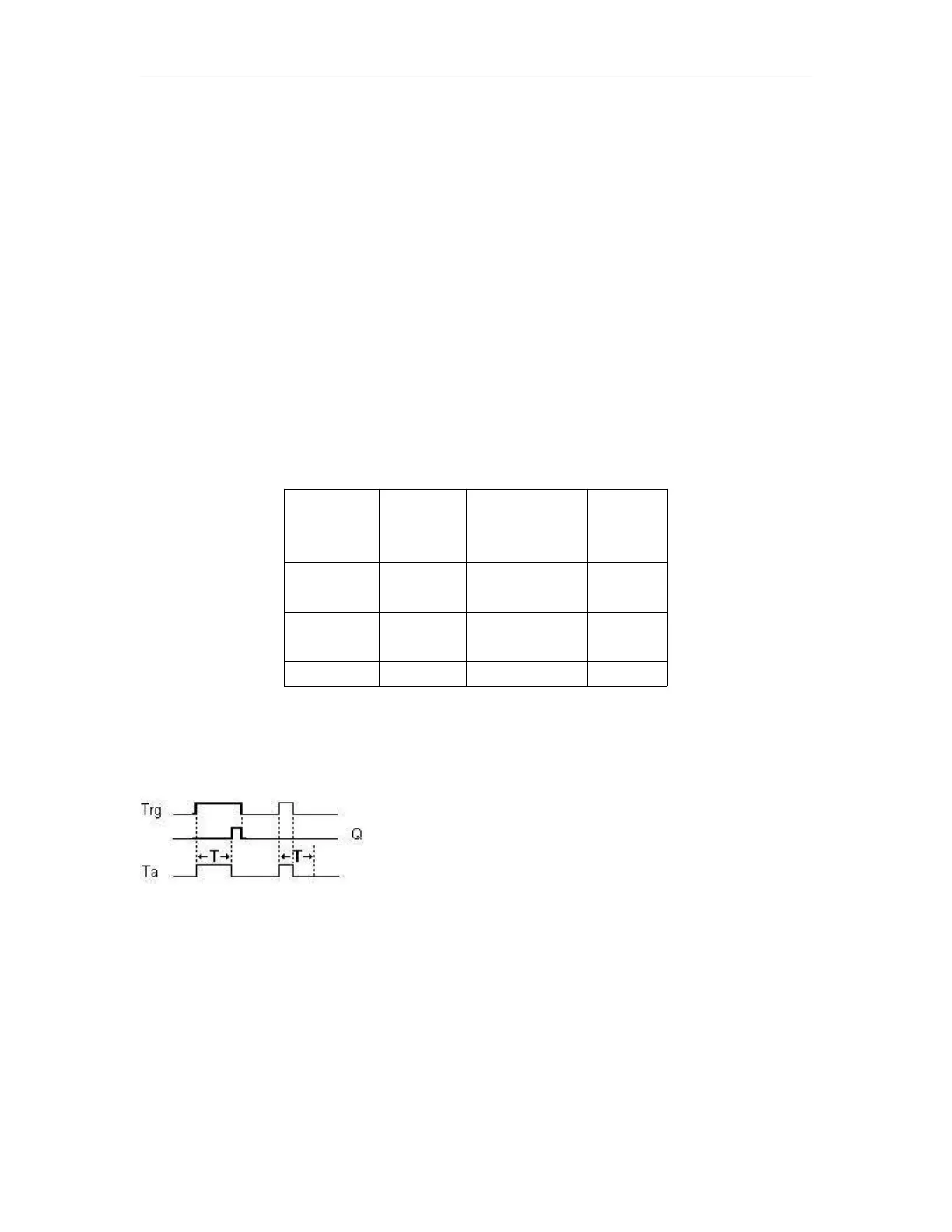

Timing diagram
Description of the function
The time Ta (the current time in x-Messenger) is triggered with the 0 to 1 transition at input Trg.
If the status at input Trg stays 1 at least for the duration of the configured time T, the output is set to 1 when
this time has expired (the on signal of the output follows the on signal of the input with delay).
The time is reset if the status at input Trg changes to 0 again before the time T has expired.
The output is reset to 0 when input Trg is 0.
