From the "Blocks" area, select the block whose parameters you want to output.
Drag and drop the parameters required from the "Block parameters" to the "Messages" area. You may also
use the "Insert" button to do so.
In the "Mess
ages" area, you can add parameter data as required.
Particular characteristics to be noted when configuring

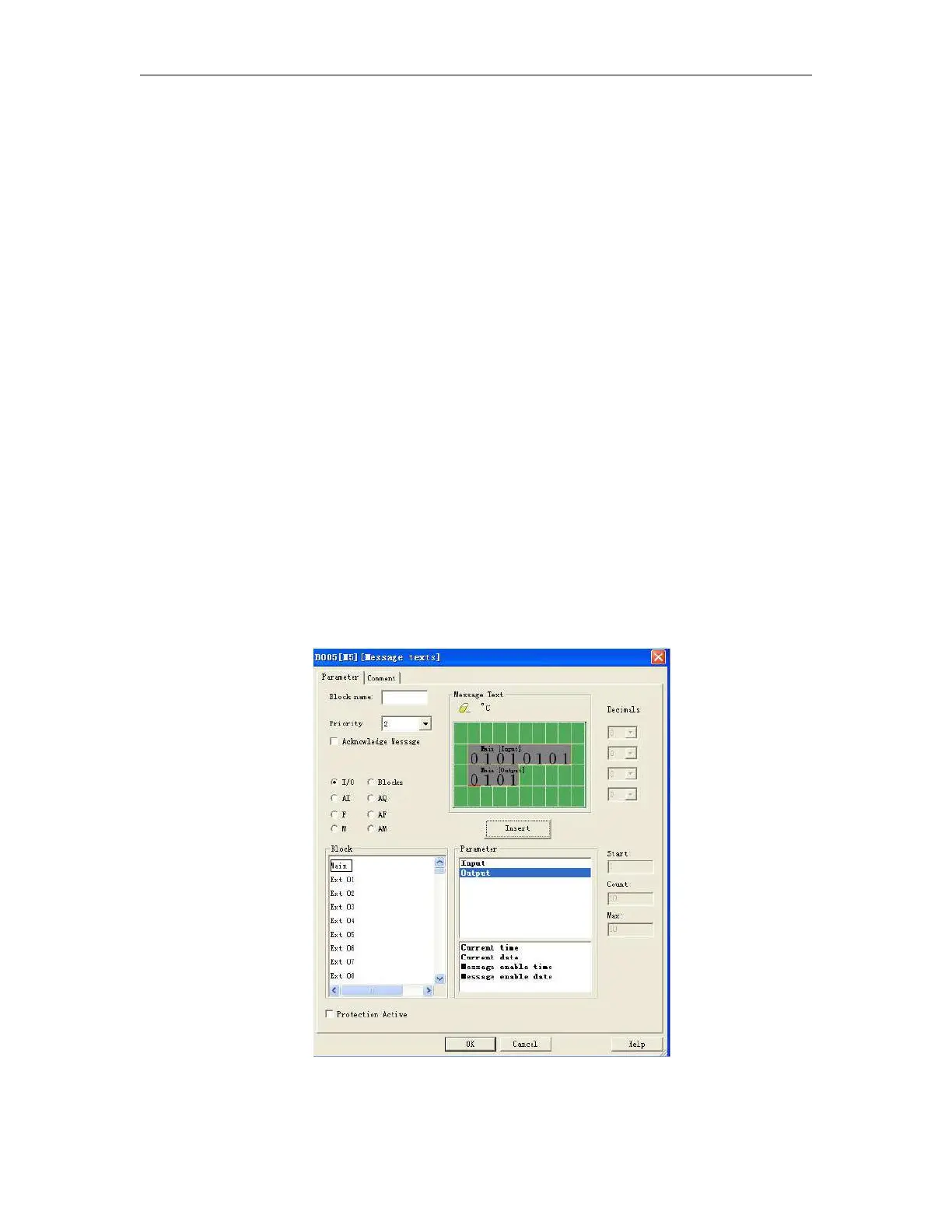

The message text can be configured in the block properties dialog. You can enter up to 4 lines for each
message text (the text display of the x-Messenger has 4 x 16 characters) and set the priority. You can move
to the next line using the cursor keys or the mouse. Hit the [ENTER] key to confirm all your entries in the
block properties dialog and to close the dialog.
You may also enter the actual values of other blocks in the text lines. To do so, select the relevant block from
the Block dialog. A Parameter dialog opens to display a list of all parameters available for the selected block.
The block parameter you select in this dialog is written to the selected text line. The actual parameter value
is now included when you call the message text.
Set the "Acknowledge message" attribute to specify whether a message is be acknowledged before it is
closed.
