Short description
This special function saves the process variable of an analog input to memory, and returns it at the analog
output.
Save the Ax to memory and return it at the analog output with a
signal at input S (Set).
Input the analog signal to be amplified at input Ax. Use the
analog inputs, the block number of a function with analog output,
or the analog outputs.
Reset analog output AQ to 0 with a signal at input R (Reset).
analog Output AQ is reset if S and R are both set (reset has
priority over set).
Analog output
Value range for AQ: -32768...+32767
Example

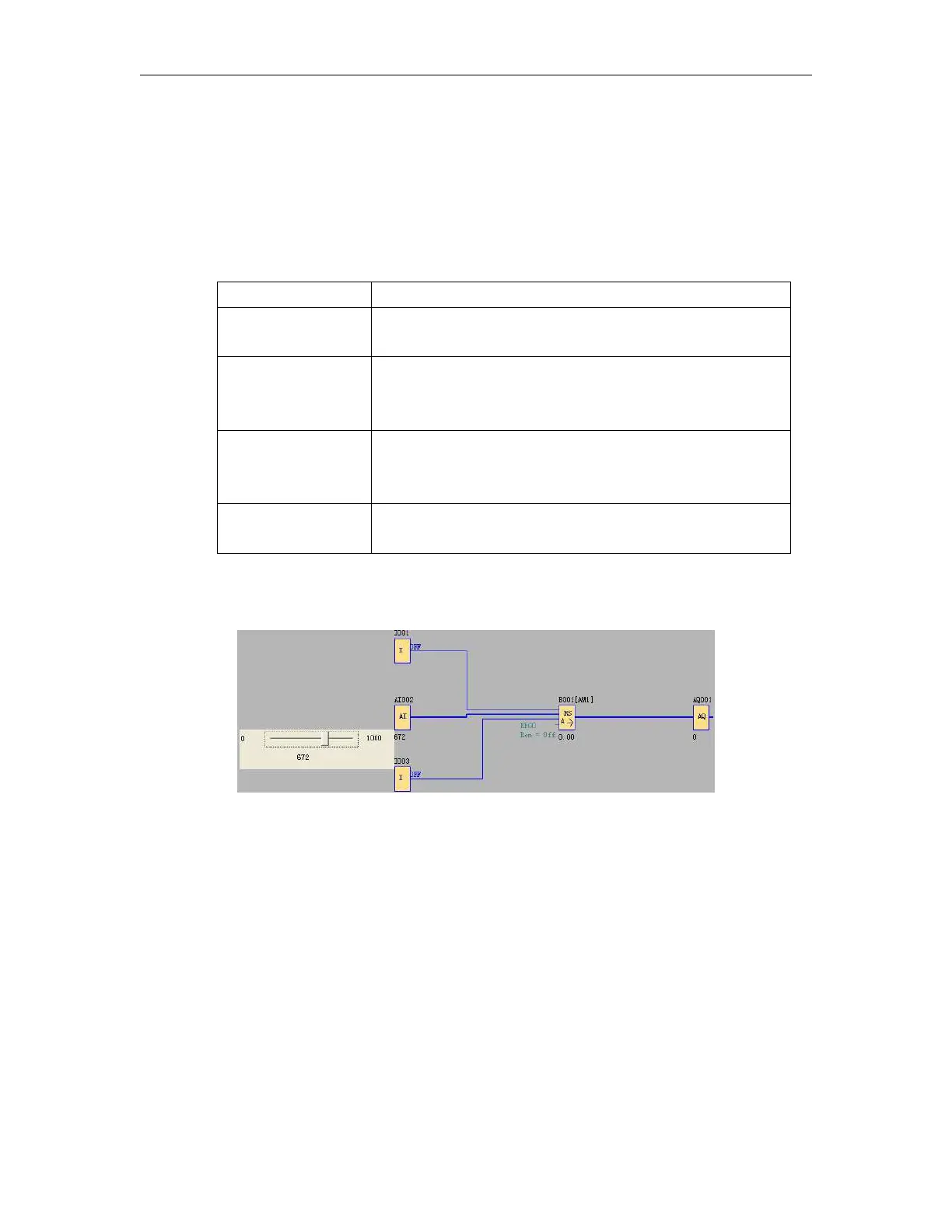

When I1 turn to HIGH, the value of AI2 will be saved to memory and return it to AQ1
as follows:
To Next Page
