EXAMPLE:

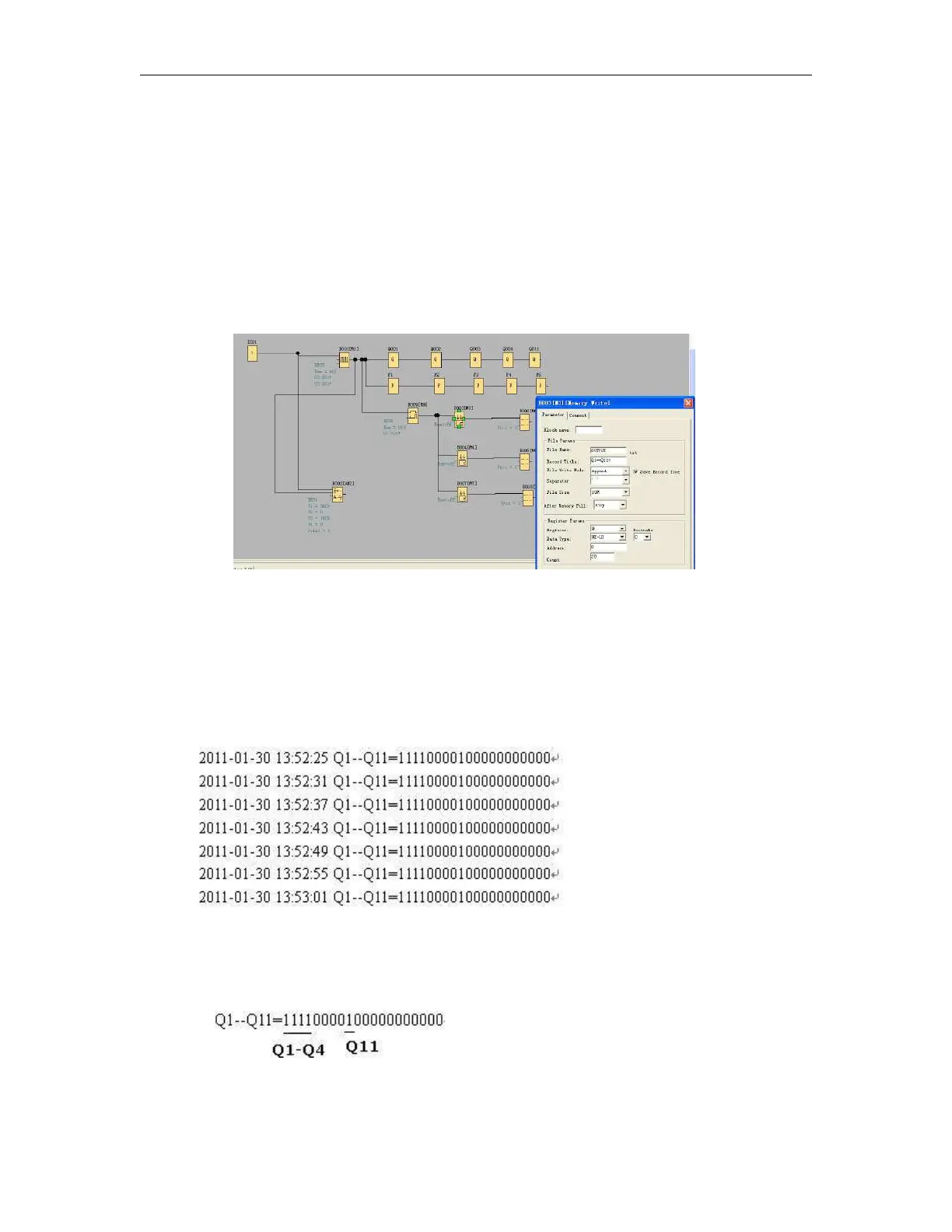

Please refer the property dialog box of B003, it can record the output status .The start address is from 0 and
it must record the 20 outputs with continuous addresses.
And the record file shows below:
Per the program, every 6 seconds the record will do once, and the Q1, Q2, Q3, Q4, Q11 will be all “ON”. You
can see the record file and you’ll see the recording time and the status of the output.
