Rievtech x-Messenger Series - Page 340

340
Connection
Description
En
Enable the function block if a HI level at En input pin and if a trigger from HI to
LOW, the function would be disabled.
Parameter
Channel: RS232
RS485
Ethernet/WIFI
Timeout:1—100s
Monitor type: TX
RX
TX+RX
Output
When a HI level at the En pin and the timeout is reached the output will be HI,
and it will be reset when the En is switched.

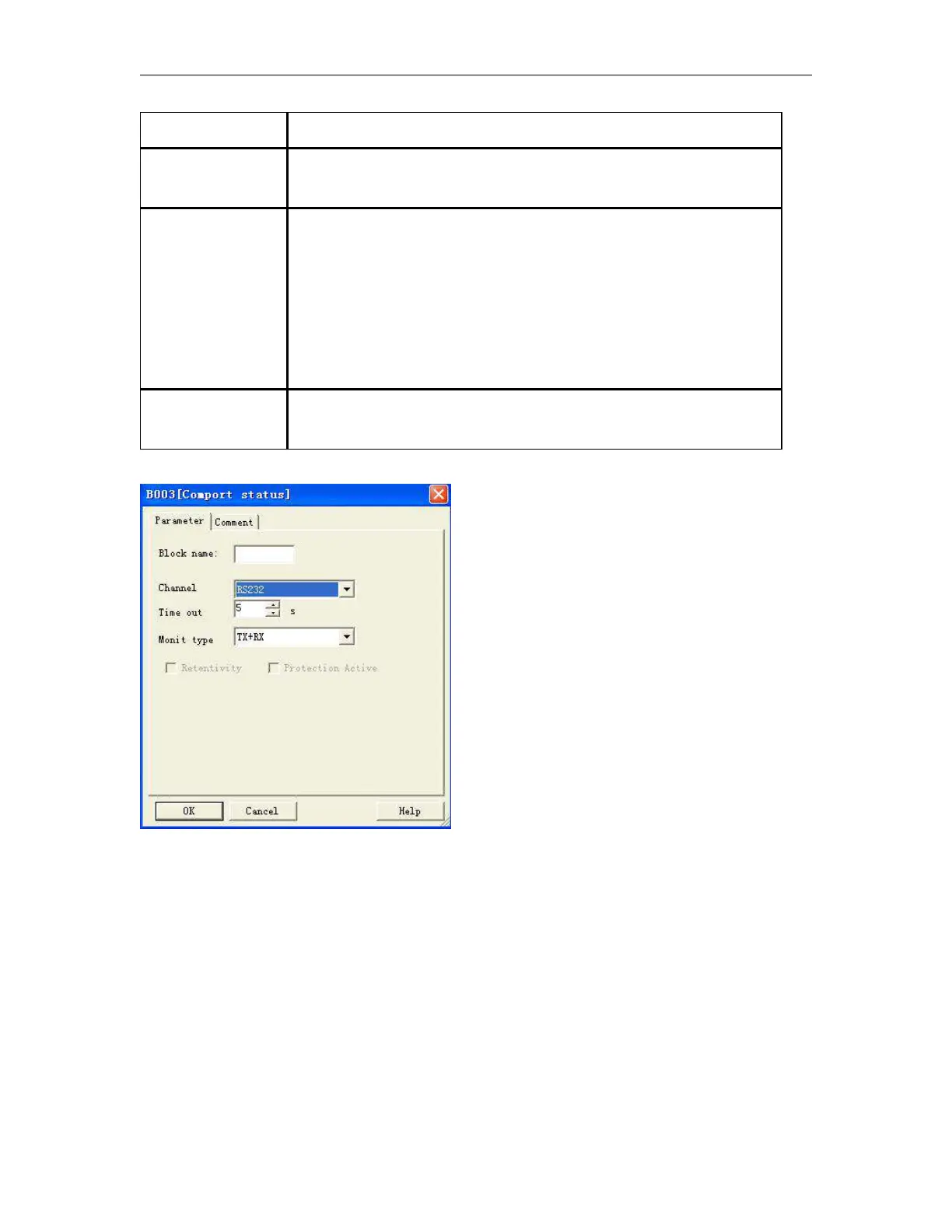

Parameters
Channel
RS232: This channel is the programming port, it can be used to monitor or display the communication
status of the below accessories:
ELC-RS232 cable
ELC-USB cable
PRO-RS485 cable
