VIDEO Vs. AUDIO PEAK LEVEL RATIO AND SIGNAL TO NOISE RATIO

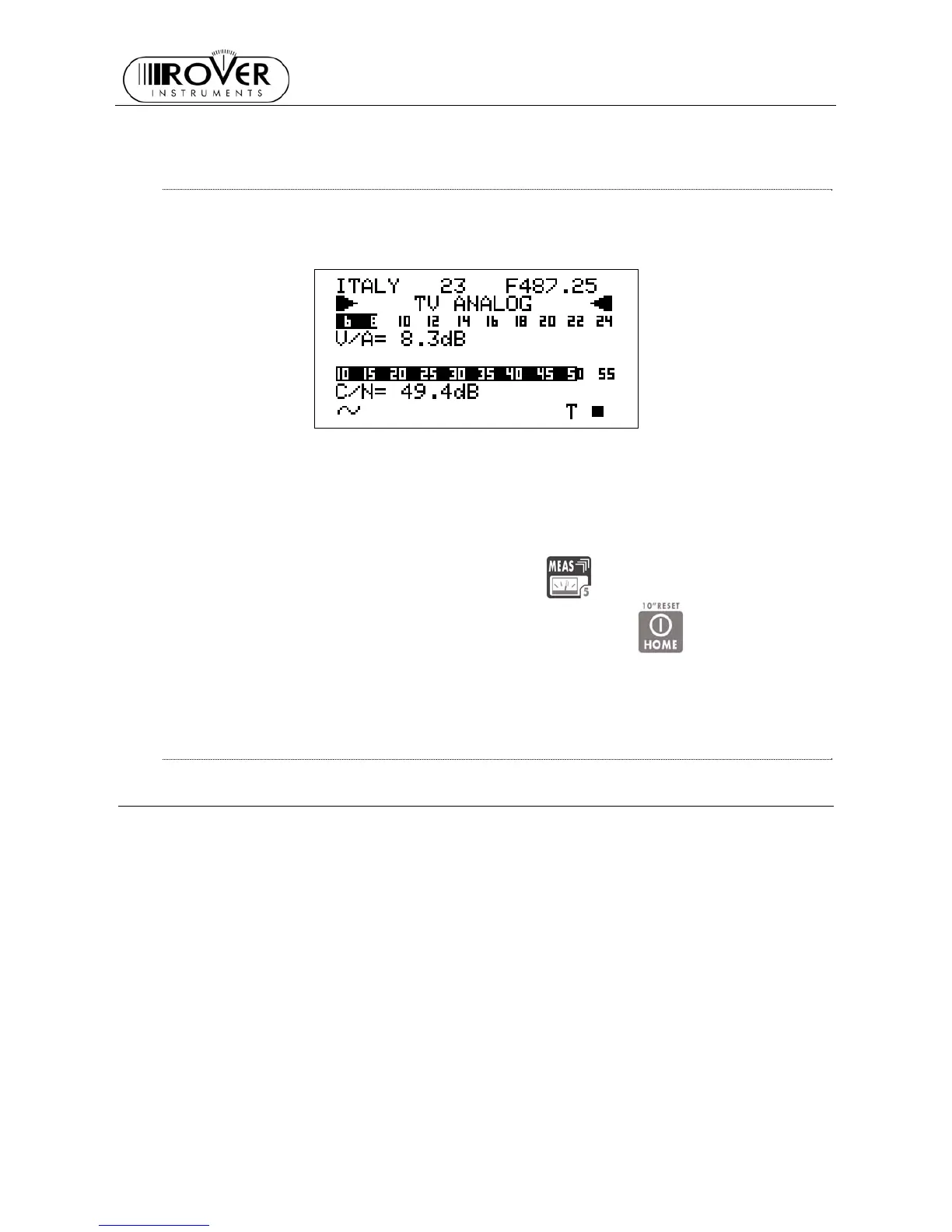

From the previous measurement screen, press once and release the MEAS [5] key. The
Video Vs. Audio peak level ratio and the signal to noise ratio will be displayed.
The meter will display the Video peak level Vs. Audio peak level Ratio (V/A, in dB) and the
Signal to Noise Ratio (C/N, in dB). Both the real time Ratios are also displayed on level bars
with peak level memory.
By repeatedly pressing and releasing the MEAS
[5] key the above mentioned
screens will appear in sequence. Press once and release the
[A] key once to
directly enter the Video signal peak level measurement.
SPECTRUM ANALYSIS OF THE TUNED CHANNEL
Proceed as described in Chapter 12 SPECTRUM ANALYZER MODEat page 38.
