To start the auto Meas&Store, using the Standard Navigation Mode, highlight the item
SAVE? or, resp., OVERWRITE? and press the encoder knob [D]. In the lowest part of
the LCD a progress bar will display the status of the running Meas&Store as well as the
message WAIT!. When the auto Meas&Store is completed the LCD will display
STORED!
RECALL A PREVIOUSLY STORED LOGGER MEMORY PLAN
The meter allows the user to recall the required measurement files (LOGGER type) and
display all the measurement previously performed and stored. While in the previous
screen:

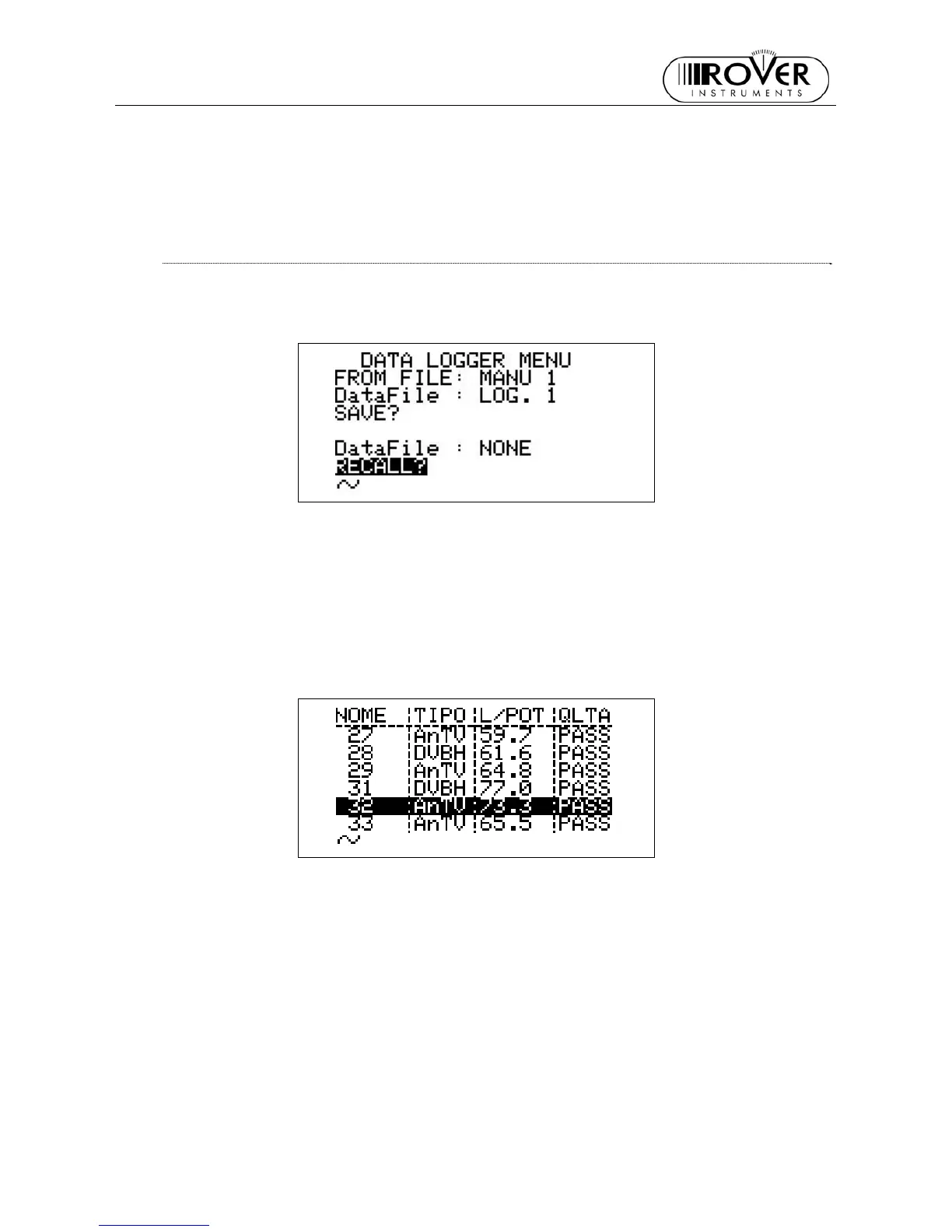

In the second row from the bottom, the display shows the LOGGER file [DataFile] which
will be recalled. To select the desired file, using the Standard Navigation Mode highlight
the item DataFile and select the required LOGGER file.
The meter will let you select only previously created files. If the LOG.45 is void, i.e. no
automatic measurements have been ever stored, the meter will not allow you to select
this file.
When the required DataFile has been chosen, highlight the item RECALL and press the
encoder knob [D]. The LCD will display a resume screen showing the stored
measurement data for each channel:
The LCD will report (from the left): the channel ID, channel type, channel level (analogue
signal) or power (digital signal) and the quality test results.
Rotate the encoder to scroll (up or down) the complete channel list.
Press once and release the MEAS [5] key to quit the menu.
