16 TV AND COFDM AUTO MEAS&STORE (DATA LOGGER)
The meter can automatically tune all of the channels included in any memory plan
(whichever the type) and automatically perform all the available measurements on each of
the tuned channels. The measurements results are stored into a user selected target file
(LOGGER files).
Any LOGGER file can be downloaded to a PC in MS Excel ® format using the connection
software ROVER SMART ®.
The meter is capable to store up to 99 different LOGGER files, thus allowing the user to
perform a complete auto Meas&Store at almost every end-user socket in a building, and to
archive the results only when back home, without any need to stop the field activity to free
memory space for allowing further measurements.
16.1 AUTO MEAS&STORE

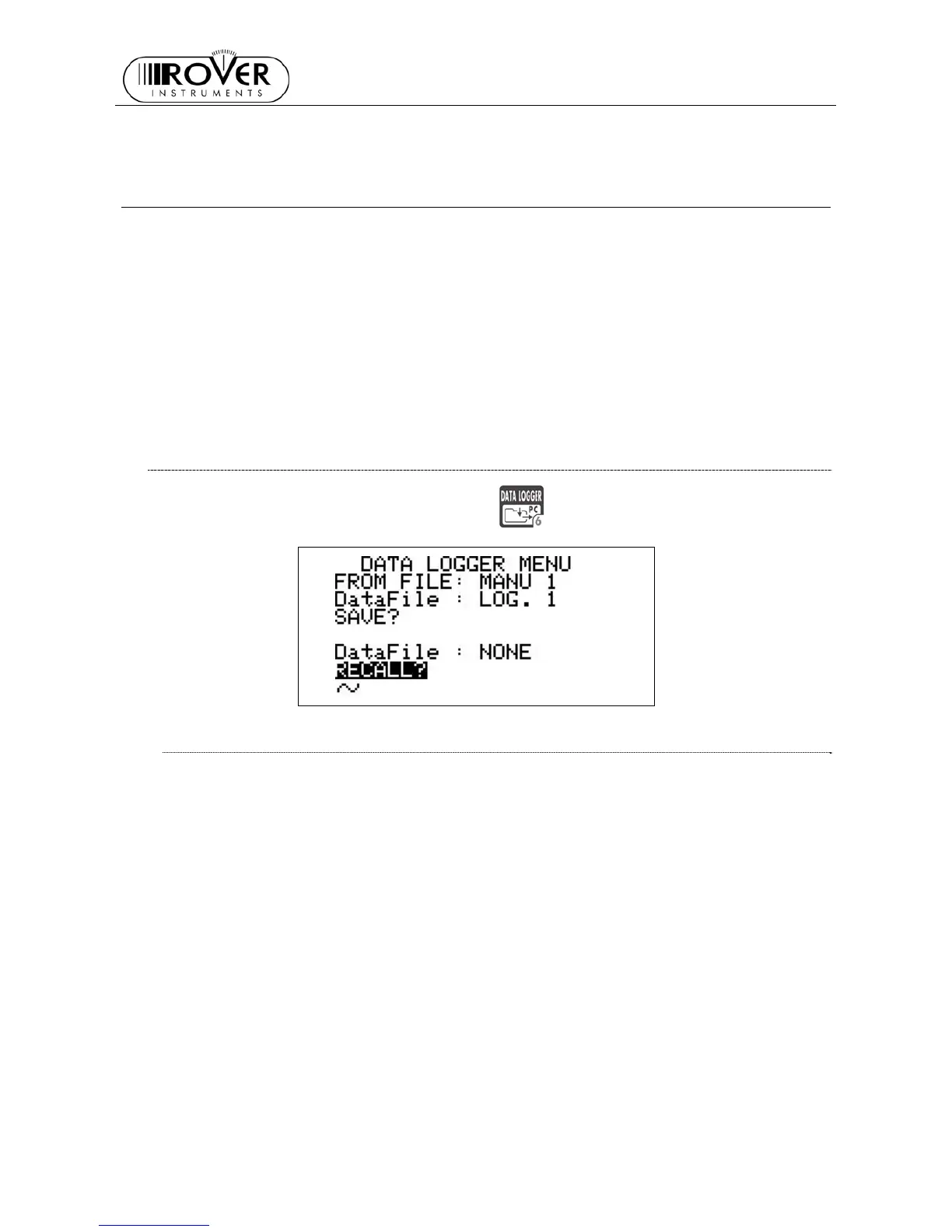

Press once and release the DATA LOGGER [6] key; the LCD will display:
PERFORMING AUTO MEAS&STORE
In the second row from the top [PLAN], the LCD will display the group of channels
(Memory Plan) whose channels will be automatically tuned to perform the Auto
Meas&Store feature. Country Memory Plans (e.g.: ITALY) cannot be selected for Auto
Meas&Store.
Using the Standard Navigation Mode, highlight the item PLAN and select the Memory
Plan on which the Auto Meas&Store will be performed.
Please be careful not to select a Memory Plan including Satellite Transponders.
For TV signals, only user defined memory plans (Manual Memory or AutoMemory) can
be selected.
Into the LCD third row from the top the current target LOGGER file [DataFile] is
displayed. Into this LOGGER file the measurement data will be stored. To edit the target
LOGGER file, using the Standard Navigation Mode highlight the item DataFile and
select the desired target file. Target LOGGER file names can be selected from LOG.1 to
LOG.99.
In case the current target Logger file is void, the LCD bottom row will display SAVE? In
case the current target Logger file already contains data from a previous Auto
Meas&Store, the LCD bottom row will display OVERWRITE? In this case, should you
proceed to a new Meas&Store, the former data will be deleted without further notice.
