MASTER STC
USER MANUAL
35

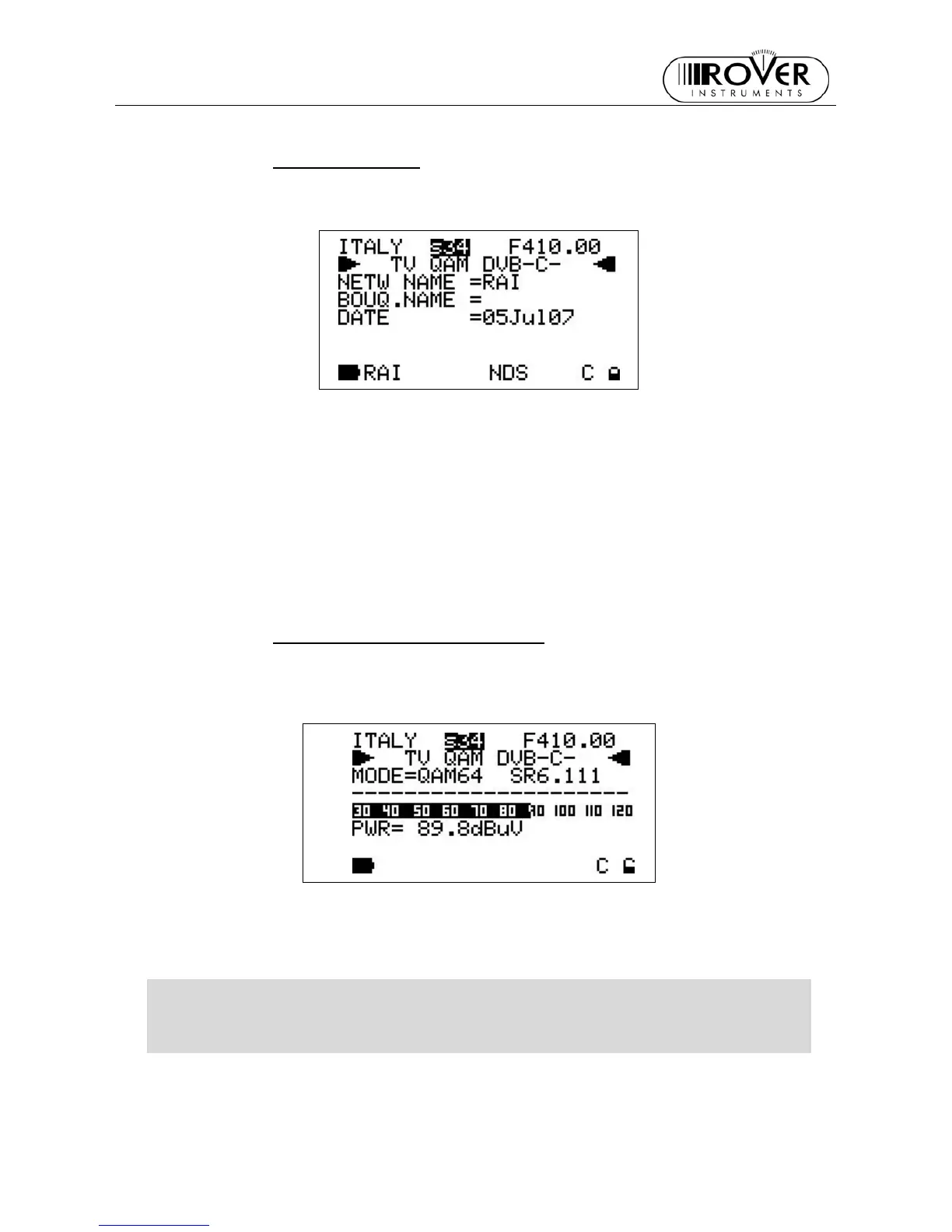

BOUQUET DATA ID
From the previous measurement screen, press once and release the MEAS [5] key.
In case the tuned bouquet contains the relevant information, the LCD will display:
• the network name (NETW. NAME)
• the bouquet name (BOUQ. NAME)
• the current date (DATE), as stated in the bouquet itself
Any information missing not included in the bouquet will result in a blank field. Anyway, the
signal is properly locked even when one or all of said information is missing provided that
the lock at the LCD bottom right corner is closed.
CHANNEL POWER MEASUREMENT
From the previous measurement screen, either Press once and release the MEAS [5]
key once or under any circumstance press the HOME [A] key once to enter the
channel power measurement.
On the LCD bottom row, the channel power measurement, together with the relevant
measurement unit will be displayed. This real time value is also displayed on a level
bar with peak level memory.
WHILE PERFORMING SUCH MEASUREMENTS, THE LOCK DISPLAYED AT BOTTOM
RIGHT SIDE OF THE SCREEN WILL BE OPEN. THIS IS BECAUSE THE METER
EXPLORES THE WHOLE CHANNEL BAND IN ORDER TO DETECT THE TRUE
CHANNELPOWER.
