From the previous measurement screen, either Press once and release the MEAS [5]
key once or under any circumstance press the HOME [A] key once to enter the
channel power measurement.

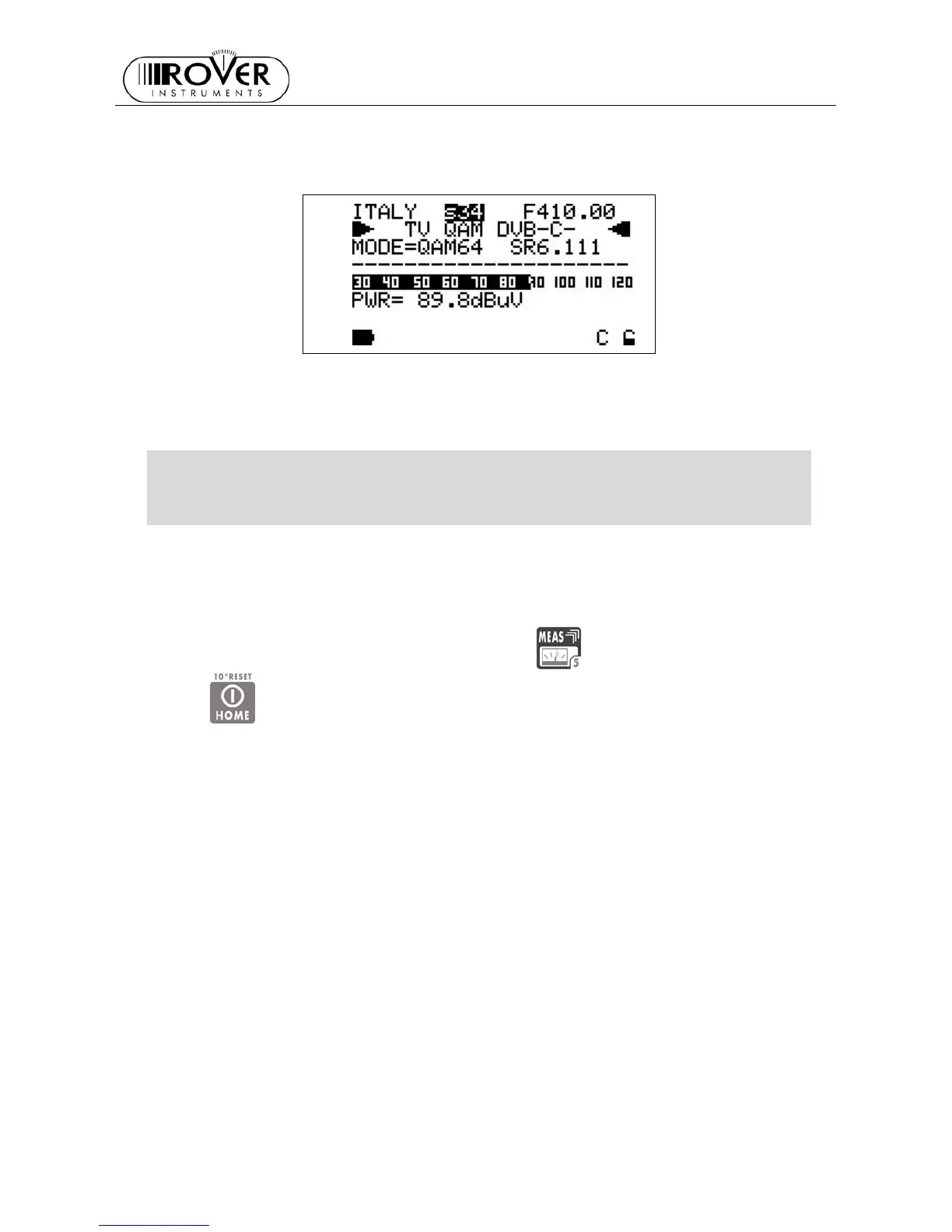

On the LCD bottom row, the channel power measurement, together with the relevant
measurement unit will be displayed. This real time value is also displayed on a level
bar with peak level memory.
WHILE PERFORMING SUCH MEASUREMENTS, THE LOCK DISPLAYED AT BOTTOM
RIGHT SIDE OF THE SCREEN WILL BE OPEN. THIS IS BECAUSE THE METER
EXPLORES THE WHOLE CHANNEL BAND IN ORDER TO DETECT THE TRUE
CHANNELPOWER.
However in the next measurement screens, the signal will be displayed as correctly
locked.
All the various measurements screens above described, and related to QAM (CATV) signals will
be cyclically displayed by repeatedly pressing the MEAS
[5] key. Press once and release
the HOME
[A] key to directly switch to the channel power measurement.
