MASTER STC
USER MANUAL
62
CHANNEL POWER.
The LCD bottom row displays the power of the detected signal together with the relevant
measurement unit.
The real time video signal peak level value is displayed also on a level bar with peak level
memory: a vertical bar is showing the maximum level (peak level) reached by signal during
the measurements.
NOISE MARGIN, QUALITY TEST, MER AND ERROR COUNT MEASUREMENTS
From the previous measurement screen, press once and release the MEAS [5] key.

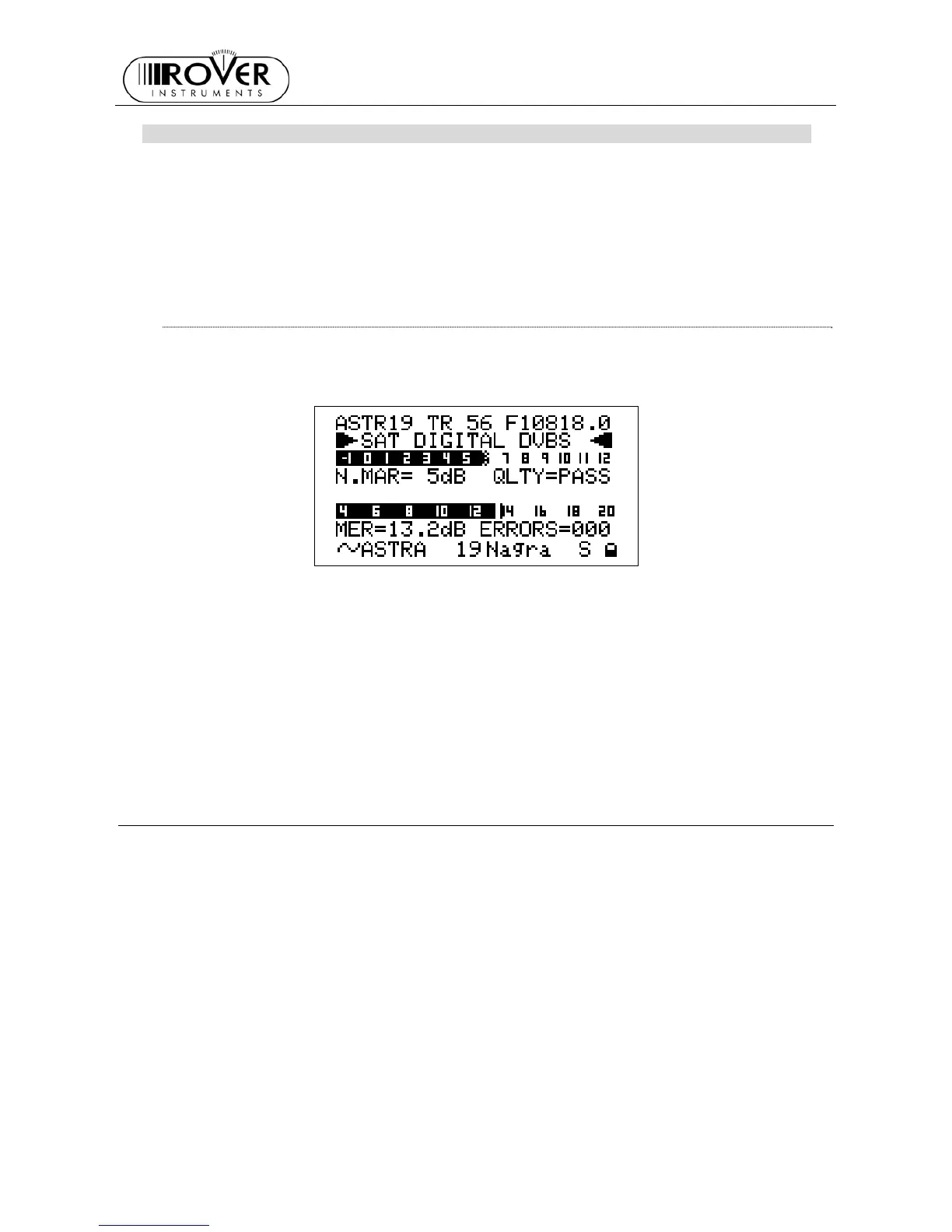

In case the signal is properly locked, the LCD displays the Noise Margin (Noise Margin,
N.MAR), quality test (QLTY), MER and ERROR COUNT measurements.
The Noise Margin and MER values are also displayed on a level bar with peak level
memory.
Furthermore, the bottom row of the screen displays the main information of the relevant
bouquet:
• Bouquet name (network name), after some seconds and under acceptable
receiving conditions.
• Orbital position of the detected satellite.
• Encryption system (encrypt), if there is at least one encrypted program in the
bouquet, after some seconds and under acceptable receiving conditions.
• An S icon, in correspondence with the SAT icon on the LCD frame
A lock in correspondence with the DIG icon on the LCD frame. The lock is closed when
the received signal has been correctly locked, otherwise it appears open.
