Press once and release the HOME [A] key to directly switch to the channel power
measurement.

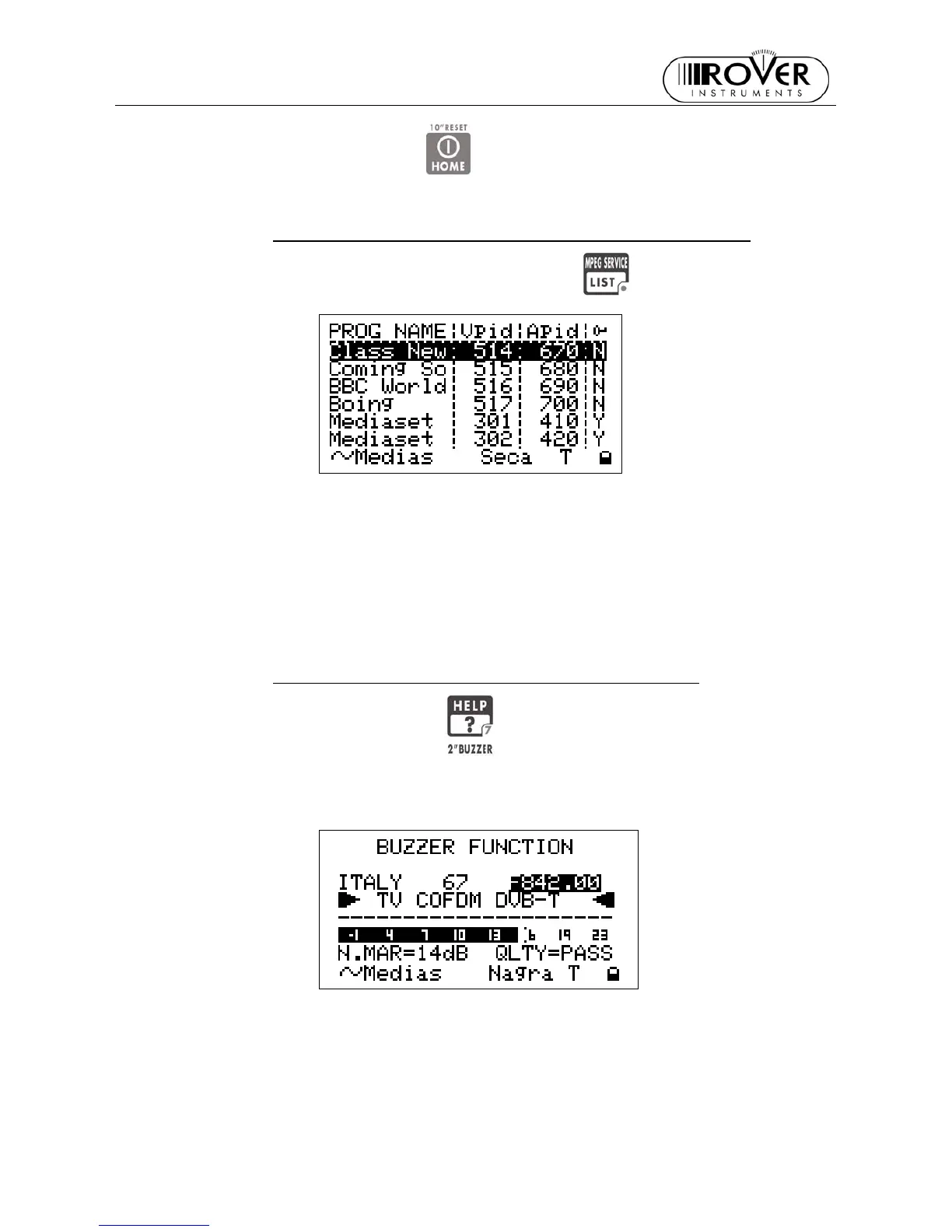

DISPLAYING THE SERVICE LIST OF THE CURRENT BOUQUET
Press once and release the MPEG SERVICE LIST
[B] key once.
The LCD [C] will display:
• the full program list of the currently tuned bouquet;
• the relevant video (Vpid) and audio (Apid) PIDs, and
• the encryption status key (Y= encrypted, N= not encrypted/free to air).
It might take few second to get the full information displayed.
Rotate the encoder [D] to scroll down the program list (up to 64).
Press once and release the MEAS [5] key to quit to the previous measurement screen.
BUZZER FUNCTION (ASSISTED ANTENNA ALIGNMENT)
Press and hold for 2’’ the HELP
[7] key. You can hear a beep whose duty
cycle is proportionally to the signal Noise Margin.
This is an antenna alignment aid feature. The buzzer tone can be activated only when
the received digital signal is correctly locked. The LCD [C] will display:
The LCD [C] second row shows (from the left): the memory plan in use, the currently
tuned channel ID and the relevant frequency value. The frequency value can be
changed using the Standard Navigation Mode.
The bottom section of the display shows the Noise Margin measurement (also on a
level bar with peak memory display) and the result of the signal quality test (PASS,
MARGINAL, FAIL).
Press any key to deactivate the buzzer tone and to quit this function.
