Using TripSaver
®
II Service Center Conguration Software Version 2.0
Standalone Mode
TripSaver II Service Center Conguration Software has two operating modes: Standalone
(ofine) and Connected (online). The software automatically enters the Standalone
mode after the software is launched. It starts with S&C default conguration settings.
Users can define their own default settings that the software uses in Standalone mode
by selecting the Tools>Options>Standalone option. In Standalone mode, the settings
can be configured without being connected to a recloser, saved to a setpoint file for later
use, and loaded into a previously saved snapshot file for analysis. Six settings screens
are available under this mode. They are: 1) TCC Curve Settings, 2) NR Curve Settings,
3) Sectionalizing Settings, 4) LCD Screen Settings, 5) Communications Settings, and
6) Local Manual Open. See Figure 24.
Note: Validation in Standalone mode will validate for a TripSaver II recloser
rated 100 amperes continuous. Validation in Connected mode will validate
settings based on the actual continuous current setting of the recloser:
40 A, 100 A, or 200 A.

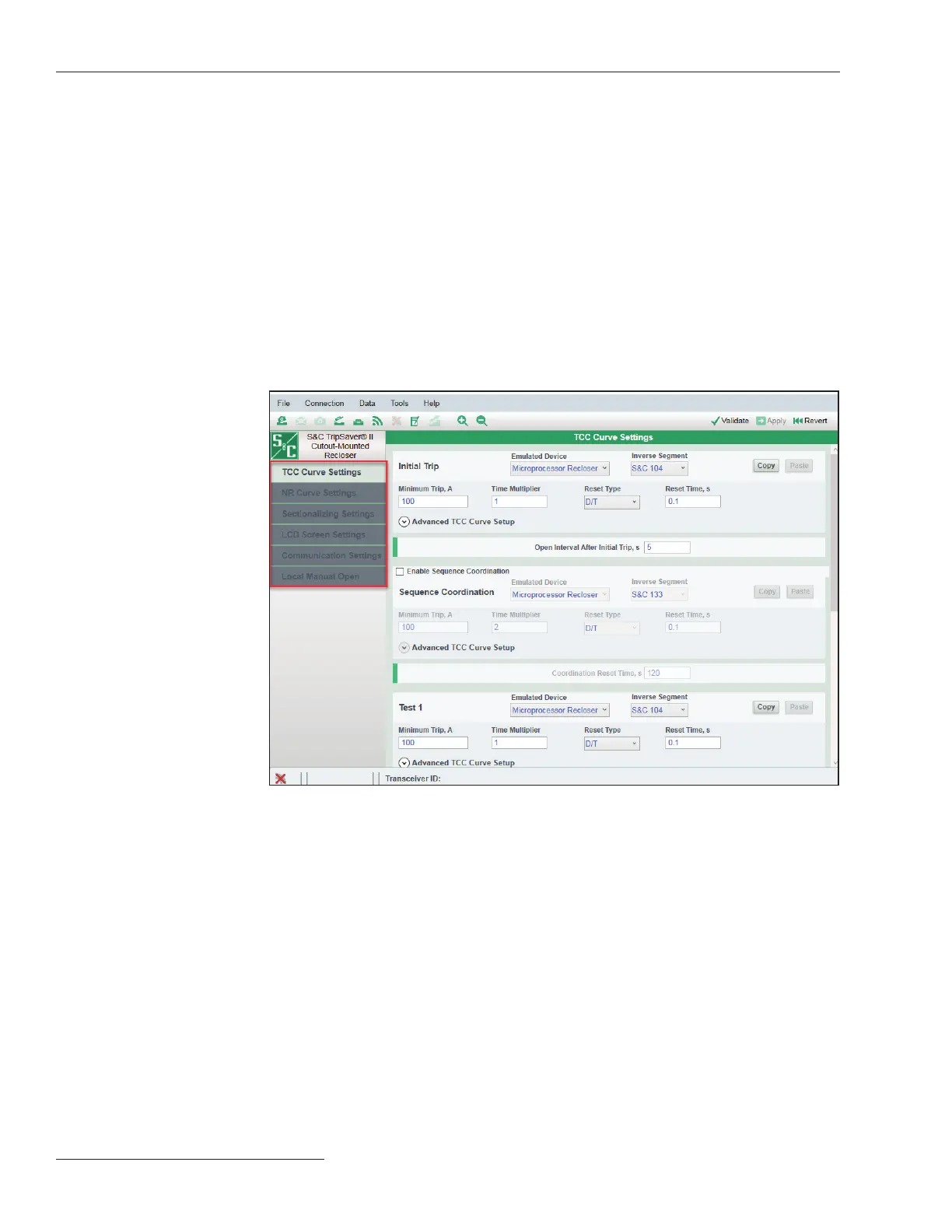

Figure 24. The Standalone mode menu tree items.
