78 S&C Instruction Sheet 461-504
Informational and Settings Screens
Selecting “Display” Screen items
The lower half of this setting screen is where the Display screen items are selected. See
Figure 108 on page 76.
Available Screens. This list displays the selection of screens that can be added to
the “Display” Screen sequence. See Appendix C on page 127 for the available options.
An item can be selected and added to the “Display” Screen Sequence by clicking on it.
The clicked item will be highlighted in blue color. See Figure 109. Multiple items can be
selected simultaneously.

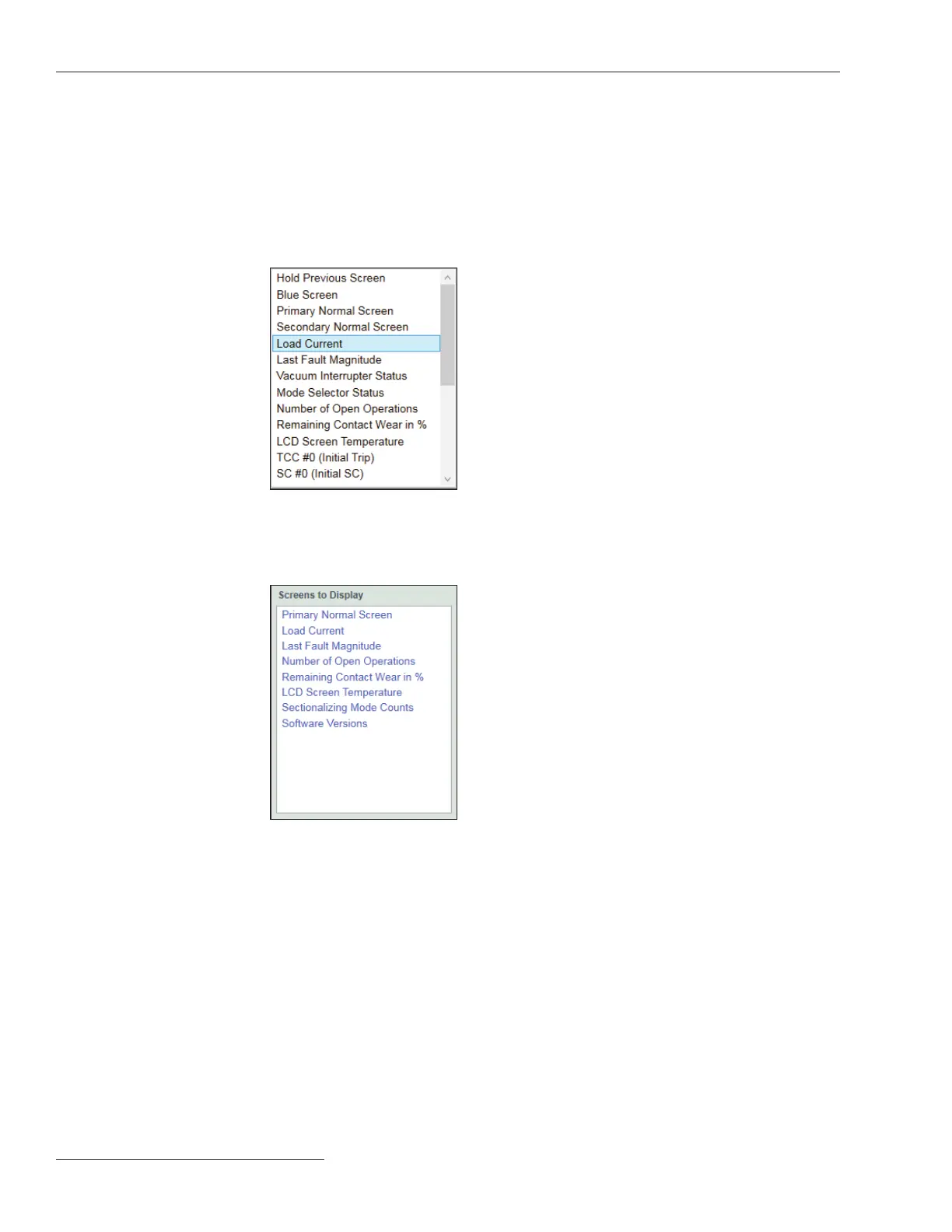

Figure 109. The list of available items for the Display Screen mode.
Screens to Display. This is the list of items that will be displayed on the LCD screen
under the Display Screen mode. See Figure 110. Multiple items can be selected simul-
taneously. Up to 32 items can be added to this list.
Figure 110. The list of screens that will be displayed.
