12 Cubis MSA User Manual
Getting Started

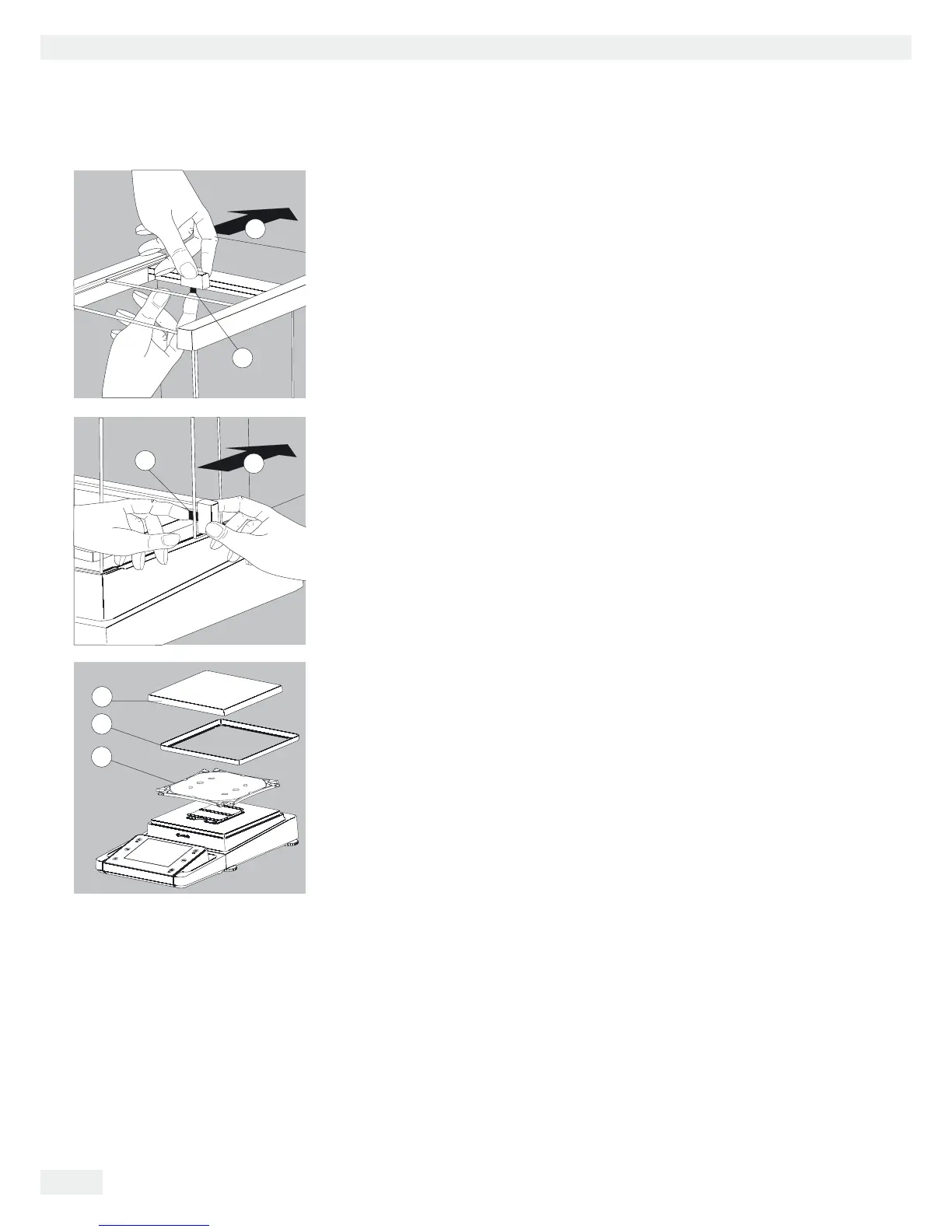

t Slide the upper draft shield panel into the guide rails from the rear while
pressing the locking tab.
t Slide the side draft shield panel into the guide rails from the rear while pressing
the locking tab.
1. Right draft shield panel
2. Left draft shield panel
y This completes the balance assembly.
t Remove the panel:
1. Press on the locking tab.
2. Remove the panel
t Place the panel in the storage slot at the back of the balance.
Assembly for Models without a Draft Shield
t Fit parts onto the balance as shown in the picture.
1. Pan support
2. Shield plate/Draft shield
3. Weighing pan
2
1
2
1
2
1
3
