144 Cubis MSA User Manual
Interfaces
Network Interface (Ethernet)
Purpose This interface lets you integrate your balance into a TCP/IP-based network.
System Requirements The person configuring the Ethernet interface should have basic knowledge
of TCP/IP-base networks and network technologies in general.
The Ethernet interface is connected to the local network via the RJ45 slot.
Features
Transfer rate: 10 Mbs/sec (10BASE-T, Ethernet) and 100 Mbs/sec
(100BASE-TX, Fast Ethernet), auto-recognition (10/100,
HalfDX/FullDX)
Connection type: Network protocol: ModBus/TCP
Transport: TCP/IP or UDP/IP
HMS certificates: Compatible with ModBus TCP standard of the ModBus
Organisation, industry-compatible CE, UL, cUL
Cable: Twisted pair, shielded, CAT-5 or higher, 1:1, UTP / STP,
male connector RJ45; e. g. patch cable CAT5 depending
on application (straight/crossover)
Cable impedance: 150 Ohm
Cable length to HUB: Max. 30 m

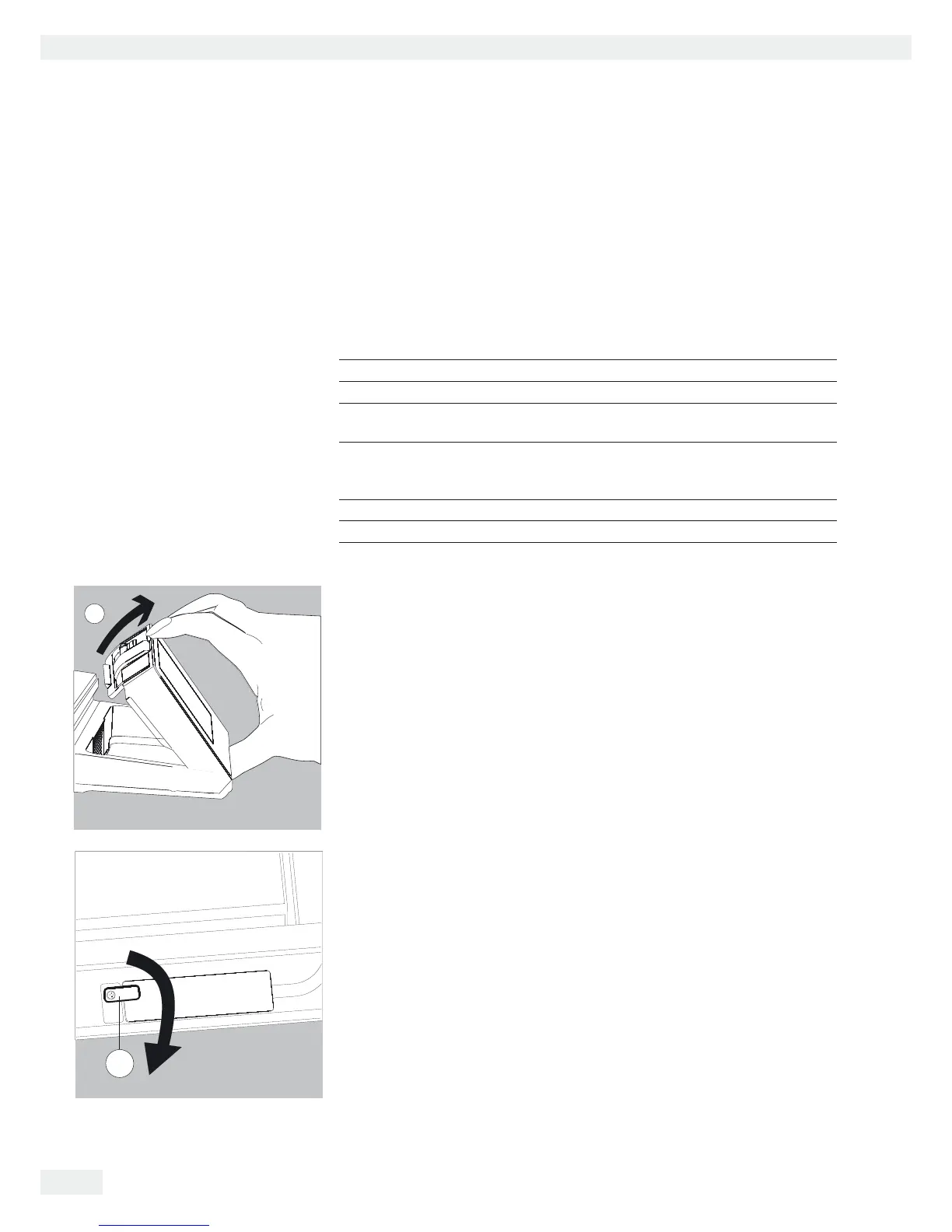

Connecting Network Cables
1
The slot for the network port is located at the back of the control unit.
t Tilt the control unit (1) until it is nearly vertical.
2
On the bottom panel of the display unit:
t Turn the locking lever (2) 90°.
