136 Cubis MSA User Manual
Interfaces

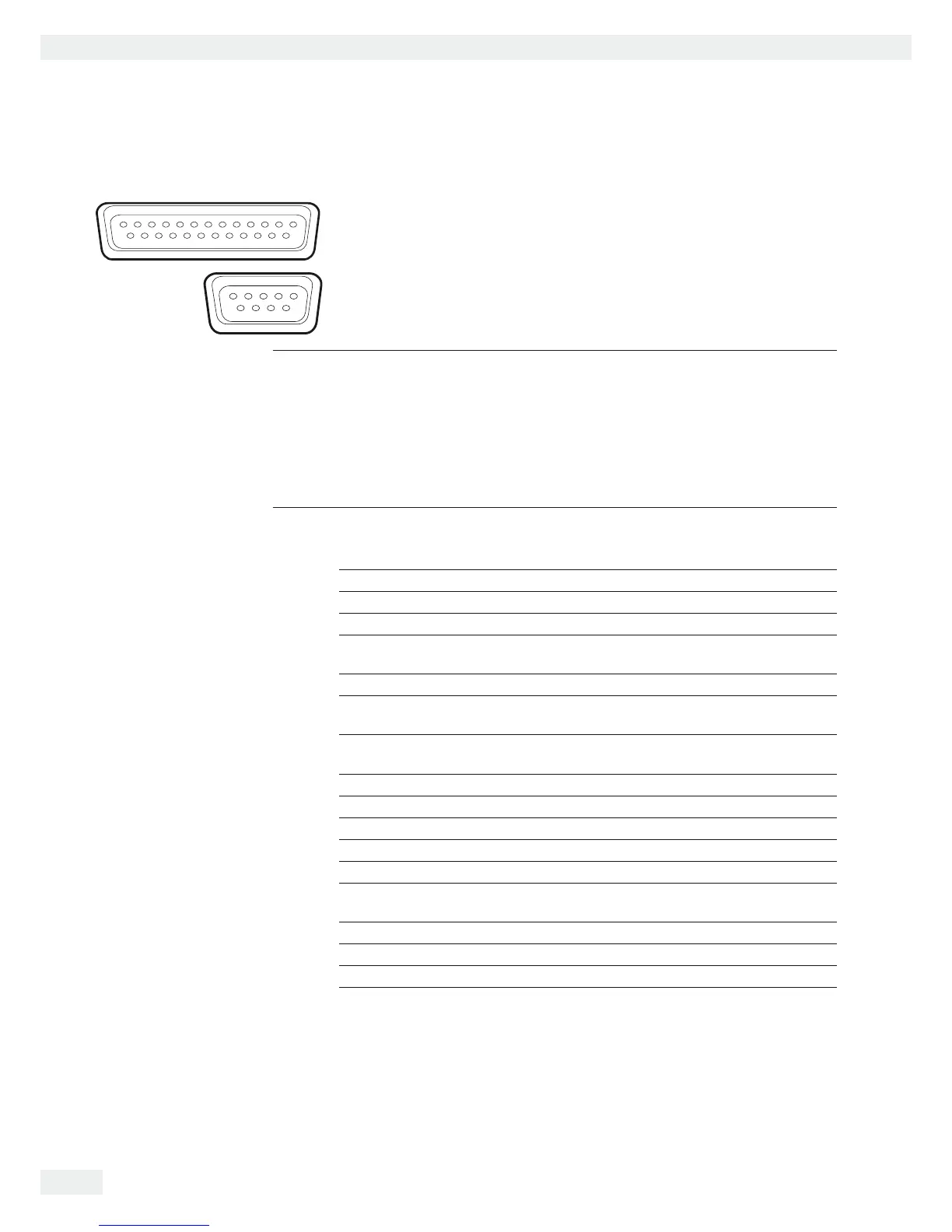

Interfaces (RS-232) 25-pin and 9-pin
1
14
13
25
The balance is standard-equipped with a 25-pin interface (peripheral port) where
different Sartorius peripherial devices can be connected, e. g. hand or foot switch.
This interface is also used for the control lines for the Checkweighing application.
9
15
6
A 9-pin interface can be optionally installed. This port is intended for connecting a PC.
3
Warning When Using Pre-wired RS-232 Connecting Cables for the 25-pin
Interface:
RS-232 cables purchased from other manufacturers often have incorrect pin assign-
ments for use with Sartorius devices. Failure to do so may damage or destroy your
weighing system and/or peripheral devices!
t Be sure to check the pin assignments before you connect cables purchased
from other manufacturers.
t Disconnect any lines assigned differently (e. g. Pin 6).
Features (*= Factory settings)
Type of interface: Serial Interface
Interface operating mode: Full duplex
Level: RS-232
Interface connector: D-SUB female connector, 25- or 9-contact
Transmission rate: 600, 1200, 2400, 4800, *9600 and
19200 baud (selectable)
Parity: *Even, odd, none; blank spaces (selectable)
Character transmission: Start bit, 7/8* bit ASCII, parity, *1 or 2 stop bits
(selectable)
Handshake (selectable): 25-pin For 2-wire interface: Software (XON/XOFF)
for 4-wire interface: *Hardware (CTS/DTR)
9-pin Hardware (CTS/RTS)
Operating mode: *SBI, xBPI, printer, SICS, 2nd display
Manual print mode Without stability, *after stability
Auto print mode *Without stability, at stability, after load change
Cancel automatic printing: Not possible
Time-dependent automatic
printout: After 1 display update
Data output of balance: 16 or *22 characters
Tare after individual printout: Off
Basic values, application: Off
Connectable Peripherials The following devices can be ported to the interface:
– Verifiable data printer YDP03-0CE, YDP10-0CE, YDP20-0CE
– Verifiable data printer with Bluetooth data transmission YDP10BT-0CE
(module required)
– Universal (serial printer)
– Strip/label printer YDP04IS-OCEUV
– Hand switch YHS01
– Foot switch YFS01, YPE01RC
– External control display YRD11Z
– Remote display YRD03Z
