32 Cubis MSA User Manual
Using the Balance
User Interface (Touch Screen)
Many operating steps are carried out via the display using the touch screen. The
display varies depending on whether the application software is in operating mode
or a menu is currently open (setup mode).

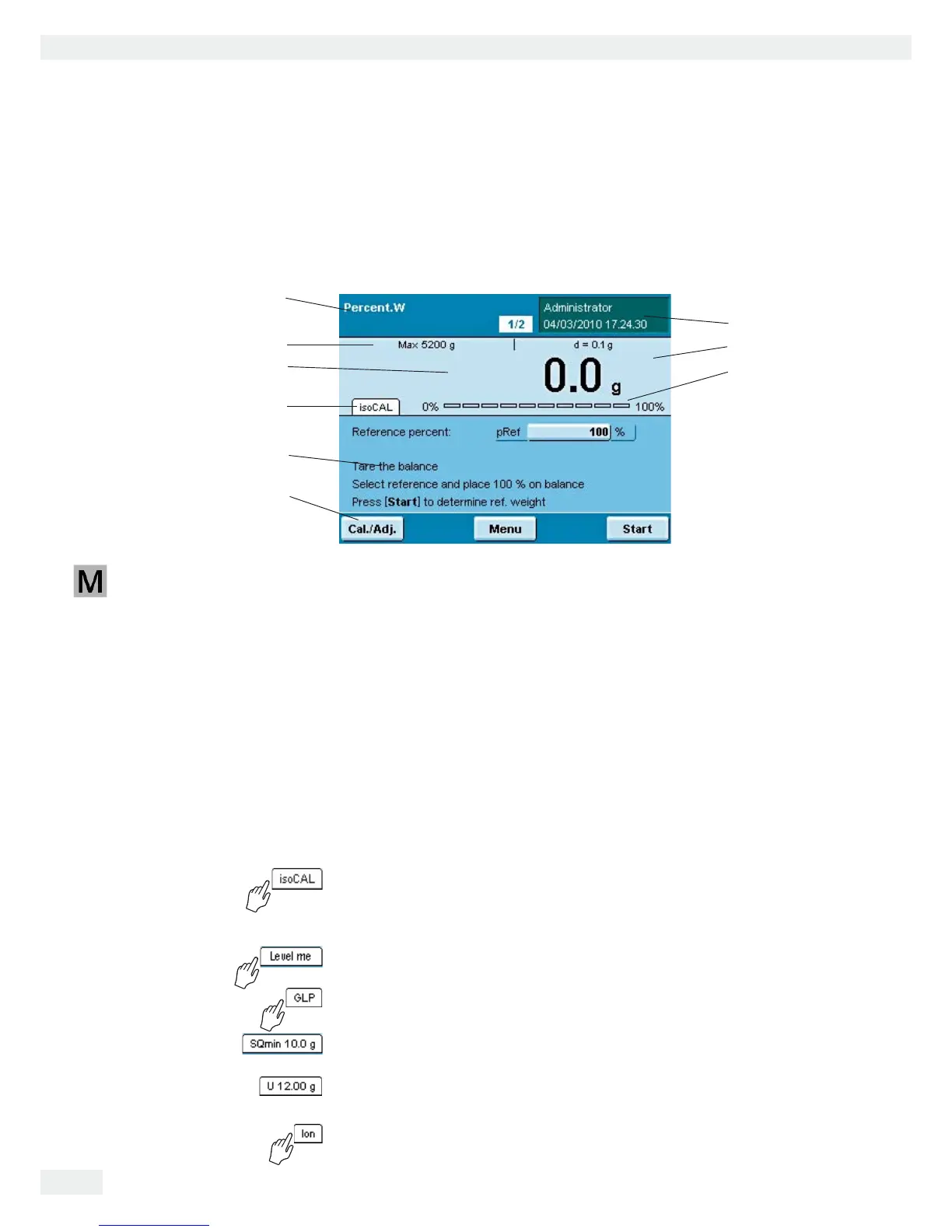

Display in Operating Mode
1 Function display: Current task (here: Step 1 of 2)
Touching this area displays the description of the task.
2 Line for Metrological Data: left: Weighing Capacity (max);
right: d = Readability (resolution) of the balance.
3 Value range with current measurement value (the numeric value is displayed
in black numbers once the weighing system reaches stability; beforehand it is
displayed in gray numerals)
4 Field for status and warning messages (see below)
5 Task area with instructions on how to proceed
6 Toolbar with currently available buttons
7 User field: Displays the current user, date and time
Touching this area displays the description of the user.
8 For _.CE model balances verified for use as legal measuring instruments:
Displays the weights that are not weight values, e. g. calculated values
9 Scaled measurement value display (percentage of used weighing capacity)
Status and Warning Messages
tabs with the following messages may be shown here:
isoCAL is displayed: isoCAL is active (extended temperature range)
isoCAL flashes: Calibration is required
Touch the tab to activate the function.
Level me flashes: Balance is not level, leveling is required
Touch the tab to activate the function.
GLP: GLP print is active, the header will be printed.
Touch the tab to print the footer.
SQmin: The SQmin value entered is permanently displayed.
SQmin flashes: the weight value is less than the entered SQmin value.
U or U* or PA: The selected DKD value (measurement uncertainty) is currently
displayed.
Ion: Ionizer in progress (only when ionizer available)
Touch the tab to deactivate the function.
1
2
3
4
6
5
7
9
8
Verified balances feature the
following additional displays:
In the line for metrological data:
Min Minimum weight
e Verification scale interval
In the value range:
o Calculated values.
k Other values.
pcs Piece count.
