6.7.4 Traffic — Filter setup
The
Traffic — Filter setup
view makes it possible to define stream filter requirements affecting the
Traffic — Detect
and
Traffic — Filter statistics
views. Ten filters can be defined and enabled by the
user.

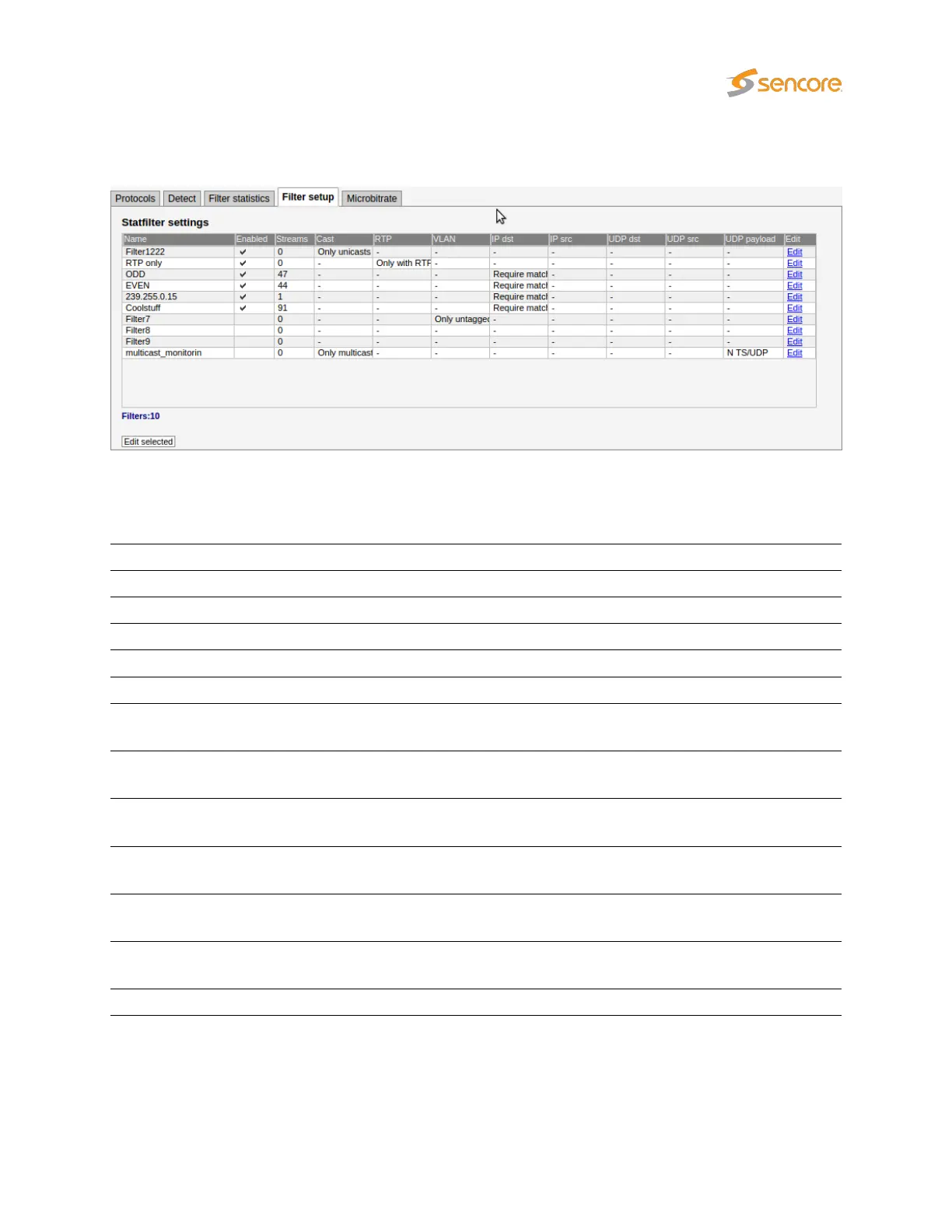

Statfilter settings:
Name: A text string defining the filter
Enabled: Only enabled filters are in use
Streams: The number of streams matching filter requirements
Cast: The type of stream: No filtering, Only unicasts or Only multicasts
RTP: The RTP mode: No filtering, Only with RTP header or Only without RTP header
VLAN:
VLAN selection mode: No filtering, Only tagged traffic, Only untagged traffic or
Require matching specified value (a specific VLAN ID).
IP dst:
The IP destination address mode: No filtering or Require matching specified value
(a specific IP address/netmask)
IP src:
The IP source address mode: No filtering or Require matching specified value (a
specific IP address/netmask)
UDP dst:
The UDP destination mode: No filtering or Require matching specified value (a
specific UDP port number)
UDP src:
The UDP source mode: No filtering or Require matching specified value (a specific
UDP port number)
UDP payload:
The UDP payload mapping type: No filtering, 7 TS/UDP or N TS/UDP (any integer
number of TS to UDP mapping)
Edit: Click the Edit link to edit filter settings.
