PID thresholds: The name of the PID threshold template assigned to the current frequency
Service thresholds:
The name of the Service threshold template assigned to the current frequency
VBC thresholds: The name of the VBC threshold template assigned to the current frequency
Spectrum inversion: Indicates whether the spectrum is inverted or not

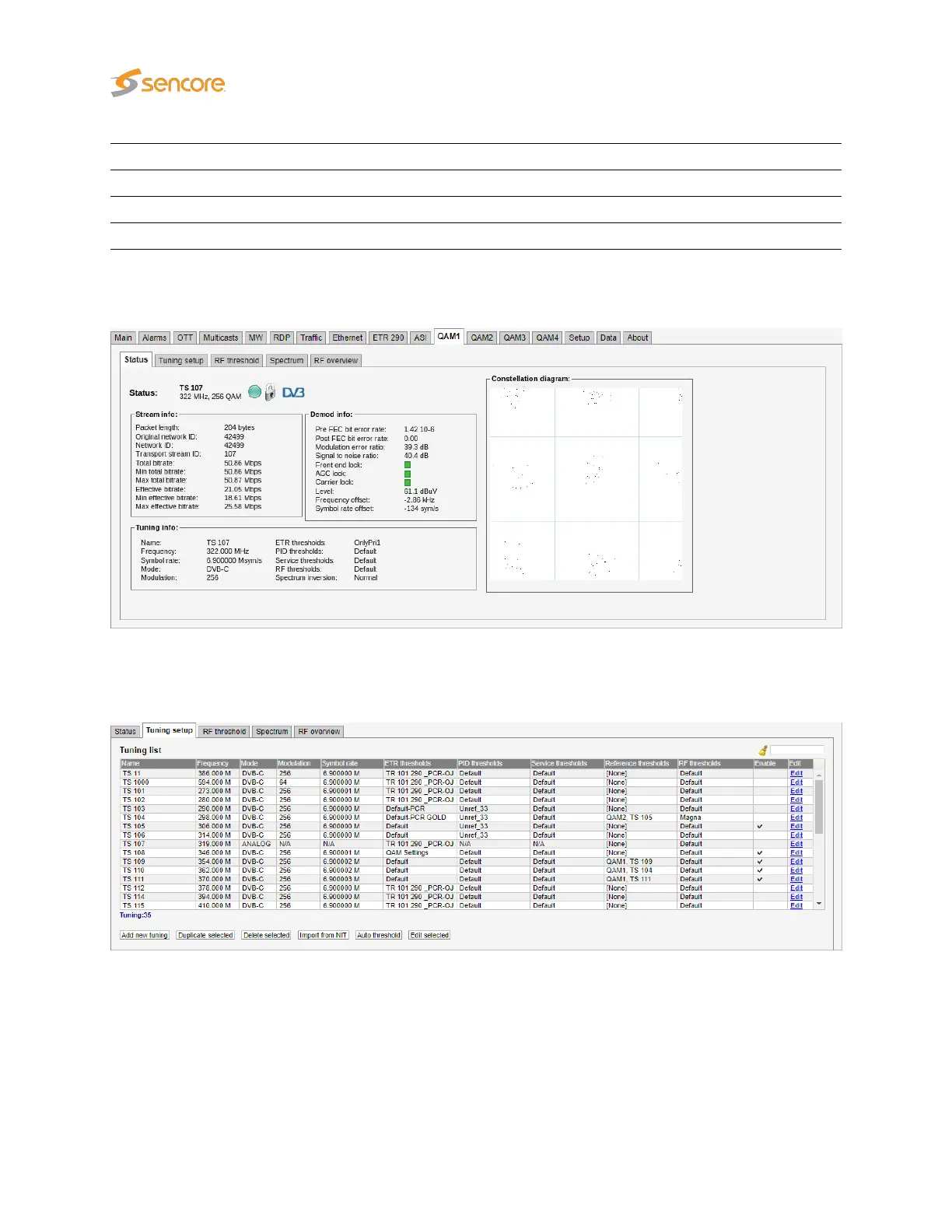

The constellation diagram displays the received symbols with respect to phase and amplitude. It is
possible to zoom in and out by clicking the constellation diagram.
6.14.2 QAM — Tuning setup
In this view the operator can define frequencies that will be used by the QAM demodulator for tuning. A
name is associated with each frequency, and this name will be used by the probe when referring to the
stream. The frequencies and some associated key parameters are shown in the QAM tuning list. Each
entry in the list may be edited by clicking the Edit field.
To add a new frequency to the list, click the
Add new tuning button
. A pop-up window will appear
allowing the user to enter tuning parameters.
200 VB2xx GigE User’s Manual version 5.4
