6.4 Multicasts
6.4.1 Multicasts — Parameters

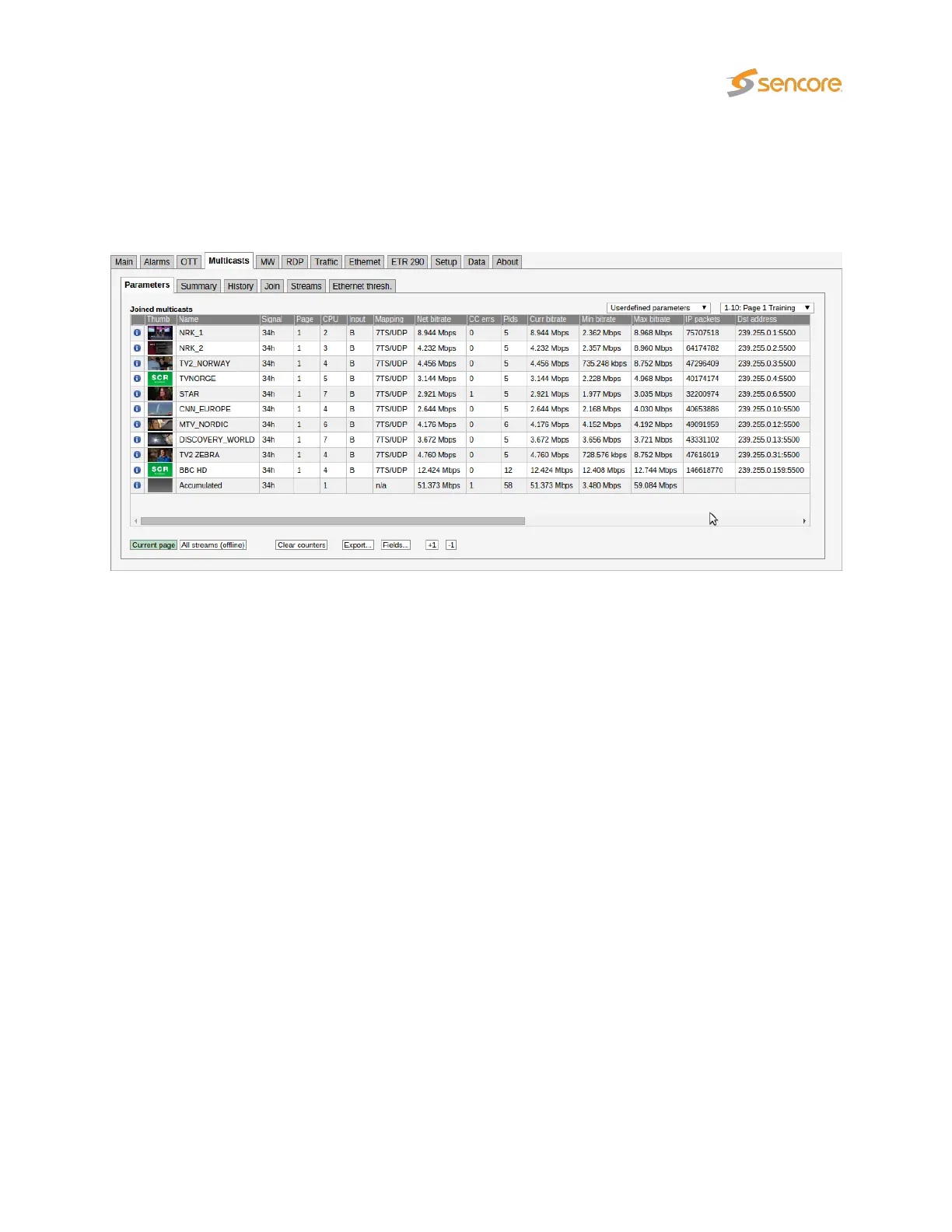

The Multicasts — Parameters view displays detailed information about each stream.
The user selects which group of measurements should be displayed. Selections are IP parameters, TS
parameters, Ethernet parameters, RTP and FEC parameters, User-defined parameters and Statistical
parameters. If User-defined parameters is selected, the
Multicasts
view displays parameters selected
by the user in the Multicasts — Parameters — Fields view.
For each page the Accumulated row at the bottom of the multicast list displays accumulated values for all
streams associated with the page. The accumulated Min bitrate and Max bitrate is the minimum and
maximum value of the Accumulated current bitrate.
When the
Current page
button is clicked it is possible to select the page from a drop-down menu. The
associated thumbnails are shown in the leftmost column of the list of measurements. Click one of the
small thumbnails to view a larger thumbnail that is updated more frequently. Note that it is possible to
disable probe thumbnail extraction in the Setup — Params view.
When
All streams (offline)
is clicked a complete list of measurements for all joined streams is displayed.
A search field allows the user to type a text string and the multicast list is updated to display only
multicasts matching the specified text. Note that monitoring parameters and thumbs will not be updated
in All streams (offline) mode.
VB2xx GigE User’s Manual version 5.4 79
