FEF interval:
The number of T2-Frames between two FEF (Future Extension Frames)
parts.

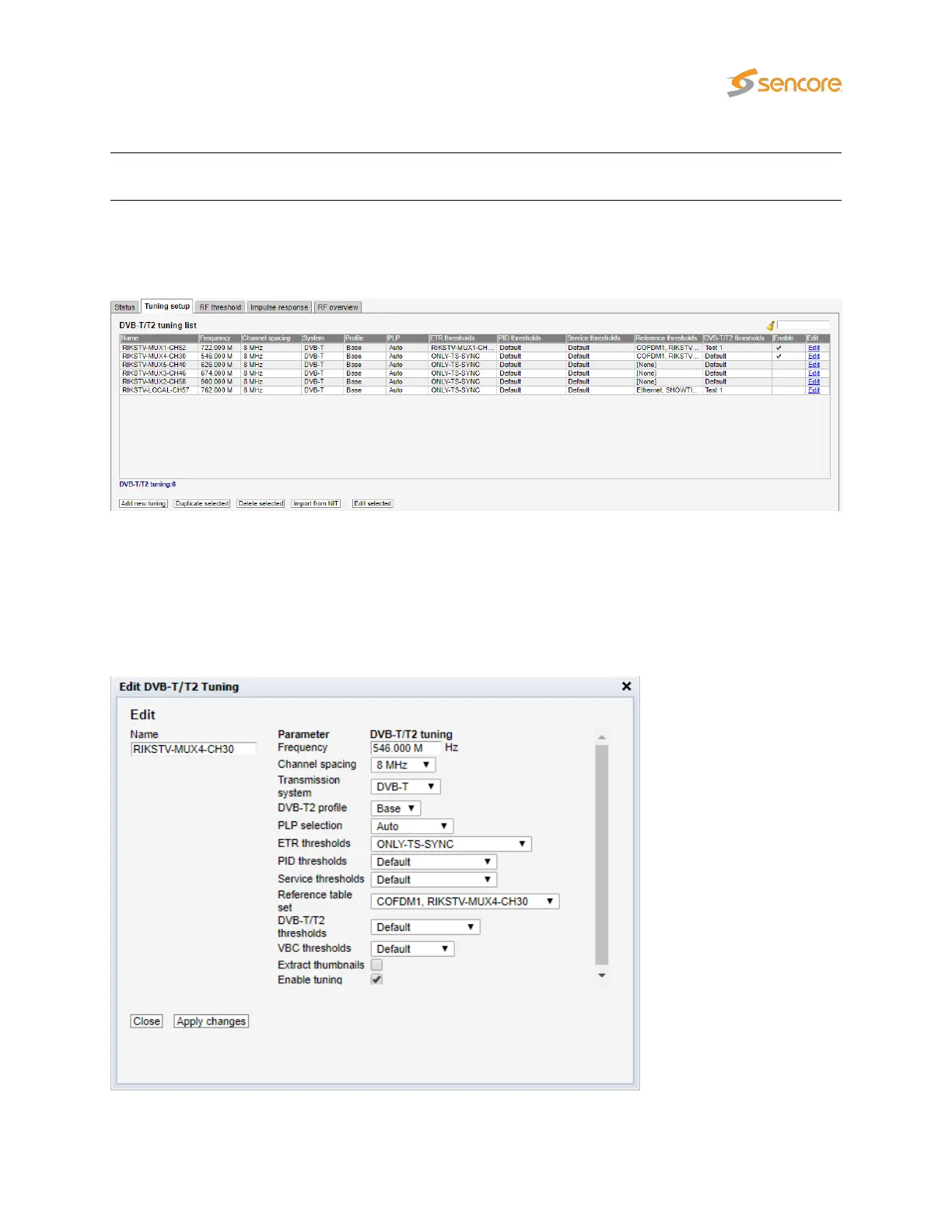

6.12.2 COFDM — Tuning setup
In this view the operator can define frequencies that will be used by the RF demodulator for tuning.
A name is associated with each tuning configuration, and this name will be used by the probe when
referring to the stream. The frequencies and some associated key parameters are shown in the tuning
list. Each entry in the list may be edited by clicking the Edit field.
To add a new frequency to the list click the
Add new tuning
button. A pop-up window will appear allowing
the user to enter tuning parameters.
VB2xx GigE User’s Manual version 5.4 185
