DiSEqC:
The satellite front-end module supports DiSEqC 1.2 signaling. The operator
can enable a particular DiSEqC message to be transmitted towards the
antenna for each frequency defined in the tuning setup typically used to
control L-band switches. Specifically, the message sent has the format (0xE0
0x10 0x38 N), where N is a byte configurable by the user to be between
0x00 and 0x0f. This is the command 0x38 “Write to Port group 1 (Committed
switches)”.
Min. Symbol rate: The SAT symbol rate in Msym/s
PL scrambling mode:
The PL scrambling mode selected: None, Gold, Root – applies only to
DVB-S2
PL scrambling code: The PL scrambling code: 0-262141 – applies only to DVB-S2

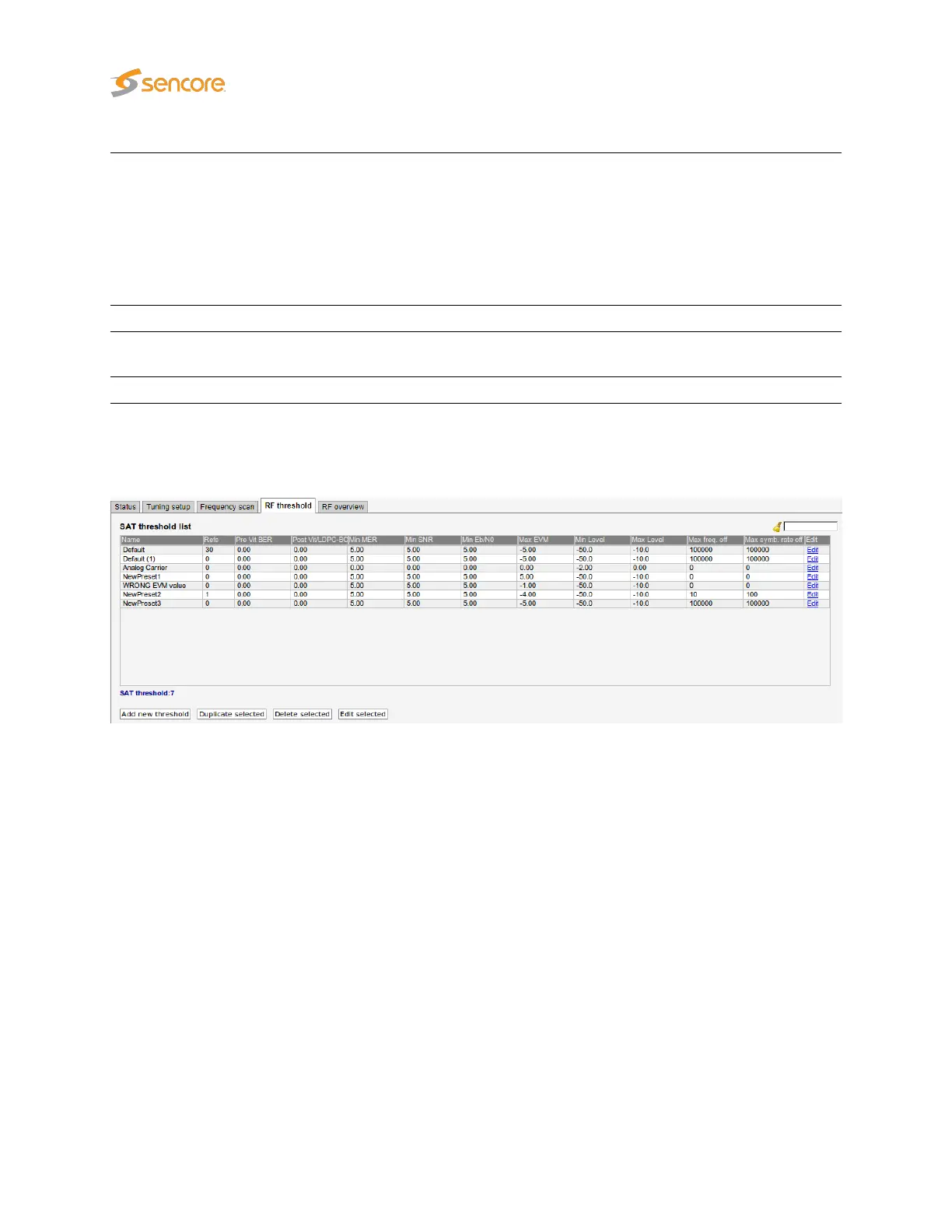

6.15.4 SAT — SAT threshold
The probe will raise an alarm if one of the threshold settings associated with a SAT frequency is violated.
Note that this alarm may be disabled in the ETR 290 — ETR thr. — Edit view (Input interface checks).
To add a new threshold template to the list click the
Add new threshold
button. A pop-up window will
appear allowing the user to enter parameters.
The predefined threshold templates Default and Analog carrier cannot be edited or deleted.
214 VB2xx GigE User’s Manual version 5.4
