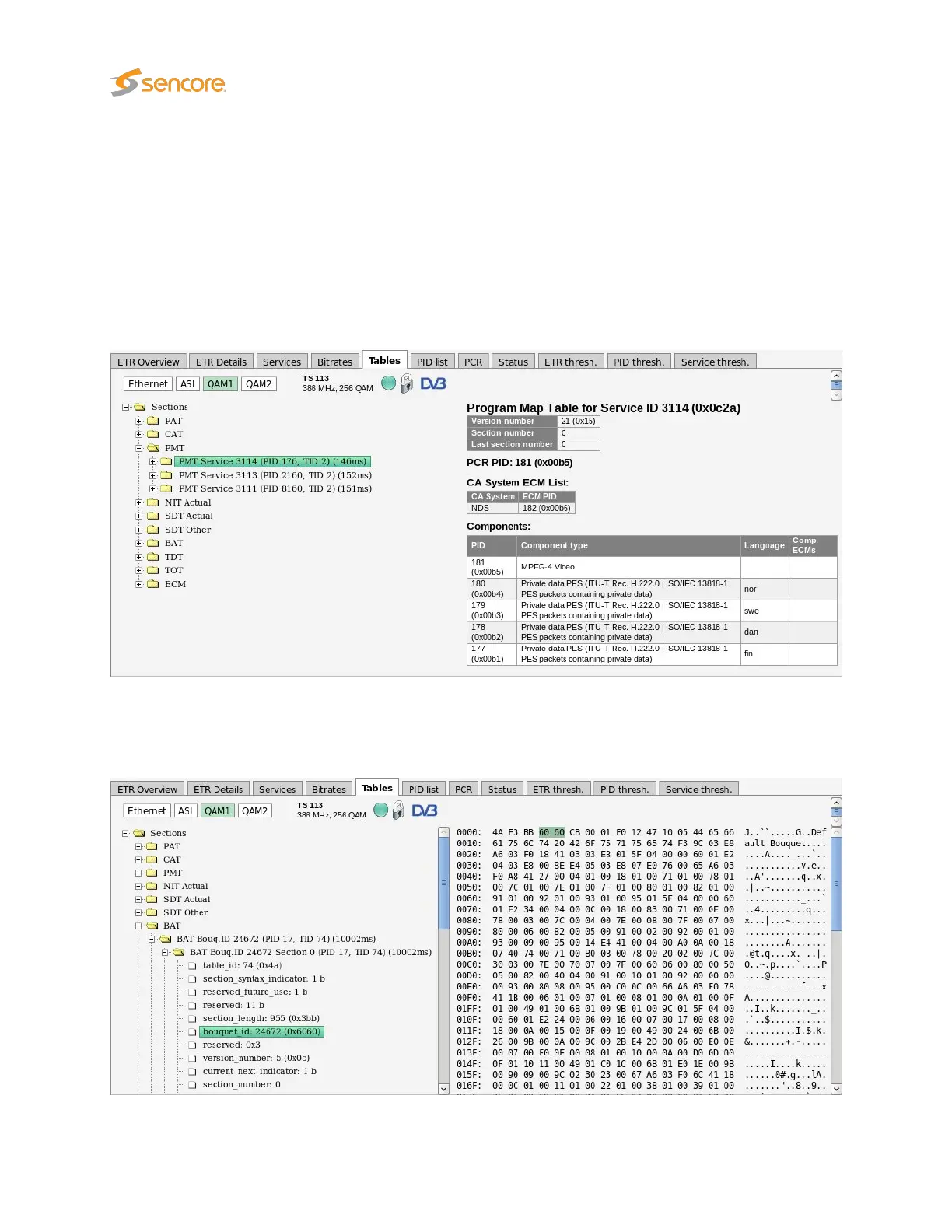

This view lists the PSI and SI or ATSC tables and table contents of the currently active stream of the
selected input.
The name of the current stream is displayed in addition to the two round-robin indicator icons when
relevant: the time cycle icon and the lock icon. By clicking the lock icon the round-robin cycling is stopped
or resumed. A DVB or ATSC icon indicates the analysis mode. The analysis mode is defined as part of
the ETR thresholds.
Clicking the ‘Sections’ node displays detected tables and associated repetition rates.
Clicking a table enables viewing the table contents in a readily readable format.
By clicking the plus-icon at a table the table contents is displayed in detail.
Clicking one of the table entries will allow viewing the table contents as a hexadecimal dump for detailed
inspection.
136 VB2xx GigE User’s Manual version 5.4
