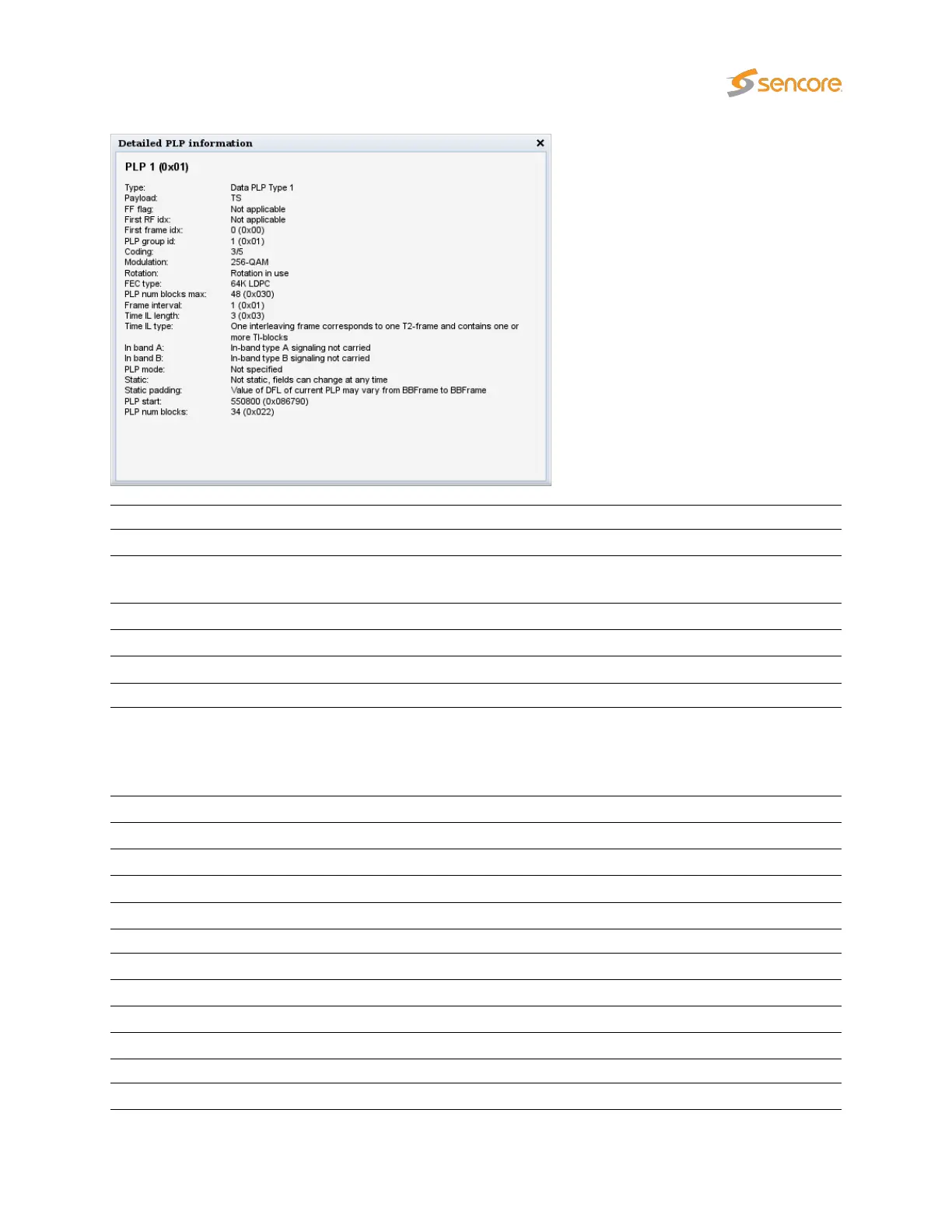

Detailed PLP information:
PLP: The ID of the signaled PLP.
Type:
The signaled type of the PLP. Data PLP Type 1 is the most common, some
signals can have a common PLP as well as well as other PLP types.
Payload: Payload type of this PLP. Will typically be the Transport Stream format
FF flag: The FF flag value.
First RF idx: The first first RF index used for transmitting this PLP.
First frame idx: The first frame index used to transmit this PLP.
PLP group id:
The group signaled for this PLP. The PLPs in a group shares one common
PLP and when analyzing a PLP both the data in the specified PLP and
the common PLP in the same group (if present) are extracted. The PLP
contains PID which are shared such as PAT, SDT, NIT, CAT and EMMs.
Coding: The FEC coding scheme used for this PLP.
Modulation: Modulation used for transmitting this PLP.
Rotation: Specifies if IQ rotation is enabled for this PLP.
FEC type: Specifies the FEC coding type for this PLP.
PLP num blocks max: The maximum number of blocks which can be used by this PLP.
Frame interval: The frame interval for this PLP.
Time IL length: The length of the time interleaver.
Time IL type: The time interleaving type in use.
In band A: Says if in-band type A signaling is used for this PLP.
In band B: Says if in-band type B signaling is used for this PLP.
PLP mode: The PLP mode for this PLP.
Static: Says whether the PLP bandwidth is static or not static.
