Installation
Terminal assignment
Operating Instructions – MOVIDRIVE
®
modular
128
Representa-
tion

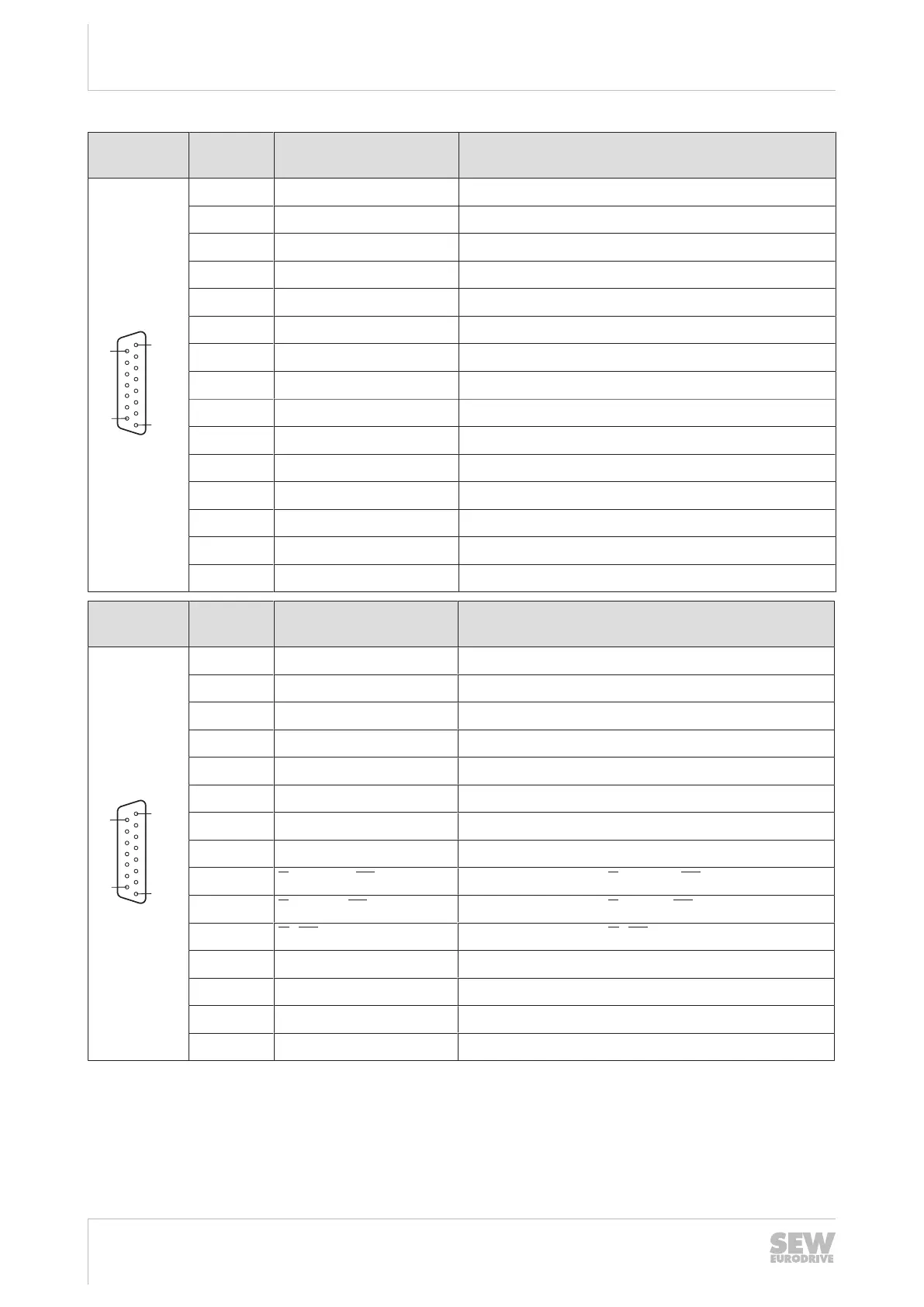

Terminal Connection Brief description motor encoder resolver
15
9
1
8
X15:1 S2 (SIN +) Signal track
X15:2 S1 (COS +) Signal track
X15:3 Reserved -
X15:4 Reserved -
X15:5 R1 (REF +) Supply voltage resolver
X15:6 -TEMP_M Motor temperature evaluation
X15:7 Reserved -
X15:8 Reserved -
X15:9 S4 (SIN -) Signal track
X15:10 S3 (COS -) Signal track
X15:11 Reserved -
X15:12 Reserved -
X15:13 R2 (REF -) Supply voltage resolver
X15:14 +TEMP_M Motor temperature evaluation
X15:15 Reserved -
Representa-
tion
Terminal Connection Brief description motor encoder Sin/Cos encoder,
TTL encoder
15
9
1
8
X15:1 A (COS +) (K1) Signal track A (COS+) (K1)
X15:2 B (SIN +) (K2) Signal track B (SIN+) (K2)
X15:3 C (K0) Signal track C (K0)
X15:4 DATA+
1)
Data cable for electronic nameplate
X15:5 Reserved –
X15:6 -TEMP_M Motor temperature evaluation
X15:7 Reserved –
X15:8 GND Reference potential
X15:9 A (COS -) (K1) Negated signal track A (COS-) (K1)
X15:10 B (SIN -) (K2) Negated signal track B (SIN-) (K2)
X15:11 C (K0) Negated signal track C (K0)
X15:12 DATA-
1)
Data cable for electronic nameplate
X15:13 U
S24VG
24 V encoder supply
X15:14 +TEMP_M Motor temperature evaluation
X15:15 U
S12VG
12 V encoder supply
1) For encoders from SEW‑EURODRIVE with electronic nameplate in type E.7S
