Technical Data
Technical data of braking resistors, filters and chokes
Operating Instructions – MOVIDRIVE
®
modular
242
Grid resistor mounting position 2
A
C
a
B
d
b
18874876043

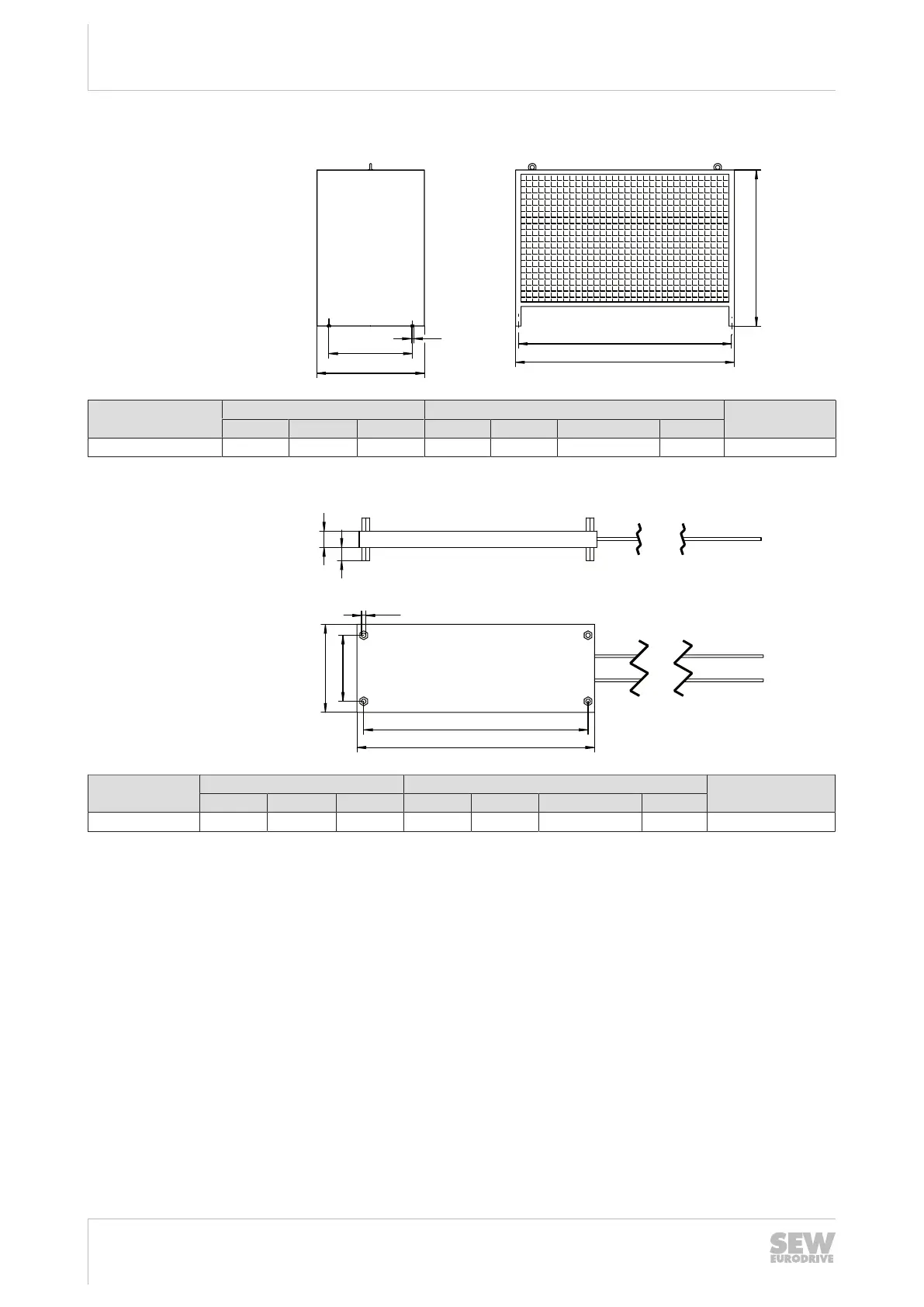

Braking resistor Main dimensions in mm Mounting dimensions in mm Cable gland
A B C a b d x
BW003-420-T 995 490 710 970 380 10.5 - -
Flat type resistor
A
a
B
b
M4
C
12
18874878475
Braking resistor Main dimensions in mm Mounting dimensions in mm Cable gland
A B C a b d x
BW047-002 110 80 15 98 60 - - -
