Technical Data
Technical data of braking resistors, filters and chokes
Operating Instructions – MOVIDRIVE
®
modular
241

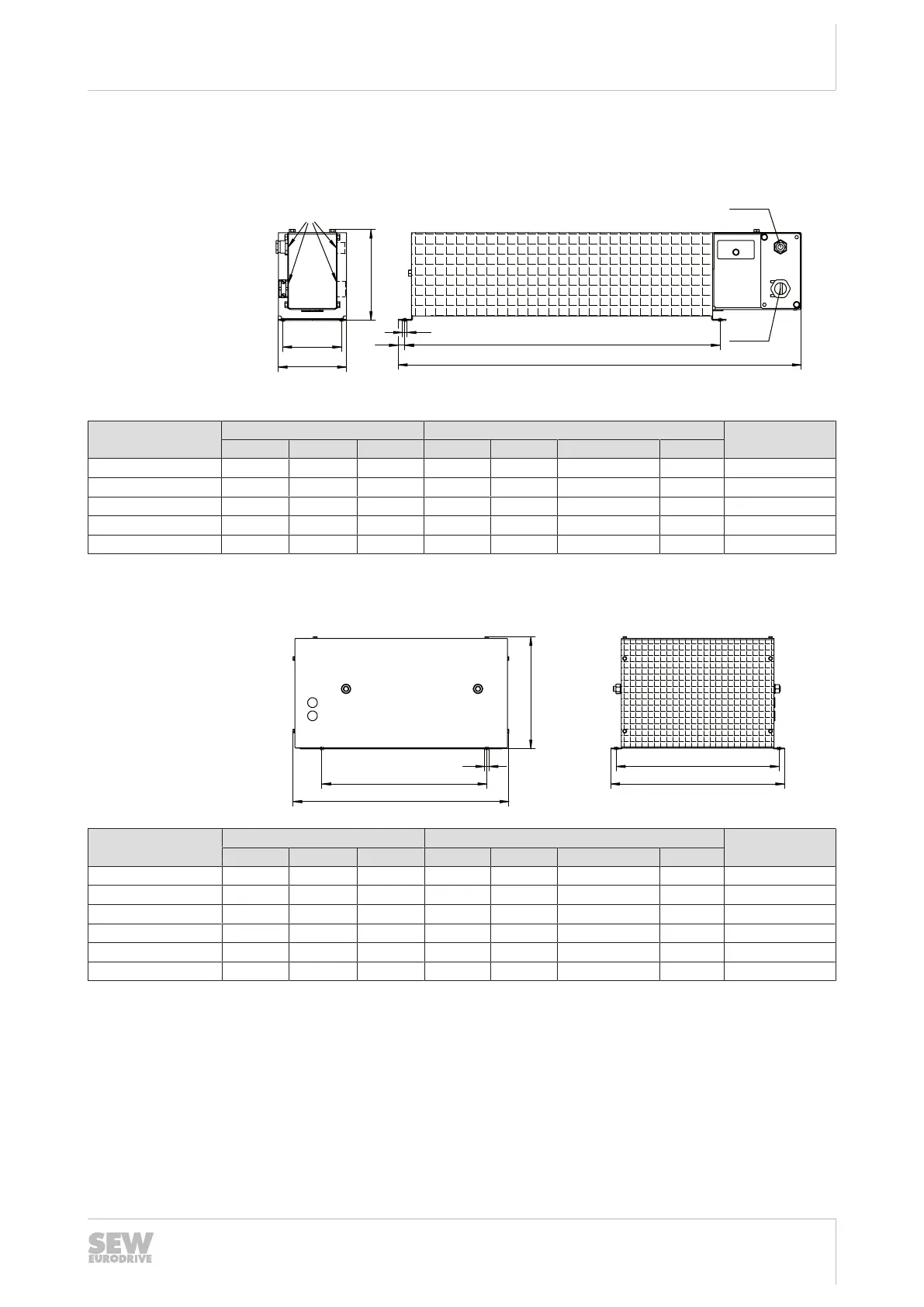

Dimension drawings and dimensions
Wire resistor
A
d
x a
M../PG..
M../PG..
C
B
b
[1]
18874863883
[1] Cable entry is possible from both sides.
Braking resistor Main dimensions in mm Mounting dimensions in mm Cable gland
A B C a b d x
BW47-010-T 749 92 125 630 80 6.5 8 M25+M12
BW027-016-T 649 185 125 530 150 6.5 8 M25+M12
BW027-024-T 649 275 125 530 240 6.5 8 M25+M12
BW012-016 649 185 120 530 150 6.5 8 M25
BW012-024 649 275 125 530 240 6.5 9 M25
Grid resistor mounting position 1
C
B
b
d
A
a
18874868747
Braking resistor Main dimensions in mm Mounting dimensions in mm Cable gland
A B C a b d x
BW012-050-T 395 490 260 370 380 10.5 - -
BW106-T 795 490 270 770 380 10.5 - -
BW206-T 995 490 270 970 380 10.5 - -
BW005-070 395 490 260 370 380 10.5 - -
BW004-050-01 395 490 260 370 380 10.5 - -
BW002-070 395 490 260 370 380 10.5 - -
24748536/EN – 11/2017
