BEFORE USING THE MACHINEâ–ºPERIPHERAL DEVICES
FINISHER (LARGE STACKER)
This device outputs sorted paper while staggering each set of paper. As needed, it staples each set. You can also
perform stapling manually. To punch holes in printed paper, install an optional hole punch module.

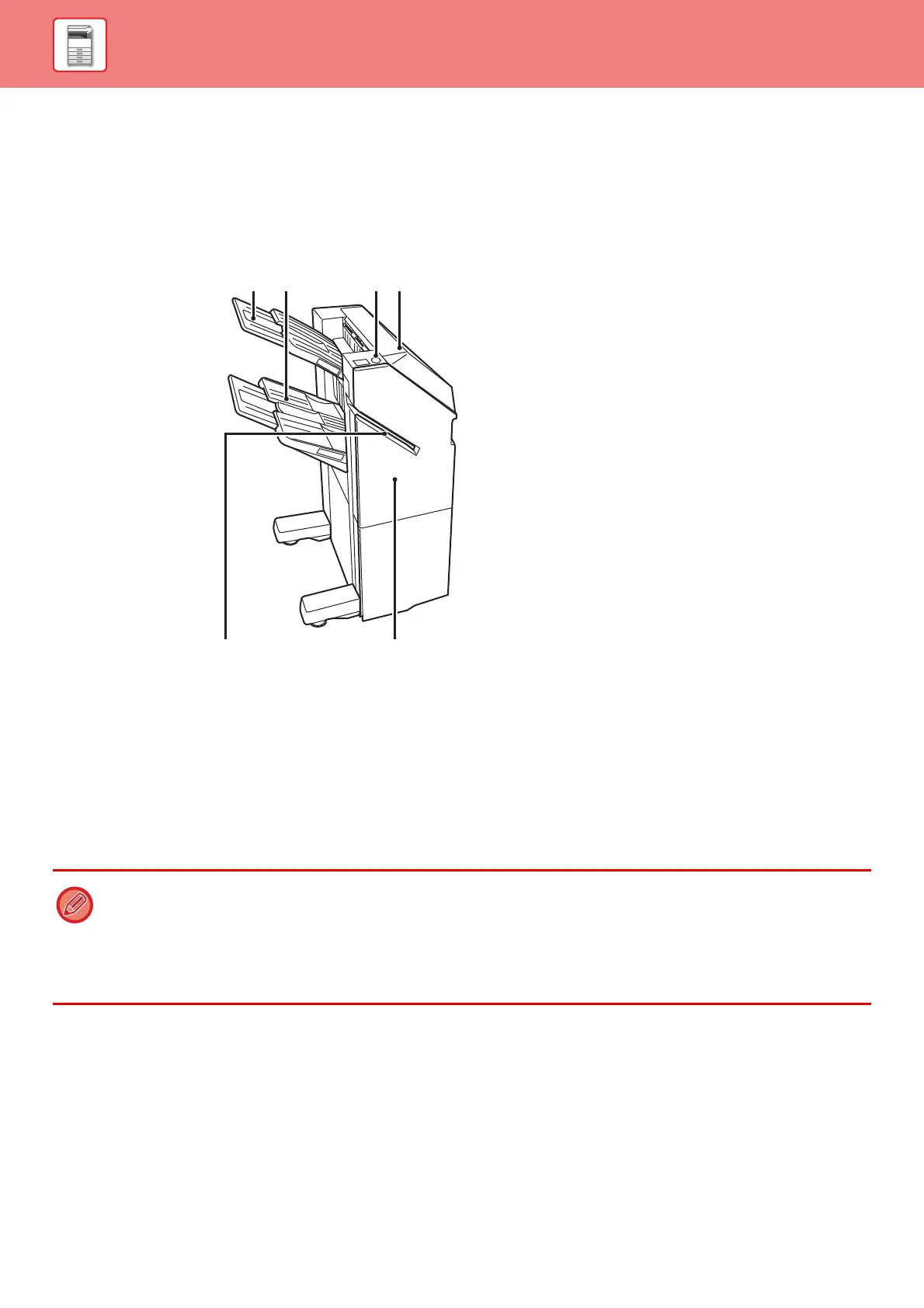

PART NAMES
(1) Output tray (upper tray)
The tray is slidable. To print on large paper such as A3
paper, extend the tray.
(2) Output tray (lower tray)
Stapled and offset output is delivered to this tray.
The tray is slidable. To print on large paper such as A3
paper, extend the tray.
(3) Manual staple key
Press to execute manual stapling.
(4) Top cover
Open this cover to remove a paper misfeed.
(5) Insertion slot
Place the paper that you want to staple in this slot.
Maximum thickness 9 mm.
(6) Front cover
Open this cover to replace the staple cartridge or remove
a staple jam.
• To install a finisher (large stacker), a paper pass unit and stand/550/2x550/3x550/550&2100 sheet paper drawer are
required.
• A finisher (large stacker) cannot be installed simultaneously with an inner finisher, finisher, saddle stitch finisher or saddle
stitch finisher (large stacker).
• Do not place heavy objects on the finisher (large stacker) or press down on the finisher (large stacker).
• Exercise caution when you turn on the power and when printing take place, as the tray may move up and down.
