MX-3114N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 1
MX-3114N
Service Manual
[4] EXTERNAL VIEW AND INTERNAL STRUCTURE

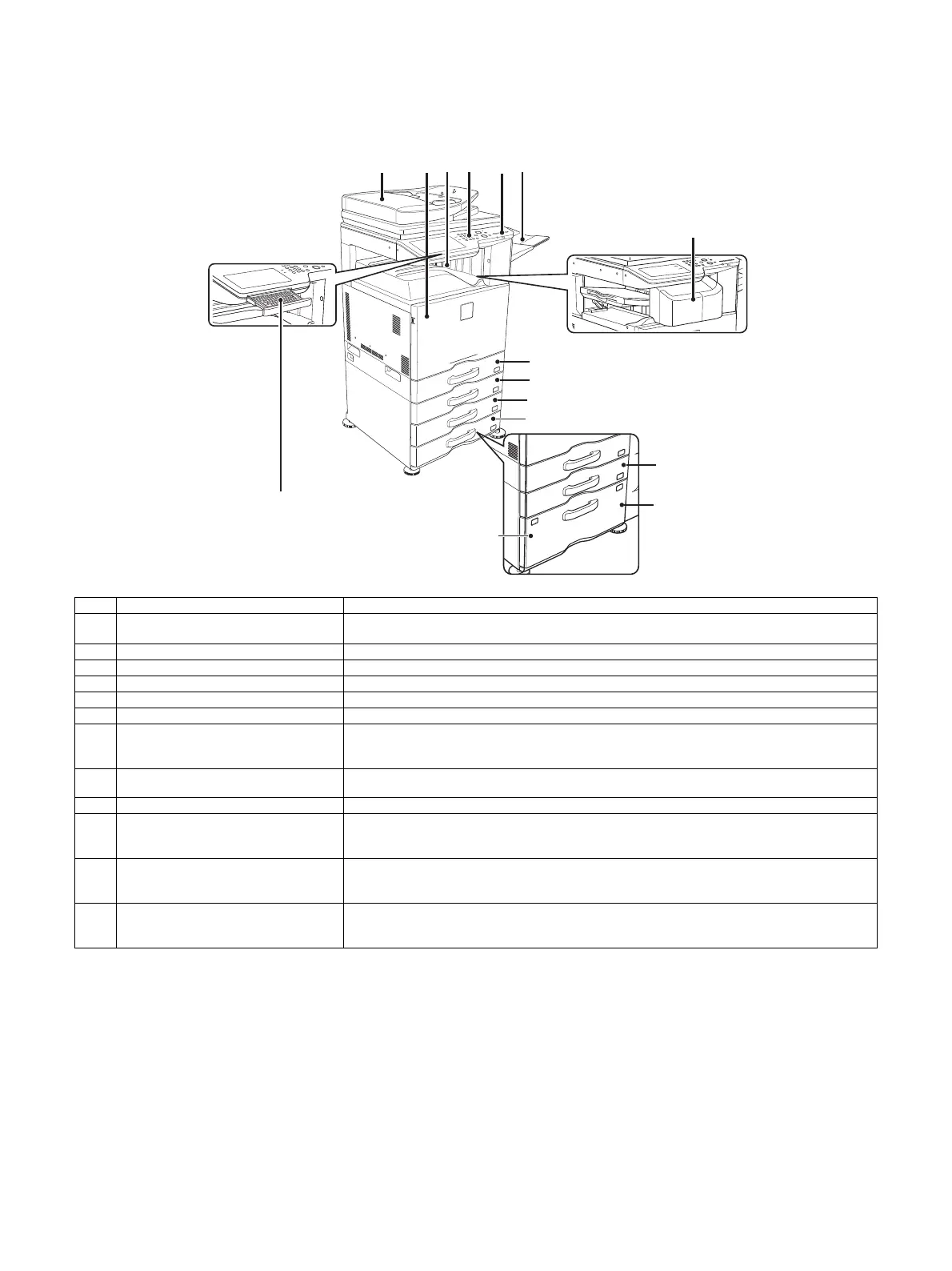

1. External view
*1: Peripheral device.
No. Name Function/Operation
1 Automatic document feeder This automatically feeds and scans multiple originals.
Both sides of 2-sided originals can be automatically scanned.
2 Front cover Open this cover to switch the main power switch to "On" or "Off" or to replace a toner cartridge.
3 Output tray (center tray) Output is delivered to this tray.
4 Operation panel This is used to select functions and enter the number of copies.
5 Exit tray unit (right exit tray)*
1
When installed, output can be delivered to this tray.
6 Finisher*
1
This can be used to staple output. A punch module can also be installed to punch holes in output.
7 USB connector (A type) Supports USB 2.0 (Hi-Speed).
This is used to connect a USB device such as USB memory to the machine.
For the USB cable, use a shielded cable.
8 Keyboard*
1
Use this as a substitute for the soft keyboard displayed on the touch panel.
When not being used, it can be stored under the operation panel.
9 Tray 1 This holds paper.
10 Tray 2 (When a paper feed tray is installed
or the Stand/500&2000 sheet paper drawer
is installed) *1
This holds paper.
11 Tray 3 (When a paper feed tray is installed
or the Stand/500&2000 sheet paper drawer
is installed) *1
This holds paper.
12 Tray 4 (When a paper feed tray is installed
or the Stand/500&2000 sheet paper drawer
is installed) *1
This holds paper.
To Next Page
