Sharp MX-2314N Service Manual

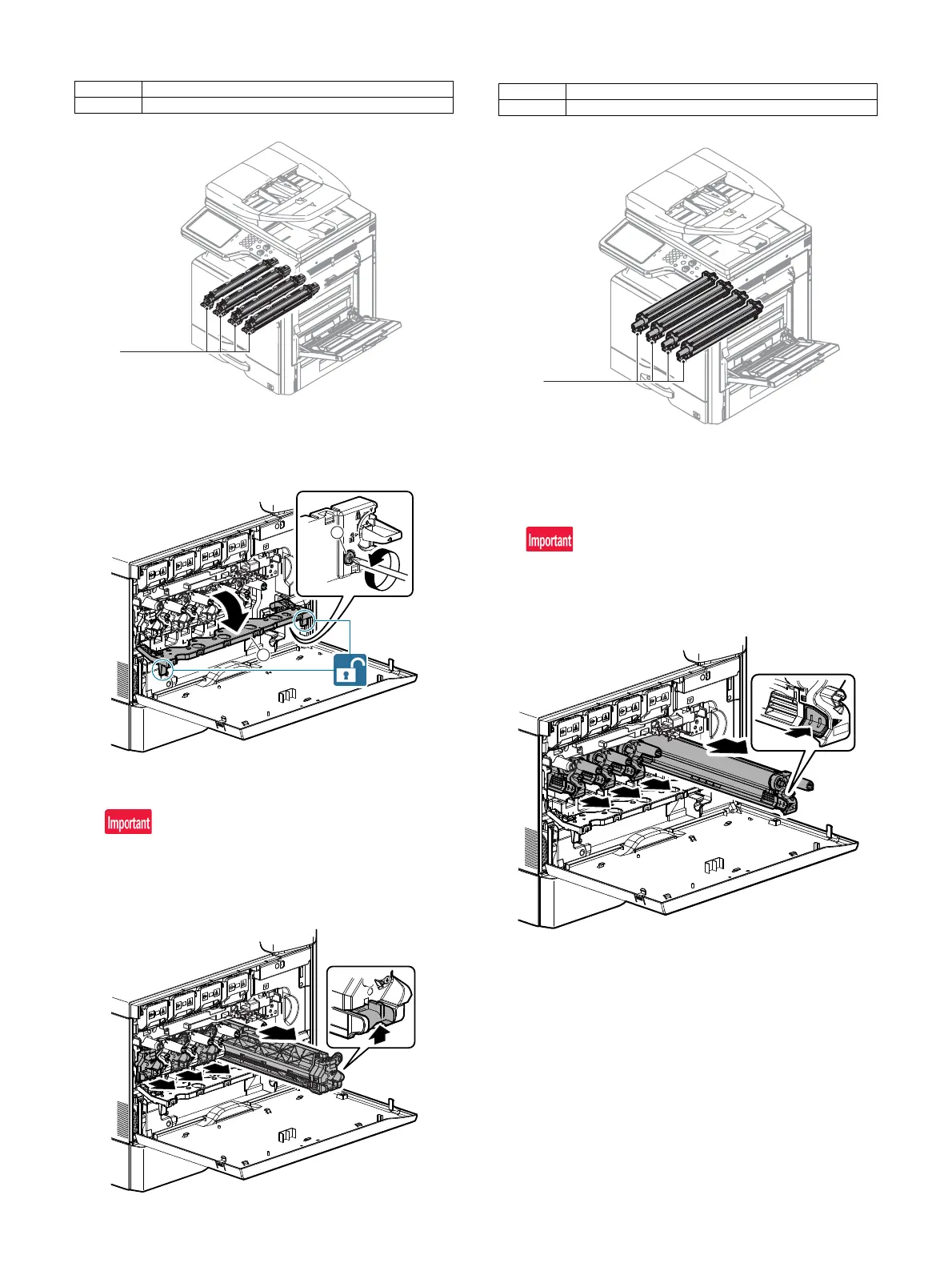

MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 7
F. Developing section
(1) Developing unit
1) Remove the waste toner box.
2) Turn the lock to release, and open the drum positioning cover.
3) While pressing the lever, pull out the developing unit to
remove.
When pulling out and pushing in the developing unit, put your
hand beneath the unit and slide it horizontally along the guide.
At the time, be careful not to touch the developing roller sur-
face.
G. OPC drum section
(1) OPC drum unit
1) Remove the waste toner box.
2) Remove the developing unit.
3) While pressing the lever, pull out the OPC drum to remove.
When pulling out and pushing in the OPC drum unit, put your
hand beneath the unit and slide it horizontally along the guide
on the right side.
At the time, be careful not to touch the OPC drum surface.
No. Name
1 Developing unit

1
2
No. Name
1 OPC drum unit


Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
