Sharp MX-2314N Service Manual

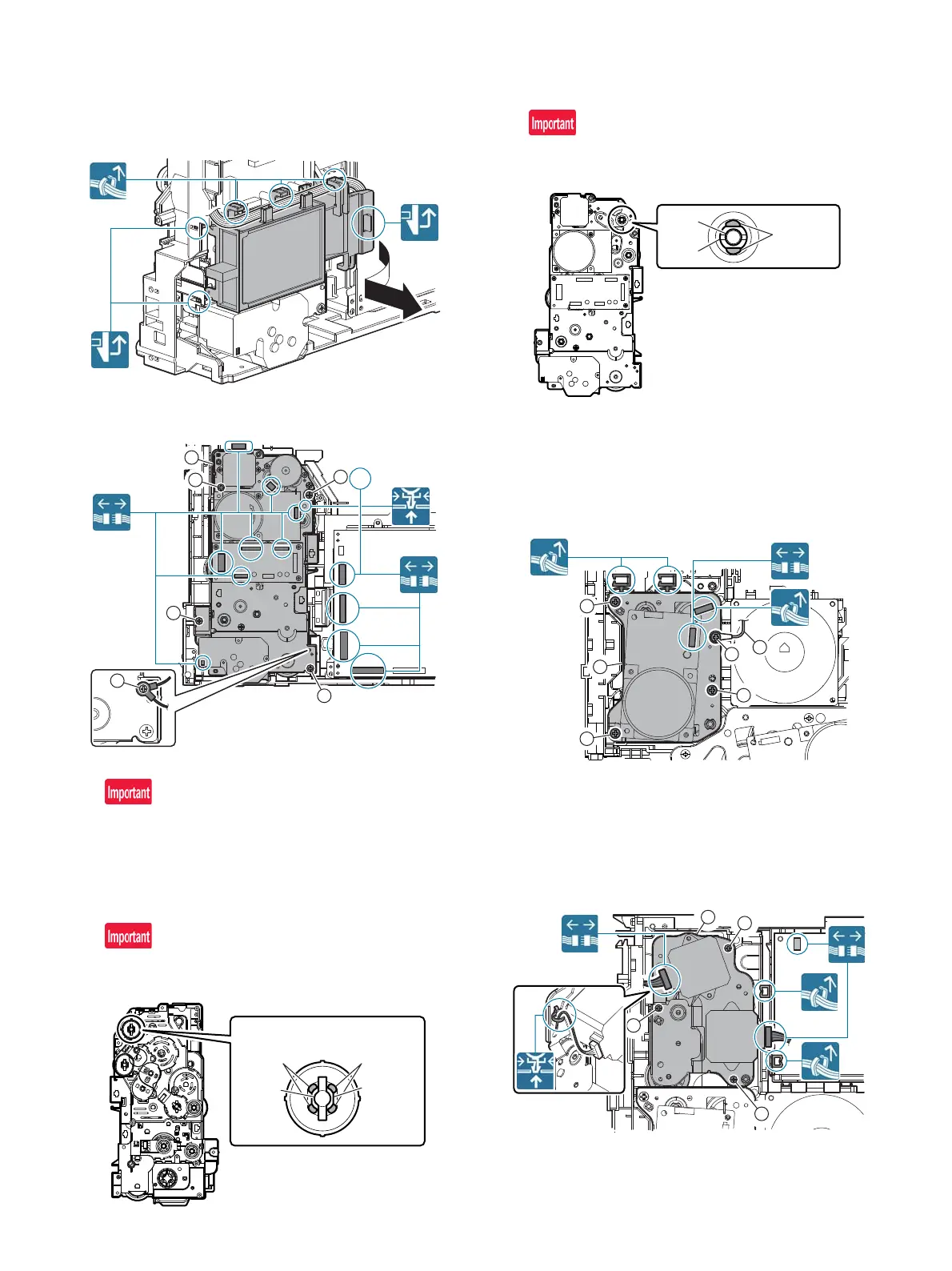

MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 16
(2) Transport drive unit
1) Remove the rear cabinet.
2) Open the right door.
3) Remove the ozone filter cover.
4) Remove the duct.
5) Remove the transport drive unit.
When the drive section is disassembled, apply screw lock to
the following sections:
Front side
Apply screw lock (0.1g: about two rice grains) between the
bearing and the transport drive frame. (4 positions)
Be careful not to apply screw lock between the bearing and the
drive shaft.
Rear side
Apply screw lock (0.1g: about two rice grains) between the
bearing and the transport drive frame. (2 positions)
Be careful not to apply screw lock between the bearing and the
drive shaft.
(3) Fusing drive unit
1) Remove the rear cabinet upper.
2) Remove the rear cabinet.
3) Remove the ROM cover.
4) Remove the FAX unit.
5) Remove the fusing drive unit.
(4) Paper exit drive unit
1) Remove the rear cabinet upper.
2) Remove the rear cabinet.
3) Remove the ROM cover.
4) Remove the FAX unit.
5) Remove the paper exit drive unit.
3
3
3
3
4
1
Bearing
Apply screw
lock to this
position.
Apply screw
lock to this
position.
Drive
shaft
Bearing
Apply screw
lock to this
position.
Drive
shaft
2
1
3
3
3
4
1
1
1
2

Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
