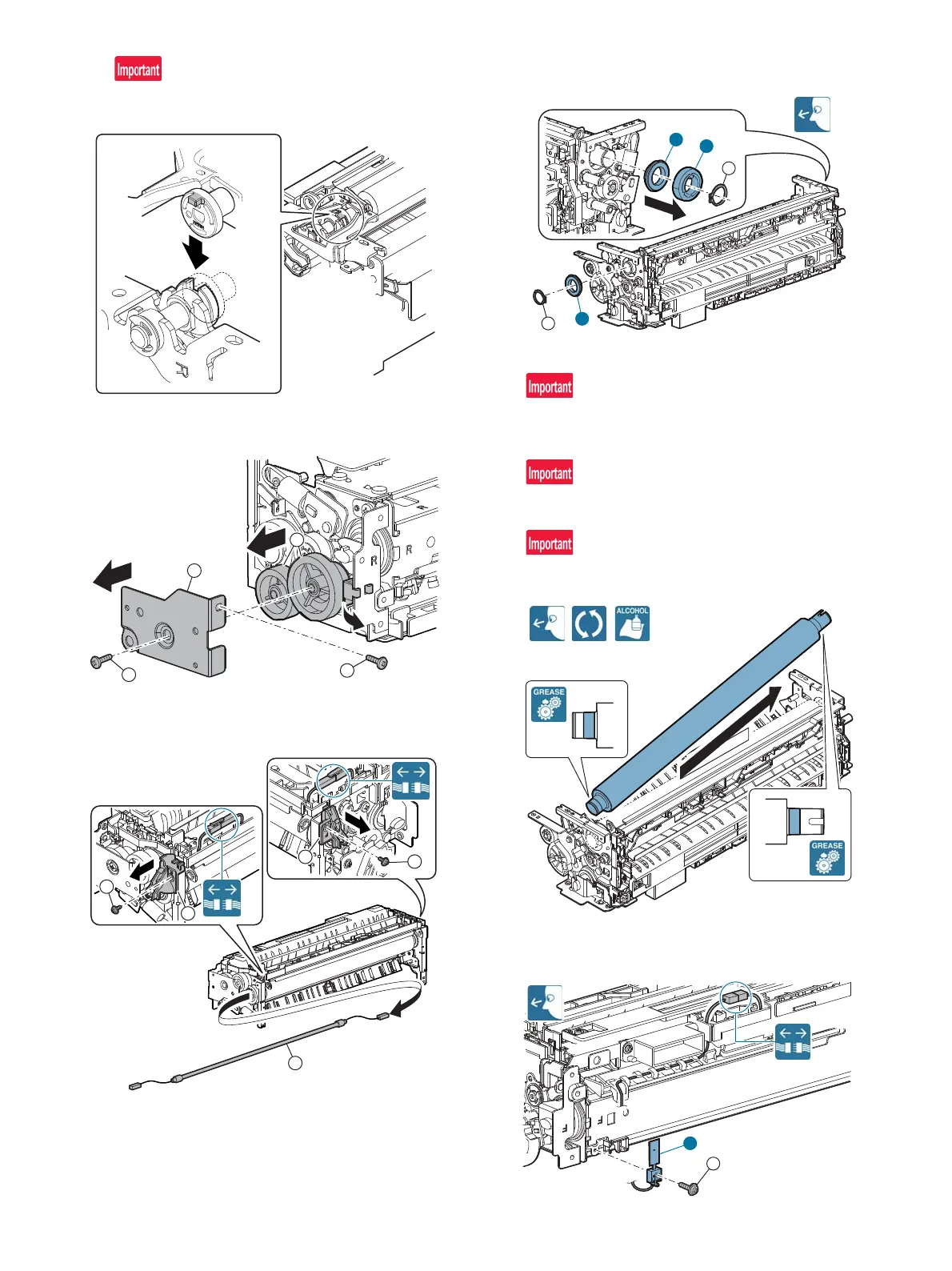

MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 51
When assembling the drive-type oil roller, fit the concave
section of the shaft with the convex pawl of the coupling.
2) Remove the drive plate, and remove the gear.
3) Disconnect the connector of the heater lamp. Remove the
holder, and remove the heater lamp.
4) Remove the C-ring, the pressure roller gear, and the pressure
roller gear bearing.
5) Remove the pressure roller.
When attaching the pressure roller, attach it with the protection
sheet on it. After completion of assembly, remove the protec-
tion sheet.
When replacing the pressure roller, apply grease (JFE552). In
addition, wipe the pressure roller surface with alcohol.
For removal of the pressure roller, remove the lower thermistor
then remove the roller.
f. Sub thermistor
1) Disconnect the connector, and remove the sub thermistor.
3
1
1
2
1
3
1
2
2
1
1
2
3
3
2
1
