Sharp MX-2314N Service Manual

MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 14

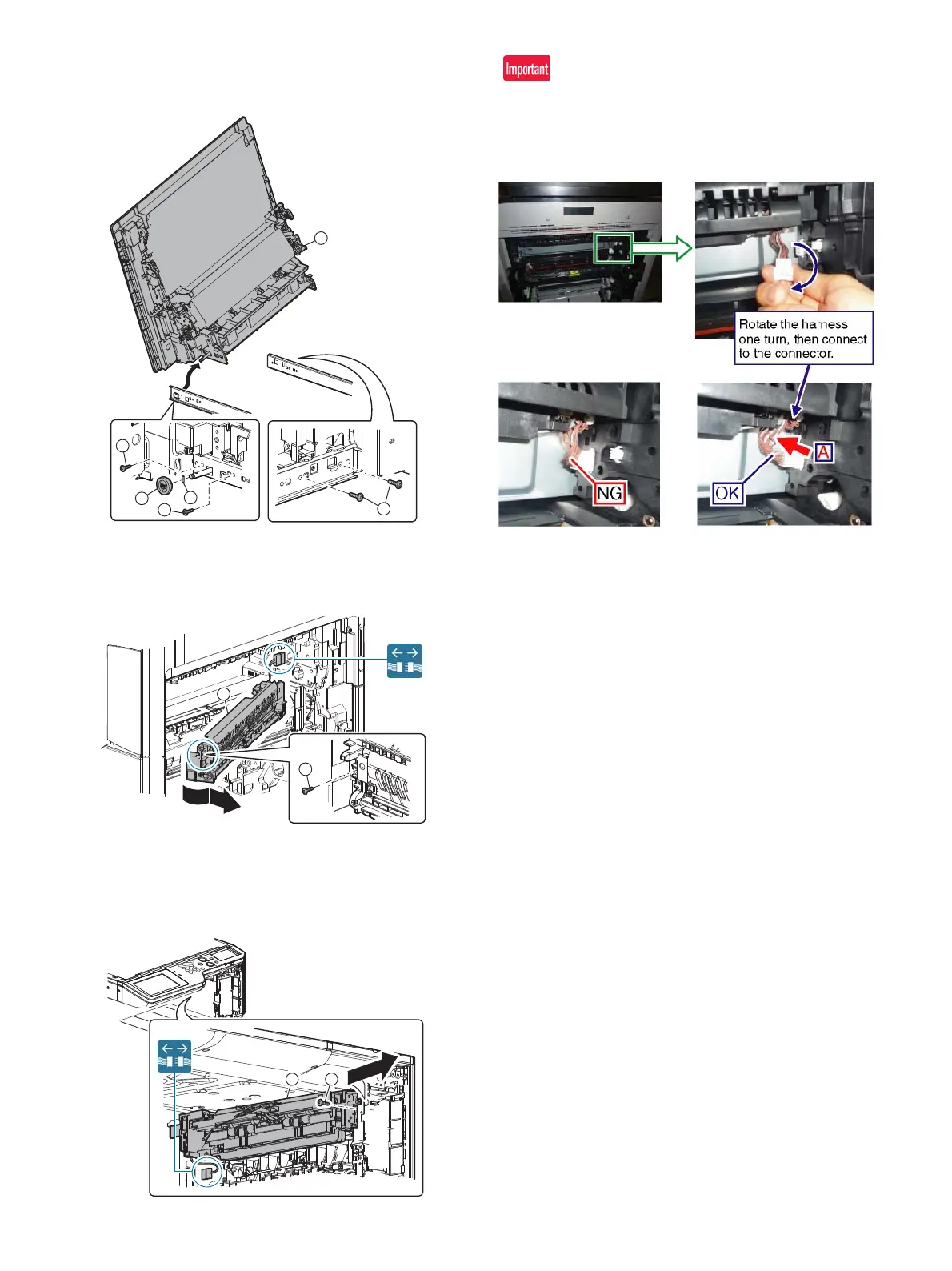

(3) Right door unit
1) Open the right door. Remove the gear, and remove the right
door.
(4) Fusing rear unit
1) Remove the fusing unit.
2) Remove the fusing rear unit.
(5) Paper exit unit
1) Remove the front cabinet upper.
2) Remove the paper exit tray.
3) Remove the paper exit unit.
When connecting the paper exit unit connector, rotate the harness
one turn clockwise as shown in the figure below so that the harness
faces toward the arrow A, and connect the connector.
This procedure is necessary for preventing the paper exit sensor
from disconnecting by contact with the harness.
1
2
3
3
3
4
1
2



Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
