Sharp MX-2314N Service Manual

MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 8

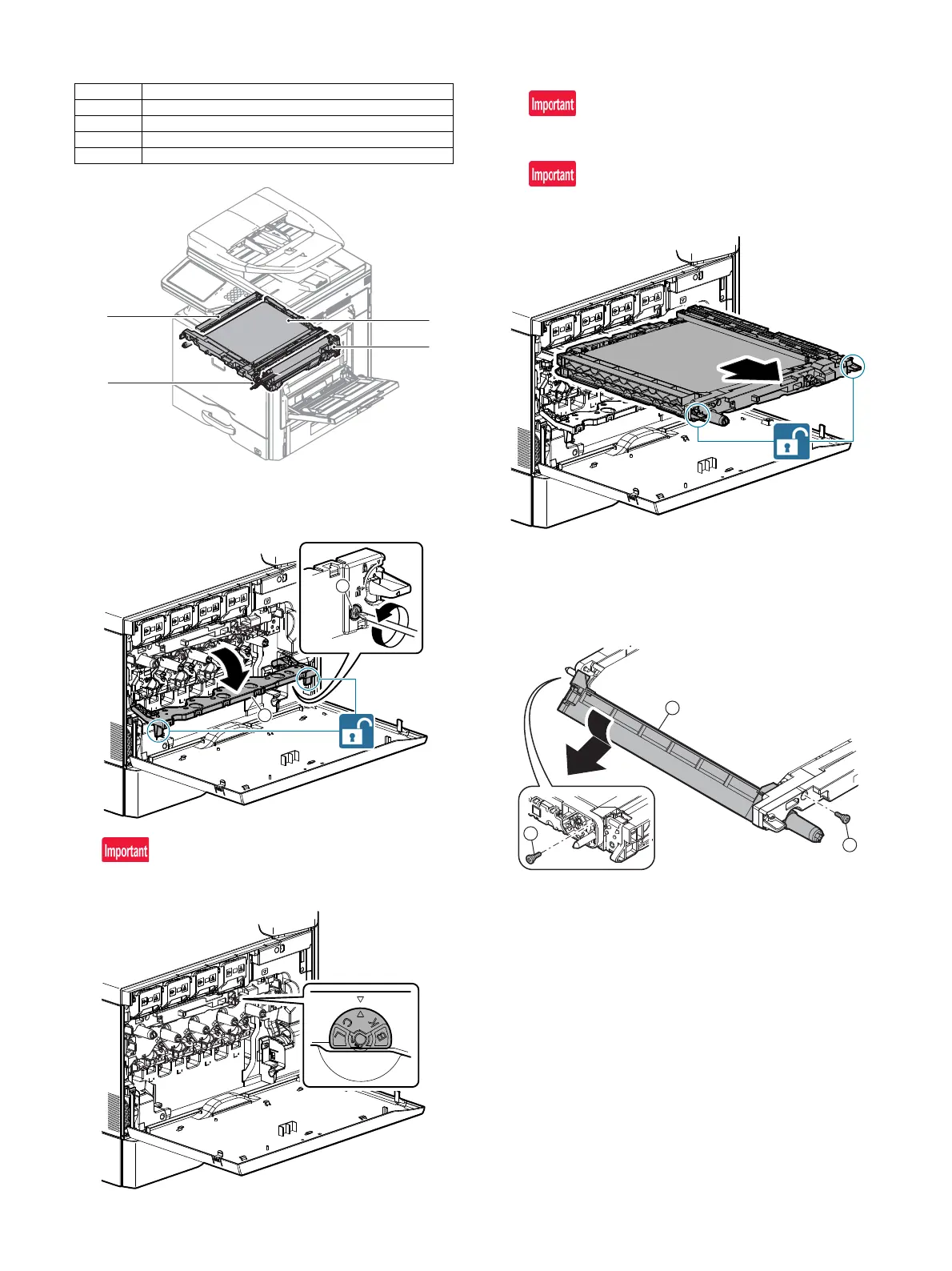

H. Transfer section
(1) Primary transfer unit
1) Remove the waste toner box.
2) Turn the lock to release, and open the drum positioning cover.
Before opening the drum positioning cover, check to confirm
that the transfer cam knob is at the free position.
3) Open the right door. Turn the lock to release, and pull out the
primary transfer unit to remove.
When removing the primary transfer unit, be sure to open the
right door in advance.
Be careful not to put foreign materials on the primary transfer
belt.
(2) Primary transfer cleaner unit
1) Remove the primary transfer unit.
2) Rotate the primary transfer cleaner unit 45 degrees downward
to remove.
No. Name
1 Primary transfer unit
2 Primary transfer cleaner unit
3 Secondary transfer unit
4 PTC unit




1
2
1
1
2
