Sharp MX-2314N Service Manual

MX-3114N MAINTENANCE 9 – 33

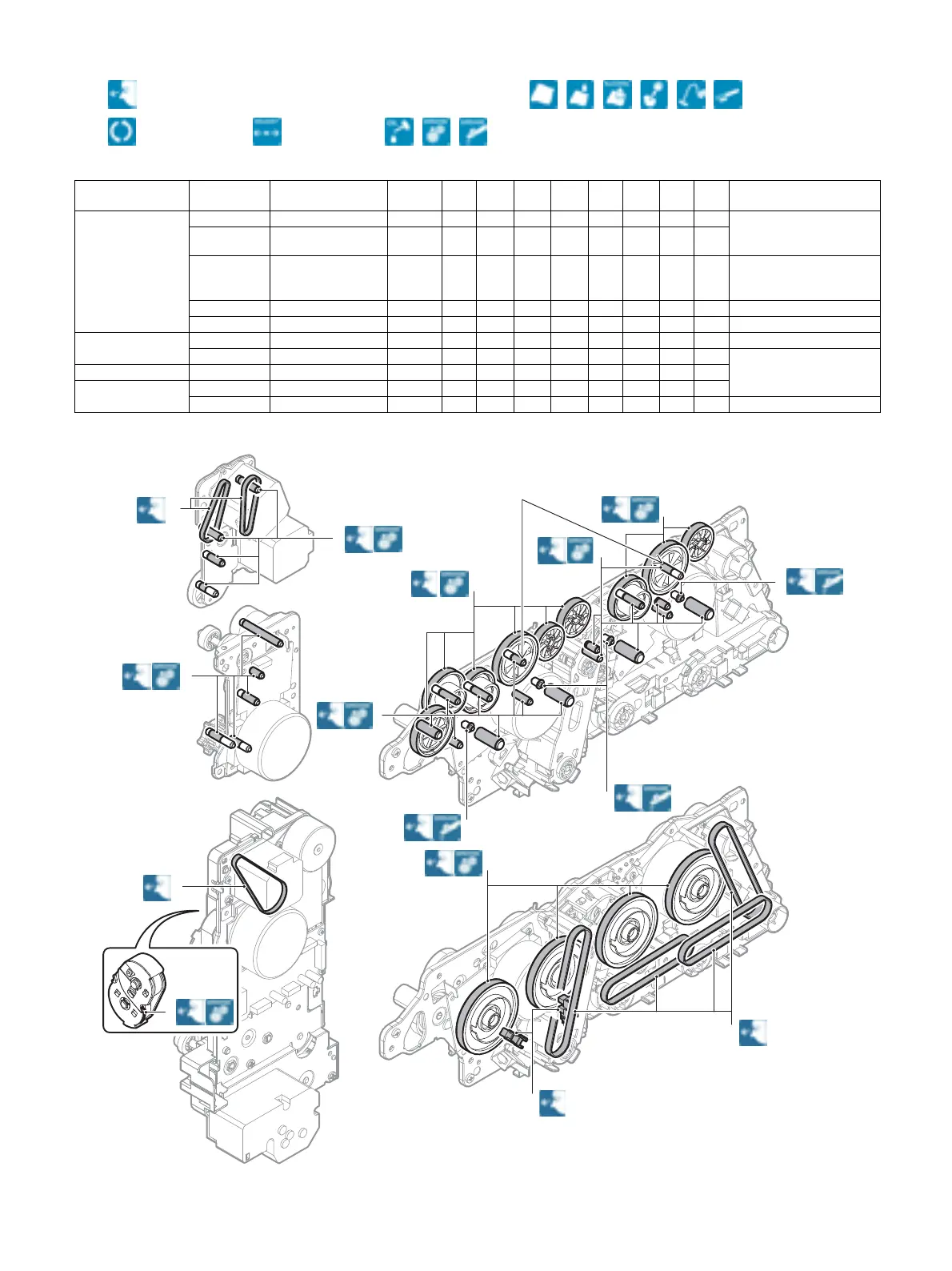

J. Drive section
23 cpm machine
Unit name
Parts work
sequence
Part name
When
calling
100
K
200
K
300
K
400
K
500
K
600
K
700
K
800
K
Remark
Main drive unit 1 Gears (grease) ✕✕✕✕✕✕✕✕✕Apply to the specified
position when checking.
FLOIL G-313S
2 Shafts (grease) ✕✕✕✕✕✕✕✕✕
3 Shaft earth sections
(conduction grease)
✕✕✕✕✕✕✕✕✕Apply to the specified
position when checking.
FLOIL GE-676
4Belts ✕✕✕✕✕✕✕✕✕
5 Sensors ✕✕✕✕✕✕✕✕✕
Transport drive unit 6 Belts ✕✕✕✕✕✕✕✕✕
7 Connection arm ✕✕✕✕✕✕✕✕✕Apply to the specified
position when checking.
HANARL FL-955R
Fusing drive unit 8 Shafts (grease) ✕✕✕✕✕✕✕✕✕
Paper exit drive unit 9 Shafts (grease) ✕✕✕✕✕✕✕✕✕
10 Belts ✕✕✕✕✕✕✕✕✕
g Check (Clean, replace, or adjust according to necessity.) Ũ : Clean
Ţ : Replace : Lubricateţ : Adjust ŭ
















