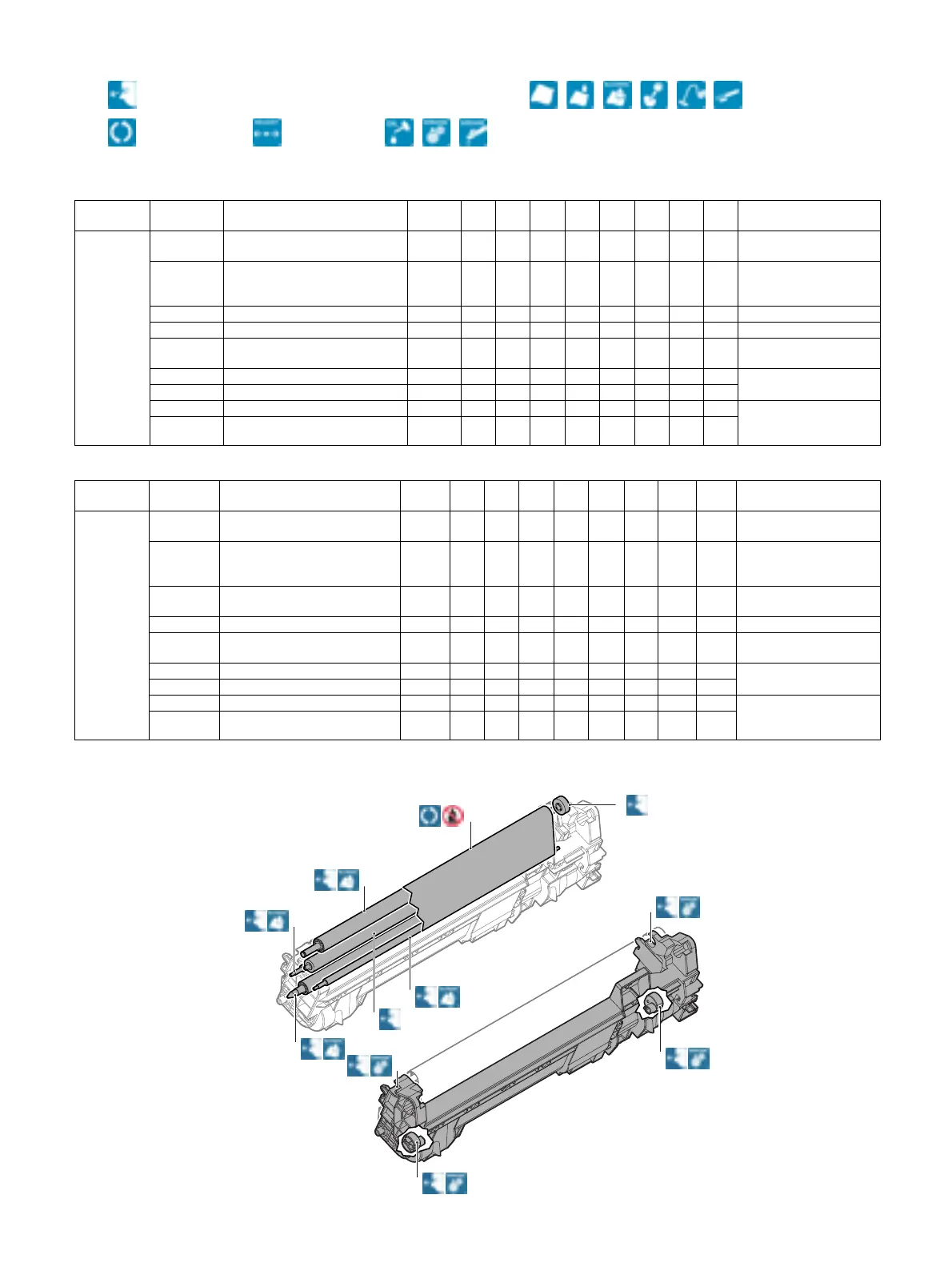

MX-3114N MAINTENANCE 9 – 25
(2) Secondary transfer unit
23 cpm machine
26 cpm/31 cpm machine
Unit name
Parts work
sequence
Part name
When
calling
100
K
200
K
300
K
400
K
500
K
600
K
700
K
800
K
Remark
Secondary
transfer unit
1 Secondary transfer belt follower
roller
––– –– ––
2 Secondary transfer belt – – –  –– – – Never use alcohol or
solvents for cleaning.
Replace at every 300K.
3 Secondary transfer belt drive roller – – –  –– ––
4 Secondary transfer backup roller – – –  –– ––
5 Secondary transfer belt tension
roller
––– –– ––
6 Secondary transfer roller – – – ✕ ––✕ – – Replace as needed.
7 Secondary transfer drive gear – – – ✕ ––✕ ––
8 Separation cam – – – ✩ ––✩ – – When replacing, apply
HANARL FL-955R to the
shaft section.
9 Secondary transfer frame – – – ✩ ––✩ ––
Unit name
Parts work
sequence
Part name
When
calling
200
K
300
K
400
K
600
K
800
K
900
K
1000
K
1200
K
Remark
Secondary
transfer unit
1 Secondary transfer belt follower
roller
✕ –  –  –  – 
2 Secondary transfer belt ✕ –  –

–  –

Never use alcohol or
solvents for cleaning.
Replace at every 300K.
3 Secondary transfer belt drive
roller
✕ –  –  –  – 
4 Secondary transfer backup roller ✕ –  –  –  – 
5 Secondary transfer belt tension
roller
✕ –  –  –  – 
6 Secondary transfer roller ✕ – ✕ – ✕ – ✕ – ✕ Replace as needed.
7 Secondary transfer drive gear ✕ – ✕ – ✕ – ✕ – ✕
8 Separation cam ✕ – ✩ – ✩ – ✩ – ✩ When replacing, apply
HANARL FL-955R to the
shaft section.
9 Secondary transfer frame ✕ – ✩ – ✩ – ✩ – ✩
g Check (Clean, replace, or adjust according to necessity.) Ũ : Clean
Ţ : Replace : Lubricateţ : Adjust ŭ
8
8
9
9
2
1
5
6
7
3
4
