Sharp MX-2314N Service Manual

MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 18

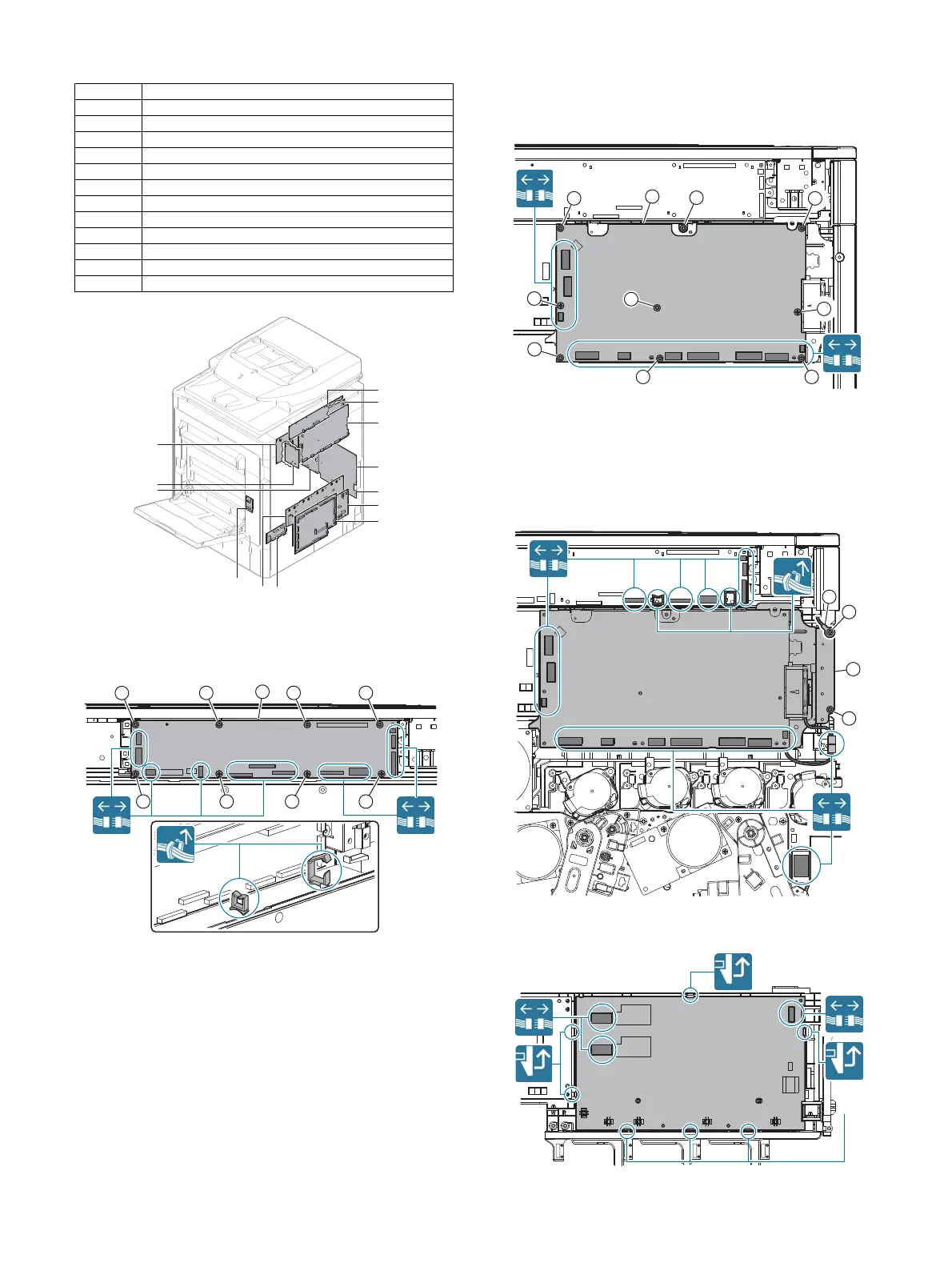

P. PWB section
(1) SCU PWB
1) Remove the rear cabinet upper.
2) Remove the SCU PWB.
(2) DC POWER PWB
1) Remove the rear cabinet upper.
2) Remove the rear cabinet.
3) Remove the DC POWER PWB.
(3) High voltage PWB (TC PWB)
1) Remove the rear cabinet upper.
2) Remove the rear cabinet.
3) Remove the left cabinet upper.
4) Remove the DC POWER PWB unit.
5) Remove the high voltage PWB (TC PWB).
No. Name
1 SCU PWB
2LD PWB
3 DC POWER PWB
4 High voltage PWB (TC PWB)
5 HL control PWB
6 PCU PWB
7 High voltage PWB (MC/DV PWB)
8 AC POWER PWB
9MFP control PWB
10 LSU mother PWB
11 Driver PWB
12 Right door PWB(26 cpm/31 cpm)














 


 
1
1
1
1
2
1
1
1 1
1
2
1
1
2

Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
