MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 19

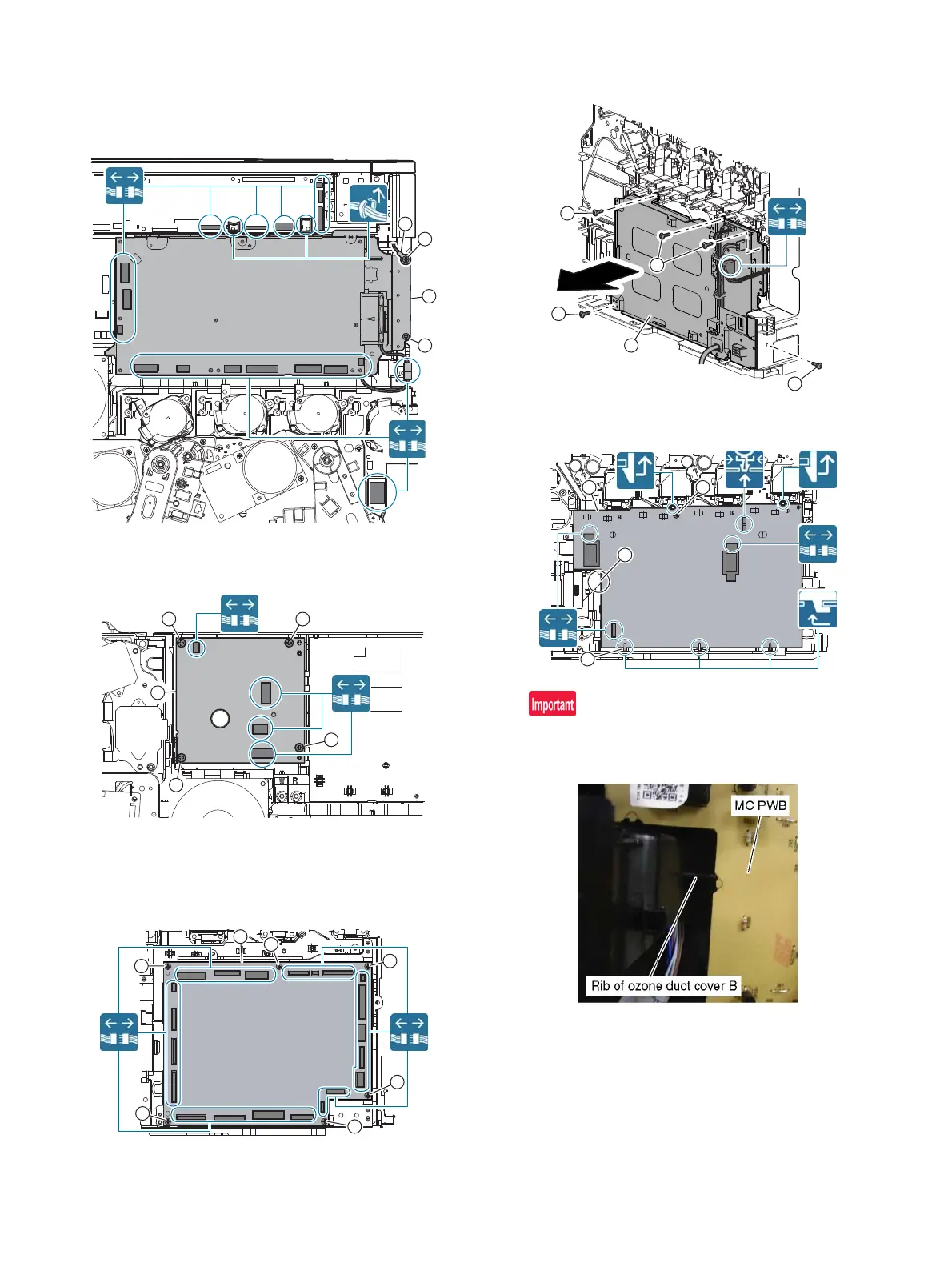

(4) HL control PWB
1) Remove the rear cabinet upper.
2) Remove the rear cabinet.
3) Remove the ROM cover.
4) Remove the DC POWER PWB unit.
5) Remove the HL control PWB.
(5) PCU PWB, High voltage PWB (MC/DV PWB)
1) Remove the rear cabinet.
2) Remove the PCU PWB.
3) Remove the left cabinet lower.
4) Remove the PCU PWB mounting plate.
5) Remove the high voltage PWB (MC/DV PWB).
Section A
Install so that the left edge of the MC PWB is fitted with the rib
of ozone duct cover B.
2
1
1
2
1
1
2
1
1
1
1
2
1
1
1
1
2
1
1
1
1
12
A
B
