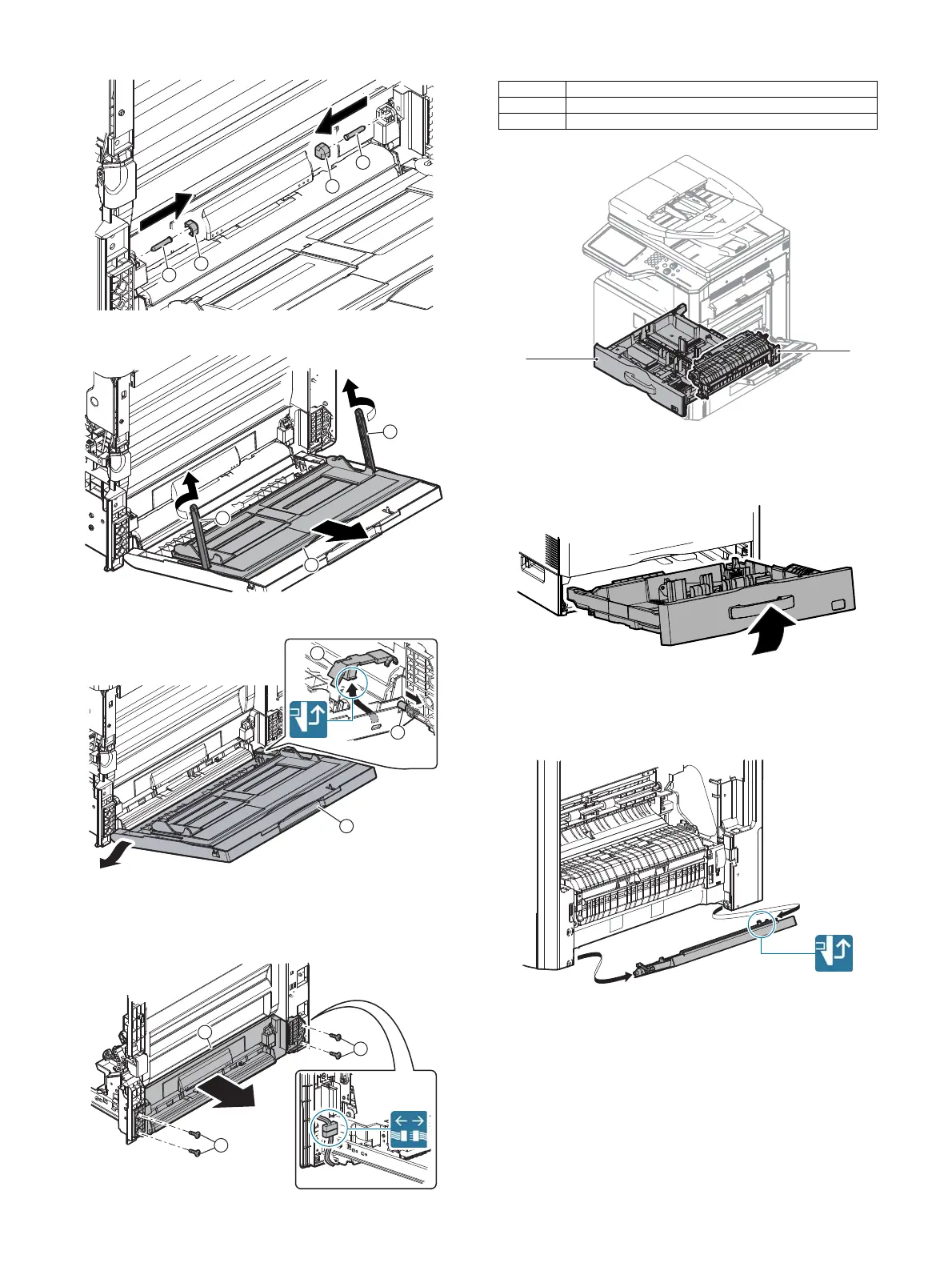

MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 12
5) Remove the shaft.
6) Slide the tray and remove the arm.
7) Remove the cover, and remove the manual paper feed tray.
(2) Manual paper feed unit
1) Remove the manual paper feed tray.
2) Remove the manual paper feed unit.
K. Tray paper feed section
(1) Paper feed tray
1) Pull out the paper feed tray, and lift and remove it.
(2) Tray paper feed unit
1) Remove the paper feed tray.
2) Remove the right door lower.
1
1
2
2
1
1
2
2
1
3
1
1
2
No. Name
1 Paper feed tray
2 Tray paper feed unit



Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
