Sharp MX-2314N Service Manual

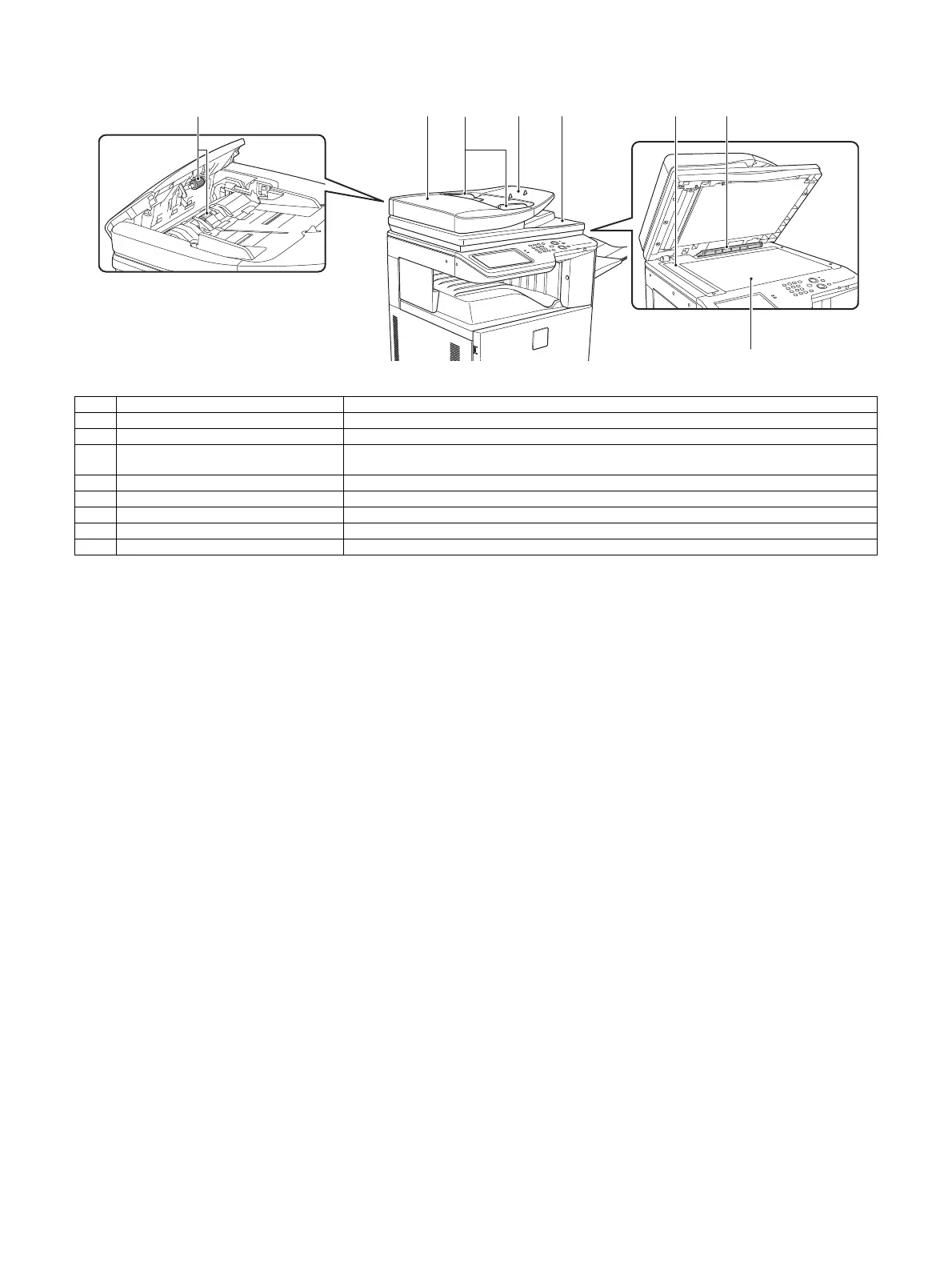

MX-3114N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 2
A. Automatic document feeder and document glass
No. Name Function/Operation
1 Paper feed roller This roller rotates to automatically feed the original.
2 Document feeding area cover Open this cover to remove an original misfeed or clean the paper feed roller.
3 Original guides These help ensure that the original is scanned correctly.
Adjust the guides to the width of the original.
4 Document feeder tray Place originals in this tray. 1-sided originals must be placed face up.
5 Original exit tray Originals are delivered to this tray after scanning.
6 Scanning area Originals placed in the document feeder tray are scanned here.
7 Original size detector This detects the size of an original placed on the document glass.
8 Document glass Use this to scan a book or other thick original that cannot be fed through the automatic document feeder.

  





Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
