Sharp MX-2314N Service Manual

MX-3114N MAINTENANCE 9 – 28

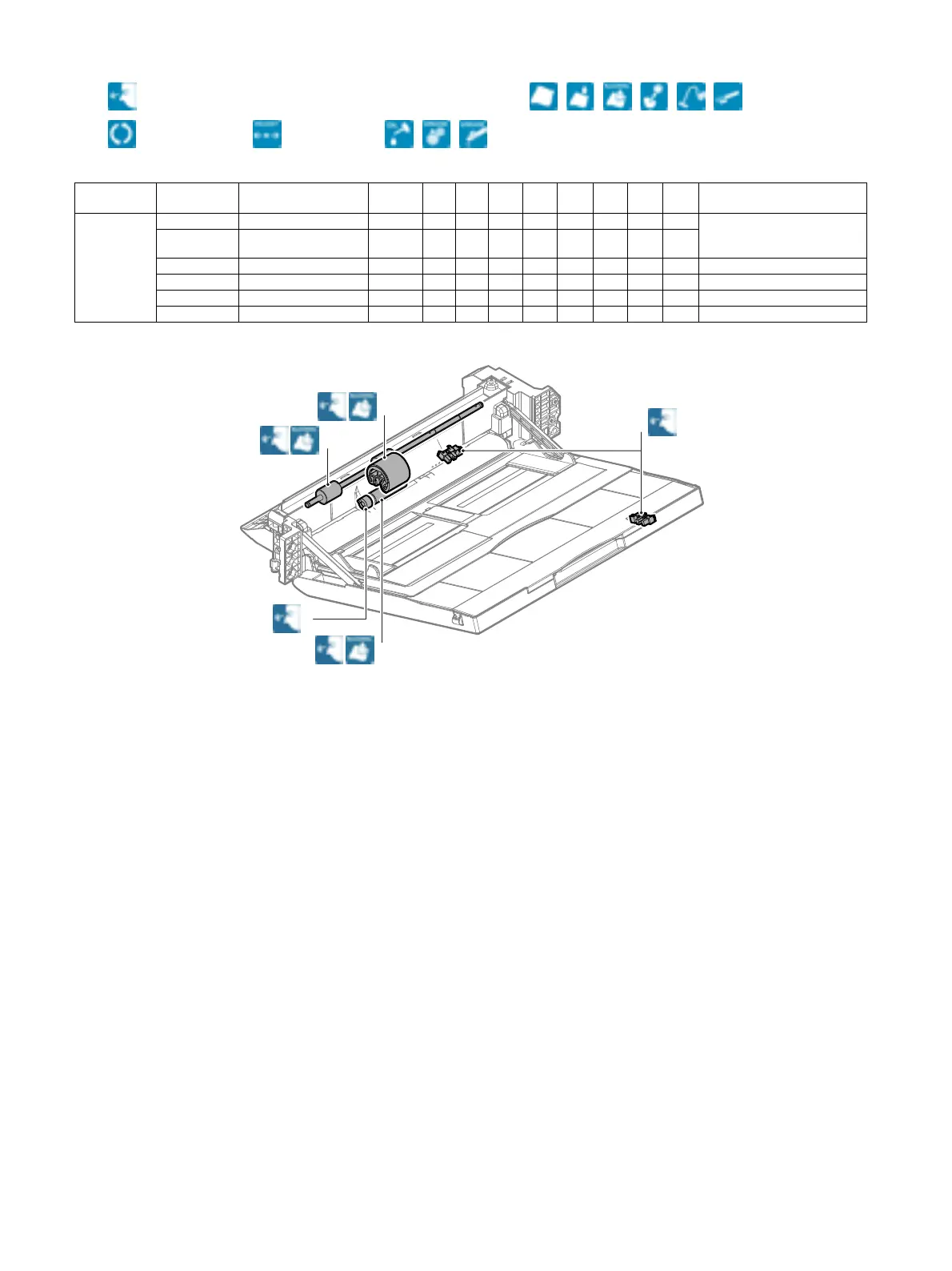

G. Manual paper feed section
23 cpm machine
Unit name
Parts work
sequence
Part name
When
calling
100
K
200
K
300
K
400
K
500
K
600
K
700
K
800
K
Remark
Manual paper
feed unit
1 Paper feed roller ✕      Replace at 100K of the manual
paper feed counter or 1 year of
use.
2 Separation roller ✕      
3 Torque limiter ✕ ✕✕✕✕✕✕✕✕
4 Transport roller 9 ✕      
5Sensors ✕ ✕✕✕✕✕✕✕✕
– Paper guides Clean with alcohol.
g Check (Clean, replace, or adjust according to necessity.) Ũ : Clean
Ţ : Replace : Lubricateţ : Adjust ŭ
1
5
2
3
4

Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
