Sharp MX-2314N Service Manual

MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 17

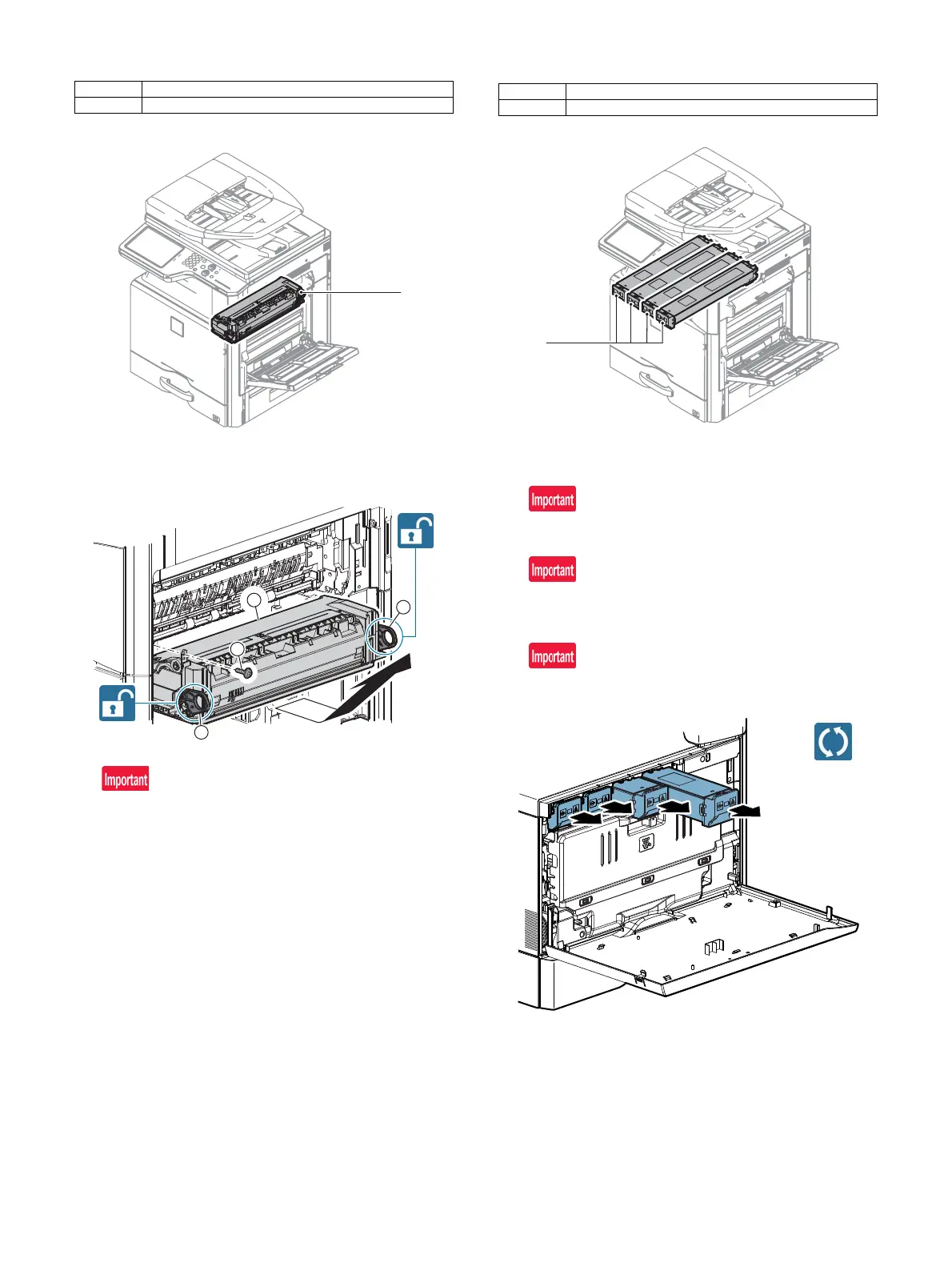

N. Fusing section
(1) Fusing unit
1) Open the right door. Release lock, and remove the fusing unit.
When carrying the fusing unit, be sure to hold the both levers
on the F and R sides of the fusing unit. If only one lever is held
to carry the unit, it may be broken.
O. Toner supply section
(1) Toner cartridge
1) Open the front cabinet, and remove the toner cartridge.
Do not install a toner cartridge of a different color. Be sure to
install a toner cartridge of the same color.
When installing, do not insert with great force.
When inserting, put your hand on it to the end until it locks
securely.
When the machine is moved with the developing unit removed,
be sure to remove the toner cartridge. (If not, toner may clog.)
No. Name
1 Fusing unit

3
1
2
2
No. Name
1 Toner cartridge


Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
