MX3114N TROUBLESHOOTING 7 – 1
MX3114N
Service Manual
[7] TROUBLESHOOTING
1. Error code and troubleshooting
A. General
When a trouble occurs in the machine or when the life of a consum-
able part is nearly expired or when the life is expired, the machine
detects and displays it on the display section. This allows the user
and the serviceman to take the suitable action. In case of a trouble,
this feature notifies the occurrence of a trouble and stops the
machine to minimize the damage.
B. Function and purpose
1) Securing safety. (The machine is stopped on detection of a
trouble.)
2) The damage to the machine is minimized. (The machine is
stopped on detection of a trouble.)
3) By displaying the trouble content, the trouble position can be
quickly identified. (This allows to perform an accurate repair,
improving the repair efficiency.)
4) Preliminary warning of running out of consumable parts allows
to arrange for new parts in advance of running out. (This
avoids stopping of the machine due to running out the a con-
sumable part.)

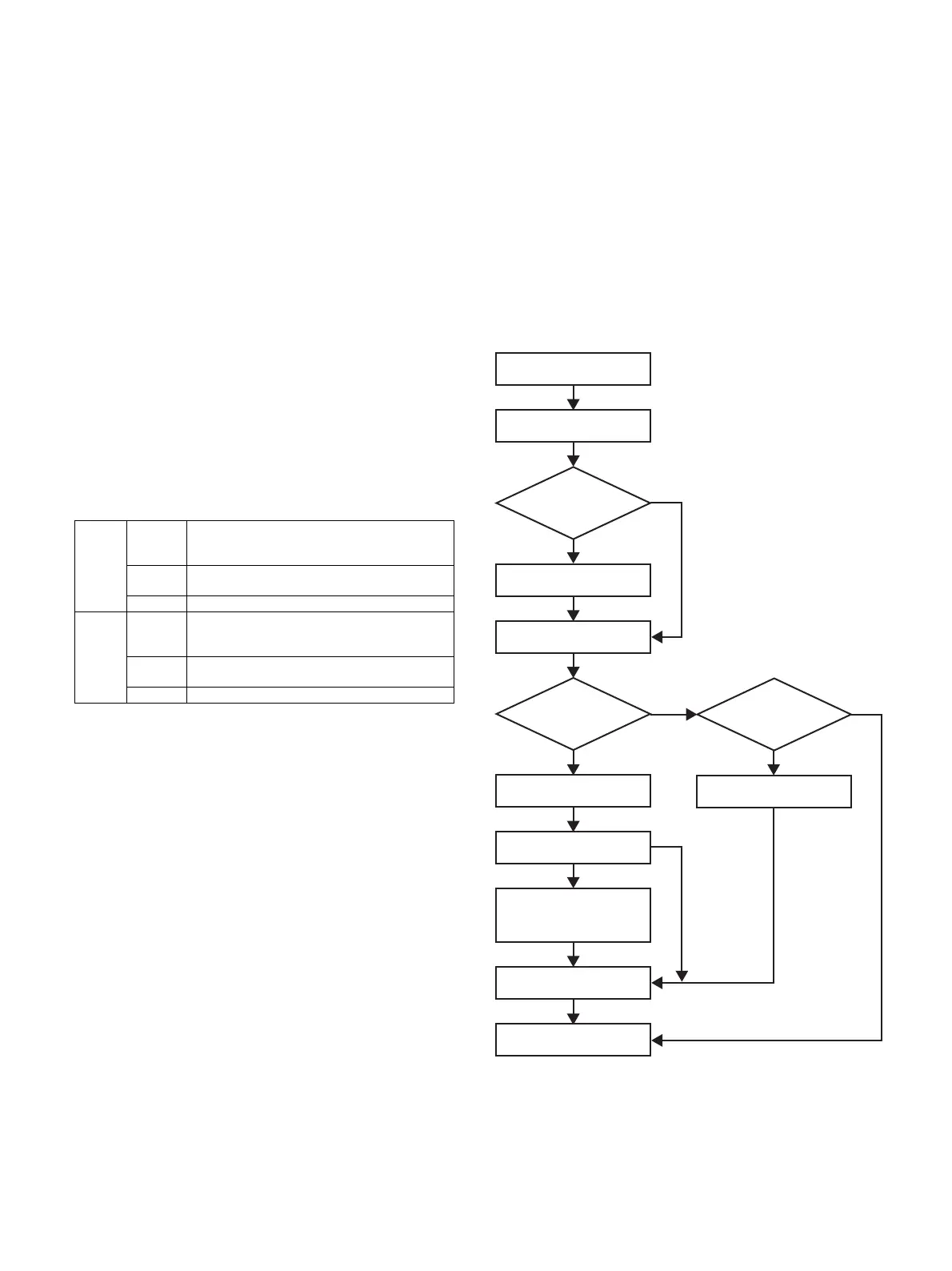

C. Self diag message kinds
The self diag messages are classified as shown in the table below.
D. Self diag operation
The machine always monitors its own state.
When the machine recognizes a trouble, it stops the operation and
displays the trouble message.
A warning message is displayed when a consumable part life is
nearly expired or is expired.
When a warning message is displayed, the machine may be or
may not be stopped.
The trouble messages and the warning messages are displayed by
the LCD and lamp.
Some trouble messages are automatically cleared when the trou-
ble is repaired. Some other troubles must be cleared by a simula-
tion.
Some warning messages of consumable parts are automatically
cleared when the trouble is repaired. Some other warning mes-
sages must be cleared by a simulation.
Class 1 User Warning of troubles which can be recovered by the
user. (Paper jam, consumable part life expiration,
etc.)
Service Warning of troubles which can be recovered only by
a serviceman. (Motor trouble, maintenance, etc.)
Others -
Class 2 Warning Warning to the user, not a machine trouble
(Preliminary warning of life expiration of a
consumable part, etc.)
Trouble Warning of a machine trouble. The machine is
stopped.
Others -
ၑ
Πρήσȟ࠙࣬
Πρήσȟ࠙࣬
൲೪গ
ະၻࡔ֦಺
ΘͼͺΈȪΞΑΠ΋ζϋΡȫ
൝ুࡨ૷౯ιΛΓȜΐ
ٜ
ఞܥેఠ
ક࿍ΩȜΜ࢐۟¦༞ݯ
໘ܦ
ඤယນা
Πρήσ
Πρήσ
࠙࣬
࠙࣬
ZFT
OP
Monitors the machine
conditions.
Detects/analyzes
the content.
Trouble/Warning
Trouble/Warning
Repair
Troubleshoot the cause.
Standby state
The machine is stopped.
The content is displayed.
Warning
Warning
Trouble
No
YES
Trouble
Reset
Replace or supply
the consumable part.
Cancel the self-diagnostic
message with the
diagnostic (test commands).
A consumable
part has reached
its lifetime
