Sharp MX-2314N Service Manual

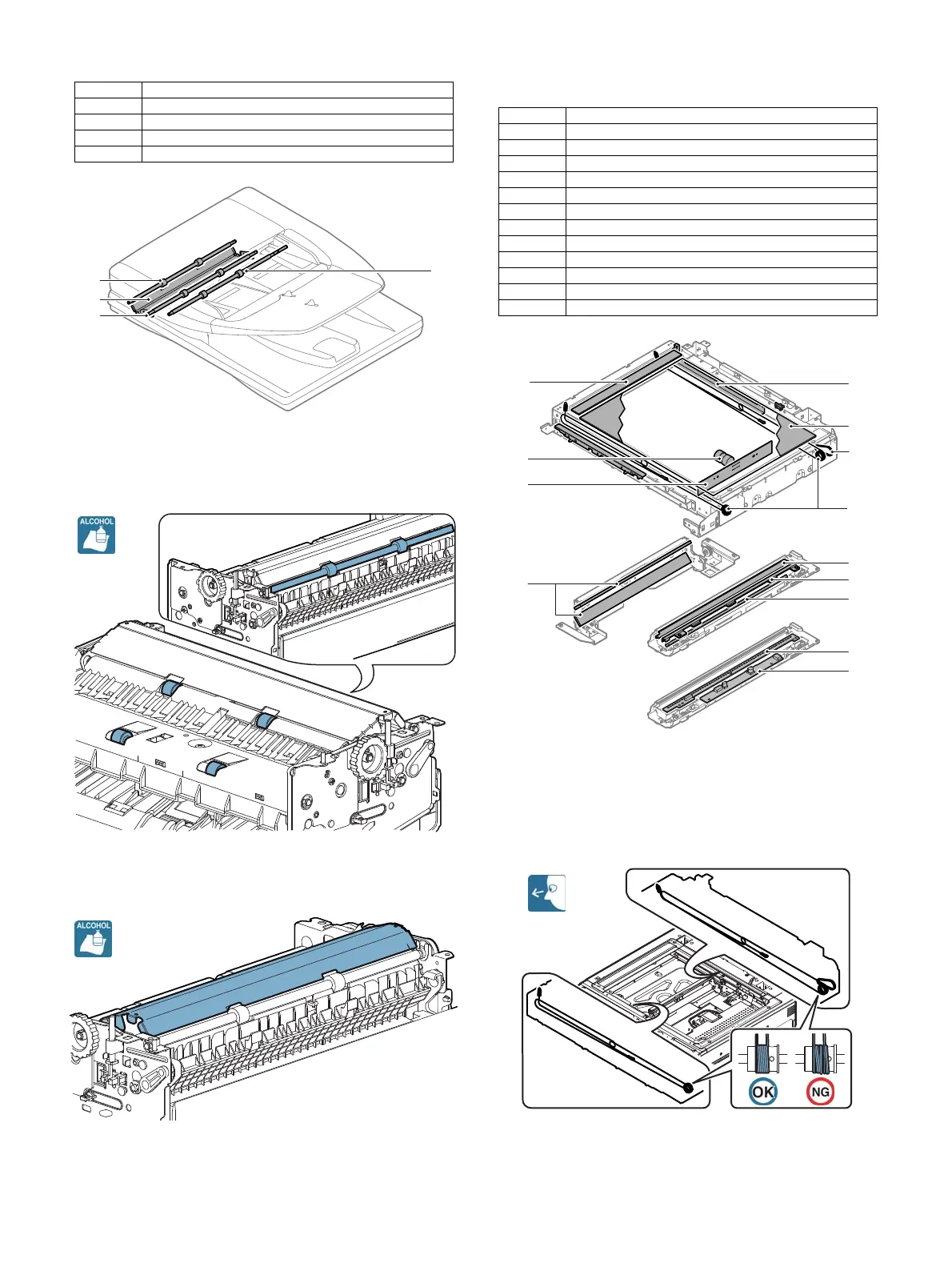

MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 25
(2) RSPF transport unit
a. Transport roller 2, Transport roller 3, Paper exit roller
1) Clean the transport roller 2, the transport roller 3, and the
paper exit roller
b. Scan plate
1) Clean the scan plate.
C. Scanner section
(1) Scanner unit
a. Drive belt, Drive wire
1) Remove the table glass.
2) Check the tension of the drive belt and the drive wire. Check to
confirm that the drive wire in the winding pulley is wound with-
out clearance.
No. Name
1 Transport roller 2
2 Transport roller 3
3 Paper exit roller
4 Scan plate
4
2
1
3
No. Name
1Drive belt
2 Drive wire
3 Rails
4Mirror
5Reflector
6 Scanner lamp
7 Lens
8 CCD
9 Table glass
10 SPF glass
11 LED PWB
12 LED driver PWB
9
1
5
4
6
12
11
3
2
10
7
8
4

Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
