MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 24

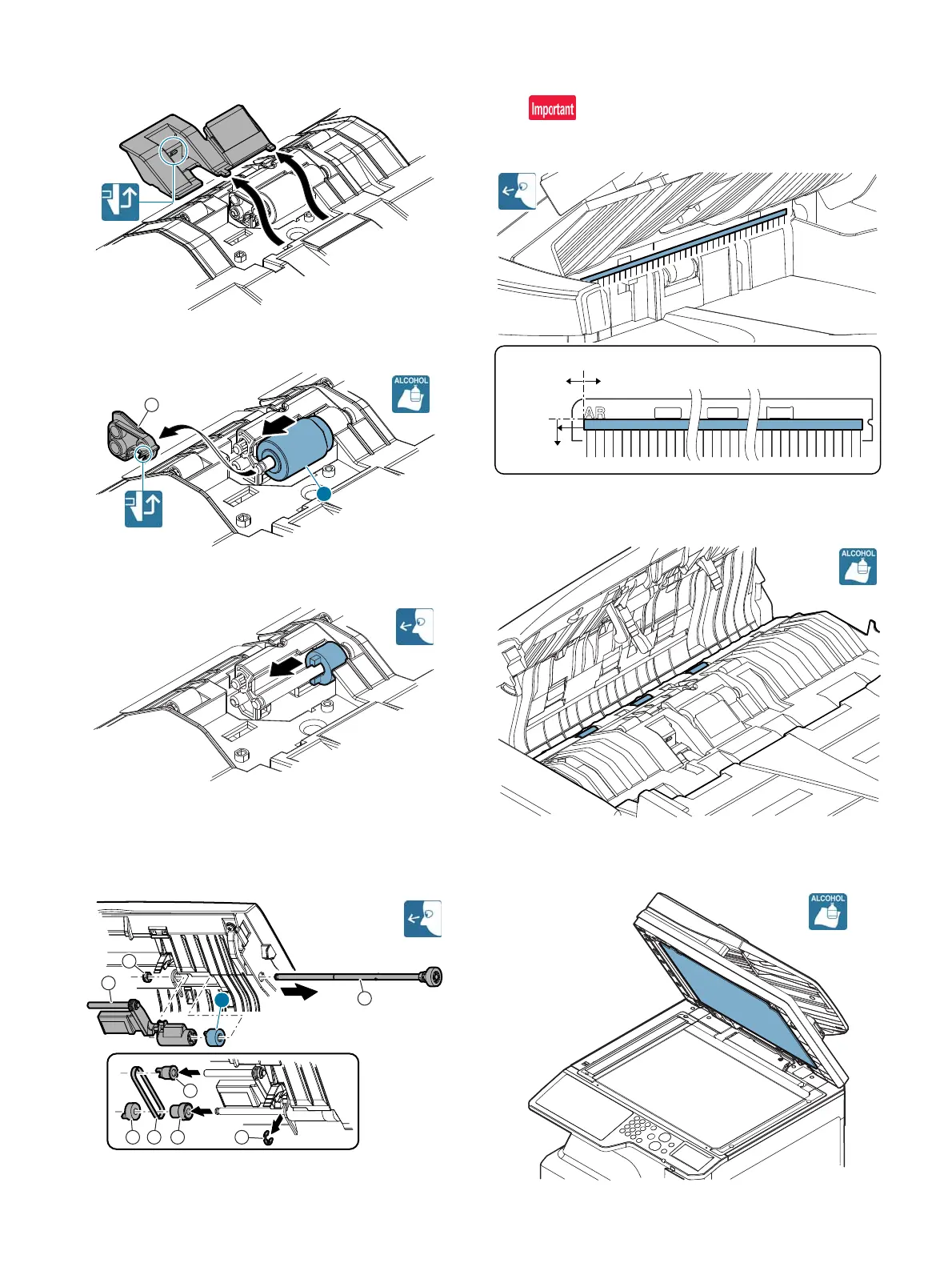

b. Separation roller, Torque limiter SPF

1) Open the paper feed unit, and remove the cover.

2) Remove the holder, and remove the separation roller.

3) Remove the torque limiter SPF.

c. Take-up torque limiter

1) Remove the one-way coupling, the belt, and the pulley.

Remove the E-ring. Pull out the shaft, and remove the bearing,

the holder, and the take-up torque limiter.

d. Discharge brush

1) Open the document tray, and remove the discharge brush.

When replacing the discharge brush, attach a new brush to the

reference.

e. Registration roller

1) Open the paper feed unit, and clean the registration roller.

f. OC mat

1) Open the RSPF unit, and clean the OC mat.

1 2 3 4

Character edge reference

Square

hole

reference

1mm 1mm

0 - 0.5mm
