Sharp MX-2314N Service Manual

MX-3114N DISASSEMBLY AND ASSEMBLY 10 – 22
2. Disassembly and assembly of each
unit

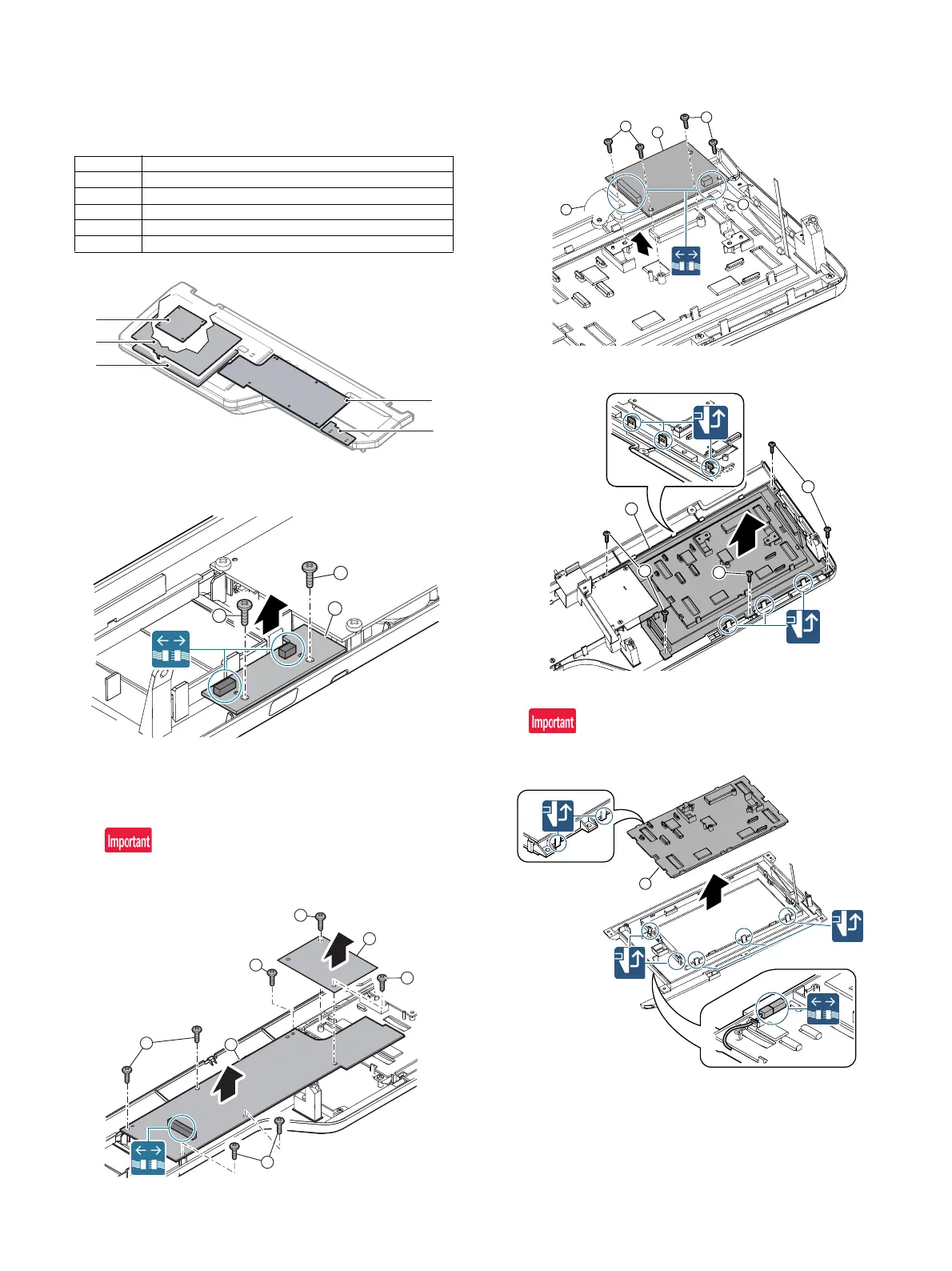

A. Operation panel section
(1) Operation panel unit
a. USB I/F PWB
1) Remove the USB I/F PWB.
b. KEY PWB
1) Remove the Mylar, the earth sheet, and remove the KEY
PWB.
When installing, be careful of the overlapping sequence of the
Mylar and the earth sheet.
c. LVDS PWB, LCD, Touch panel
1) Disconnect the connectors and remove the LVDS PWB.
2) Remove the LCD holder.
3) Remove the holder, and remove the LCD.
Use enough care not to put finger prints on the LCD surface.
No. Name
1 USB I/F PWB
2 KEY PWB
3 LVDS PWB
4LCD
5 Touch panel





2
1
1


















Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
